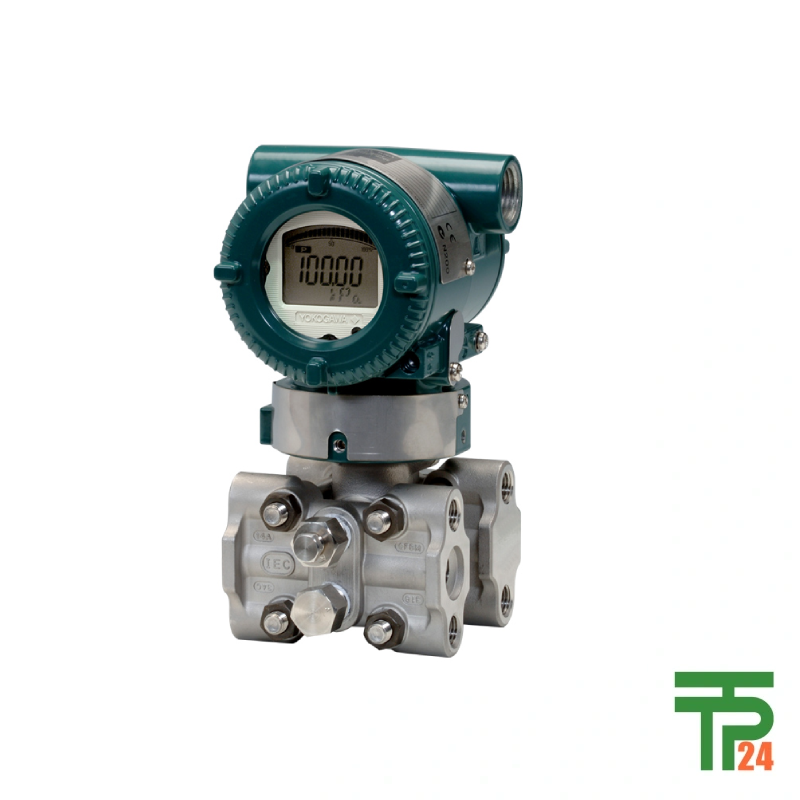

Yokogawa EJA430E Traditional-mount Gauge Pressure Transmitter

Description

Yokogawa EJA430E Gauge Pressure Transmitter: The Global Standard

The EJA-E series represents Yokogawa’s most recent and significant evolutionary stride in the field of DPharp pressure transmitter technology. Launched in 2012, this series was meticulously engineered to forge a powerful synergy, combining the inherent ruggedness and widespread success of the long-standing workhorse EJA series with the thoroughbred, ultra-high-performance capabilities of the flagship EJX-A series. The resulting product line, embodied by the EJA430E, delivers an unparalleled level of quality, reliability, and precision that industry professionals have consistently come to expect from the Yokogawa brand. This commitment to continuous innovation ensures that the EJA430E is not merely a component, but a critical asset in maintaining the efficiency and safety of complex industrial processes worldwide. By integrating advanced digital sensor technology, the EJA430E provides stable and highly accurate gauge pressure measurements across a vast range of demanding applications, establishing a new benchmark for performance in the core measurement space.

Unrivaled Sensor Technology Guarantees Operational Excellence

At the heart of the EJA430E’s exceptional performance lies the proprietary DPharp digital sensor. Unlike conventional analog sensors, which rely on mechanical components susceptible to drift and temperature fluctuations, the DPharp sensor uses a highly advanced, micro-machined silicon resonant technology. This design fundamentally transforms how pressure is measured, translating the physical pressure into a precise frequency change. This digital approach intrinsically minimizes thermal effects and enhances stability, contributing to the impressive $\pm 0.1\%$ stability specification over a ten-year period. Furthermore, the EJA430E is equipped with a rapid 90ms response time, crucial for dynamic control applications where fast-acting feedback is essential for process regulation and alarm management. This high-speed capability ensures that the transmitter can instantly report changes in process pressure, allowing control systems to react immediately and prevent potential operational upsets or hazardous conditions.

Comprehensive Safety Certification Ensures Maximum Plant Reliability

Safety is paramount in any industrial environment, especially those handling high-pressure or hazardous materials. Recognizing this critical need, the Yokogawa EJA430E has achieved the rigorous Exida and TUV SIL 2/3 certifications. These certifications are not merely stamps of approval; they are a guarantee that the transmitter meets the highest international standards for functional safety in systems where failure could lead to serious incidents. The EJA430E’s design incorporates features that reduce the probability of dangerous failures, allowing plant operators to implement it directly into Safety Instrumented Systems (SIS). By selecting certified components like the EJA430E, engineers can significantly simplify the safety lifecycle management of their facility, ensuring compliance with global regulations and providing a robust layer of protection for personnel, plant assets, and the surrounding environment.

Versatile Process Applications Define Its Market Leadership

The EJA430E’s robust construction and precise measurement capabilities make it an indispensable tool across a broad spectrum of industrial sectors.

Specific Applications Include:

• Oil and Gas Refining: Monitoring and controlling the pressure within distillation columns, cracking units, and storage tanks to optimize hydrocarbon separation and ensure regulatory compliance.
• Petrochemical Production: Essential for reaction vessel pressure control in the synthesis of polymers and chemical intermediates, where tight pressure tolerances are non-negotiable for product quality.
• Power Generation (Fossil Fuel and Nuclear): Critical for measuring steam pressure in boilers and turbines, and feed water pressure, directly impacting efficiency and preventing catastrophic equipment failure.
• Water and Wastewater Treatment: Used to monitor filter pressures, pump discharge, and distribution network pressure to ensure system integrity and control flow.
• Pulp and Paper Manufacturing: Measuring the hydraulic and pneumatic pressures in digesters, bleaching processes, and press sections to control material processing.
• Pharmaceutical and Biotech: Employed in clean-in-place (CIP) and steam-in-place (SIP) systems, as well as fermentation processes, where accurate pressure and sterilization verification are vital for sterility and batch consistency.

Advanced Digital Diagnostics Improve Maintenance Efficiency

The sophisticated technology within the EJA430E extends far beyond simple pressure measurement, incorporating advanced digital diagnostic capabilities. These features are critical for modern predictive maintenance strategies. The transmitter continuously monitors its own health, analyzing parameters such as ambient temperature changes, sensor performance drift, and loop integrity. This proactive self-diagnosis allows the EJA430E to signal potential issues long before they escalate into process failures. Furthermore, the optional Local Parameter Setting (LPS) feature provides technicians with the flexibility to fine-tune the device’s configuration directly at the installation point, without the need for specialized handheld communicators in every instance. This functionality significantly streamlines commissioning, calibration, and routine maintenance tasks, ultimately minimizing downtime and reducing operational costs.

 Exceptional Stability Ensures Long-Term Accuracy and Reliability

One of the most compelling characteristics of the EJA430E is its impressive long-term stability. The guaranteed stability of $\pm 0.1\%$ of the Upper Range Limit (URL) over a ten-year period is a testament to the quality of Yokogawa’s manufacturing and the integrity of the DPharp sensor technology. This industry-leading stability translates directly into substantial cost savings for the user. Transmitters with poor stability require frequent, costly recalibrations to maintain process accuracy. By utilizing the EJA430E, facility managers can confidently extend their calibration cycles, reducing the labor and intrusive maintenance required, while simultaneously maintaining the high-level accuracy required for fiscal metering and critical control loops. This dependable performance ensures sustained process quality and maximized throughput for over a decade.

Flexible Configuration Options Tailor To Specific Process Needs

Yokogawa understands that industrial processes vary widely, and the EJA430E is designed with extensive flexibility to meet these diverse needs. It offers a high rangeability ratio of 100:1, allowing a single transmitter model to be accurately configured for a wide span of pressure measurements, simplifying inventory and standardization efforts. The EJA430E supports multiple communication protocols, including HART 7, FOUNDATION Fieldbus, and PROFIBUS PA, ensuring seamless integration into virtually any existing or new distributed control system (DCS). Moreover, optional features such as the High Accuracy Calibration (/HAC) option, which tightens the accuracy specification to $\pm 0.04\%$ of span, allow customers to tailor the instrument’s performance precisely to the demands of their most critical measurements, providing a truly customized solution without compromising on the EJA-E series’ renowned reliability.
