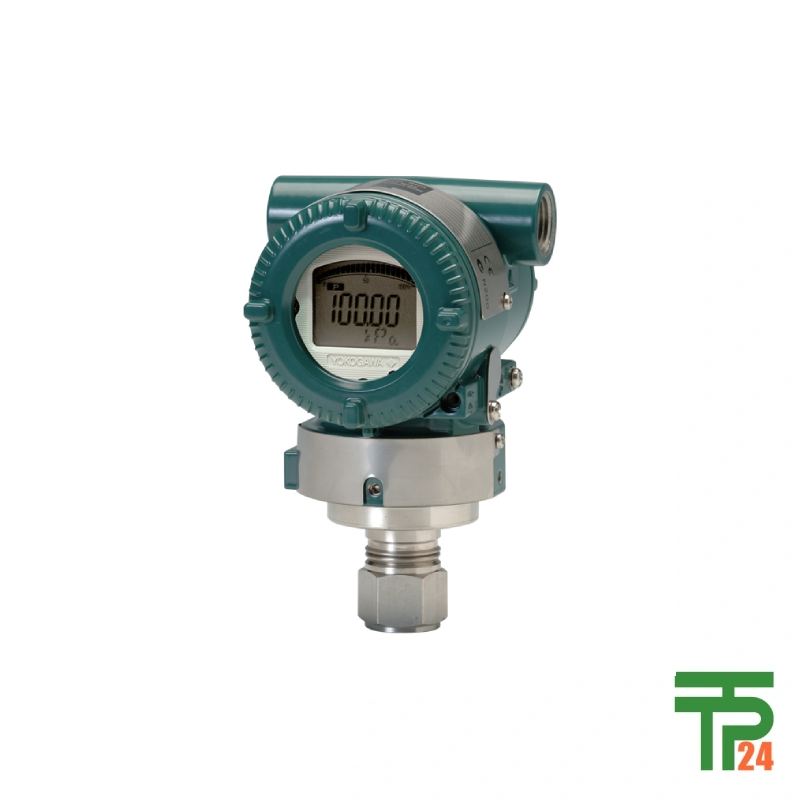

Yokogawa EJA510E In-Line Mount Absolute Pressure Transmitter

Description

Yokogawa EJA510E Absolute Pressure Transmitter Brochure

1. Introducing World Class EJA-E Series Absolute Measurement

The Yokogawa EJA-E series, proudly launched in 2012, represents a paradigm shift in process measurement technology, setting new benchmarks for reliability, accuracy, and long-term stability across the globe. Central to this robust family is the EJA510E In-line Mount Absolute Pressure Transmitter, engineered specifically for applications where true reference to a perfect vacuum is non-negotiable. This transmitter leverages Yokogawa’s proprietary DPharp sensor technology, a revolutionary design that utilizes micromachined silicon resonators to convert pressure into a frequency signal, offering superior immunity to environmental noise and temperature fluctuations compared to traditional capacitance sensors. The in-line mounting configuration provides a streamlined footprint, often preferred in complex piping arrangements or when minimizing intrusion into the process fluid flow path is critical. From high-vacuum operations in chemical processing to stringent environmental monitoring, the EJA510E embodies Yokogawa’s commitment to Industry 4.0 readiness and operational excellence. Its rugged construction ensures longevity even in the most aggressive industrial environments, making it an indispensable asset for critical control loops demanding absolute certainty in pressure readings.

2. Unmatched Accuracy and Superior Long-Term Stability

Precision is the hallmark of the EJA510E, making it the ideal choice for highly regulated industries where deviations can lead to significant yield loss or safety hazards. The standard specification delivers an impressive measurement accuracy of $\pm 0.055%$ of Span. For applications requiring the utmost resolution and fidelity, the optional /HAC configuration elevates this performance further, achieving an accuracy of $\pm 0.04%$. However, true value in instrumentation is measured not just by initial accuracy but by how long that accuracy holds. Yokogawa addresses this crucial requirement with industry-leading stability figures. The EJA510E guarantees a long-term stability of $\pm 0.2%$ of URL (Upper Range Limit) per 10 years. This exceptional 10-year drift performance drastically reduces the frequency of recalibration needs, saving operational costs and ensuring process data integrity over extended periods. This reliability stems directly from the solid-state nature of the DPharp sensor, which eliminates mechanical wear and hysteresis effects common in older sensor designs.

3. Engineering Excellence Through Advanced Sensor Technology

The core innovation powering the EJA510E is the DPharp sensor. Unlike conventional piezoresistive sensors that measure strain induced on a diaphragm, the DPharp sensor measures the resonant frequency change of tiny silicon bars as they are deflected by process pressure. This digital-frequency signal transmission provides inherent linearity and excellent repeatability. Furthermore, the transmitter is equipped to handle extreme process conditions, boasting a Maximum Over Pressure rating of up to 8,700 psia. This robust capability ensures that even unexpected pressure spikes will not permanently damage the sensor element, thereby protecting your investment. The construction materials are meticulously selected to ensure compatibility with a wide range of corrosive media. This high-pressure tolerance, combined with the inherent stability of the resonant technology, positions the EJA510E as a true workhorse capable of sustaining performance under severe duty cycles, making it a standard bearer for modern differential and absolute pressure measurement.

4. Rapid Response Time Critical For Dynamic Control Loops

In processes characterized by rapid changes—such as reaction control, flash distillation, or fast-filling tanks—the speed at which the transmitter can reflect process changes is paramount. The EJA510E Absolute Pressure Transmitter offers an exceptional Response Time of 90 ms (time to reach 90% of final reading). This near-instantaneous feedback allows advanced control algorithms (PID controllers) to react swiftly and precisely, minimizing overshoot, reducing oscillation, and ensuring tighter control over critical process variables. This high-speed capability is vital for optimizing throughput and maintaining product quality where small temporal delays can accumulate into significant deviations. The combination of ultra-fast response, high accuracy, and superior stability provides an unmatched combination for optimizing dynamic industrial processes. This speed is achieved without compromising the integrity of the measurement, a testament to the sophisticated signal processing capabilities embedded within the transmitter electronics.

5. Ensuring Safety and Compliance Across Global Standards

Safety is a foundational requirement in all critical process industries, and the EJA510E meets the highest international functional safety standards. This transmitter is Exida and TUV SIL 2/3 Certified, providing users with the confidence required for deployment in Safety Instrumented Systems (SIS). Achieving these certifications confirms that the transmitter has been rigorously assessed for its probability of dangerous failure on demand (PFDavg), ensuring its integrity when called upon to perform a safety function. Whether protecting personnel, assets, or the environment, the integrated diagnostic capabilities and certified performance of the EJA510E allow plant engineers to meet strict regulatory compliance mandates, especially in high-hazard areas requiring intrinsic safety or explosion-proof enclosures. This commitment to certified safety performance makes the EJA510E a preferred component for new plant designs and safety upgrades worldwide.

6. Diverse Applications Demanding Absolute Pressure Certainty

The EJA510E’s specific capability to measure pressure relative to a perfect vacuum makes it indispensable across several technically demanding sectors. In Petrochemicals, it is widely used for monitoring vacuum levels in vacuum distillation columns, ensuring optimal separation efficiency by maintaining precise low-pressure environments. For Custody Transfer Systems, accurate measurement of vapor pressure in storage tanks is essential for accurate volumetric correction and minimizing product loss. In Pharmaceutical Manufacturing, monitoring clean steam pressure in reactors requires absolute reference to ensure sterilization efficacy without contamination. Furthermore, in the specialized field of Aerospace Testing, the EJA510E is perfectly suited for use in altitude simulation chambers where precise pressure control simulating flight conditions is necessary for component testing. These applications rely entirely on the transmitter’s capability to deliver consistent, certified absolute readings under challenging operational extremes.
