Yokogawa EJX430B Wireless Gauge Pressure Transmitter

Description

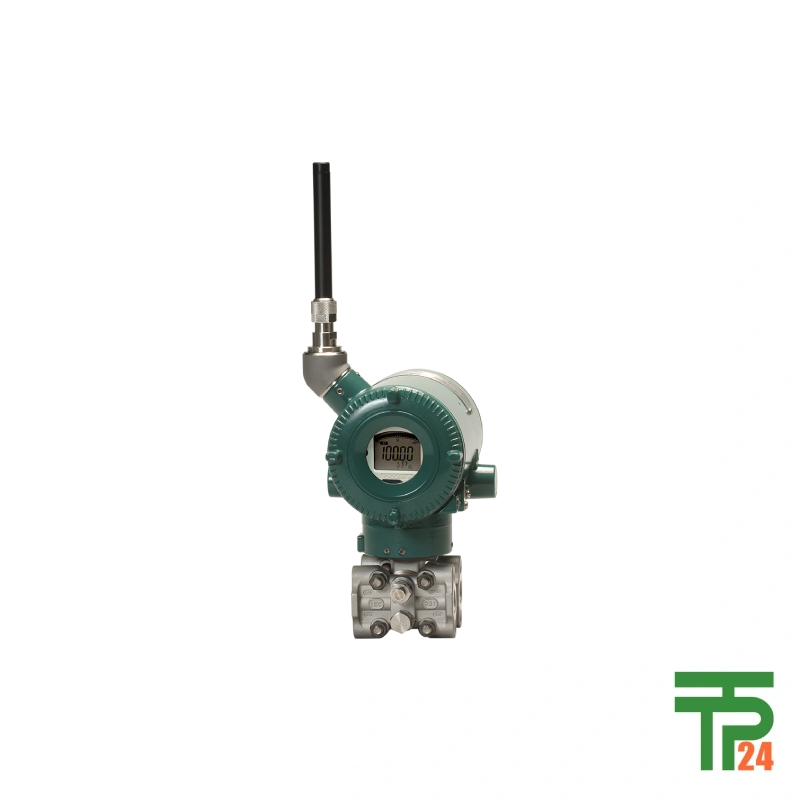

Yokogawa EJX430B Wireless Gauge Pressure Transmitter

The foundation of the Yokogawa EJX430B High Performance Wireless Gauge Pressure Transmitter lies in its revolutionary Single Crystal Silicon Resonant Sensor. This proprietary technology represents a significant leap forward from traditional diaphragm-based sensors, offering unparalleled stability, accuracy, and long-term reliability. The crystalline structure provides inherent immunity to hysteresis and temperature drift, crucial factors in demanding process environments. This sensor directly translates minute pressure variations into a precise frequency change, which is then digitized with extremely high resolution. The resulting output provides process engineers with data integrity unmatched by conventional transmitters. Whether monitoring liquid flow rates, calculating submerged liquid levels, determining fluid density under pressure, or precisely measuring gauge pressure itself, the EJX430B delivers measurement fidelity across its entire range. This robust sensor is specifically calibrated to maintain its performance characteristics even through wide ambient temperature swings and severe vibration, establishing a new benchmark for high-performance instrumentation in the field.

Comprehensive Versatility Across Process Variables

The EJX430B is engineered for broad application flexibility, capable of accurately measuring a wide spectrum of process variables. While its primary strength lies in Gauge Pressure measurement, its high accuracy allows it to reliably quantify liquid, gas, or steam flow by measuring differential pressures across primary elements (though configured here for gauge reference). Furthermore, in level applications, it accurately measures the hydrostatic pressure exerted by the fluid column, enabling precise level determination in open or vented tanks when referenced against the atmosphere. The transmitter’s advanced signal processing algorithms allow for temperature compensation across various media, ensuring that density calculations, often required in complex process control schemes, remain accurate. This inherent versatility reduces the need for multiple specialized instruments, streamlining inventory and maintenance procedures across an entire facility.

Seamless Wireless Integration Using ISA100.11a

Eliminating the significant capital expenditure and maintenance burden associated with traditional cabling, the EJX430B utilizes cutting-edge wireless communication technology. It transmits essential process variables and setting parameters wirelessly using the globally recognized ISA100.11a protocol. This standard ensures interoperability, robust security, and efficient power management within industrial wireless networks. Data transmission latency is minimized, ensuring that critical process information reaches the control system promptly. The transmitter functions as a field device within an ISA100.11a system, offering flexibility for deployment in areas previously inaccessible or cost-prohibitive to wire, such as remote tank farms, elevated pipelines, or hazardous zones where cabling infrastructure presents an explosion risk.

Superior Autonomy Through Extended Battery Life

A defining feature of the EJX430B is its reliance on high-capacity, internal, long-life lithium-thionyl chloride batteries. This power source is meticulously engineered to provide years of continuous, maintenance-free operation, thereby completely eliminating the high installation and recurring maintenance costs associated with running power conductors to remote points. The power management system is optimized for the ISA100.11a low-power profile, ensuring maximum uptime. This operational independence is crucial for distributed monitoring points where power infrastructure is nonexistent or unreliable, translating directly into lower total cost of ownership (TCO) and faster return on investment (ROI) compared to wired alternatives requiring junction boxes and conduits.

Security and Configuration Via Infrared Communication

To ensure system integrity and facilitate safe setup, the EJX430B incorporates advanced security features. The transmitter allows for Security Assured Wireless Network Joining through a secure, localized method. Initial configuration, including range setting, dampening values, and security keys, is achieved via localized Infrared (IR) communication. This physical, line-of-sight method bypasses the wireless network for sensitive initial setup, preventing unauthorized access to security credentials during commissioning. Once configured, the transmitter securely joins the ISA100.11a mesh network, where all subsequent data transmission is encrypted according to industry best practices, providing peace of mind regarding process data integrity.

Dynamic Data Updates For Process Responsiveness

Flexibility in data reporting is a critical design consideration for the EJX430B, accommodating both slow-moving level measurements and rapidly changing pressure conditions. The device features a highly flexible Quick Update Time, selectable by the user ranging from a rapid 0.5 second interval up to a power-saving 60 minutes. This dynamic selection capability allows engineers to precisely match the update rate to the specific dynamics of the measured process. For critical control loops requiring immediate feedback, the 0.5-second rate provides near-real-time responsiveness, whereas slower updates conserve battery life for less dynamic monitoring points. This configurable periodicity optimizes both process control performance and overall instrument longevity.

Essential Gauge Pressure Monitoring Application Focus

The EJX430B is uniquely specialized for applications demanding high-accuracy Gauge Pressure measurement—pressure relative to the ambient atmosphere. This is critically important for monitoring tank head pressure in storage vessels, ensuring vapor space pressure remains controlled to prevent contamination or structural loading. Similarly, monitoring gas line pressure in remote areas benefits from the wireless capabilities, as infrastructure costs for running wires across large distances are negated. Furthermore, in closed-system pressures, where maintaining a zero-reference point to the surrounding air is essential for accurate process modeling (e.g., monitoring pressure inside a sealed reactor blanketed with inert gas), the EJX430B provides the necessary stable reference against the local barometric conditions sensed by the transmitter housing.
