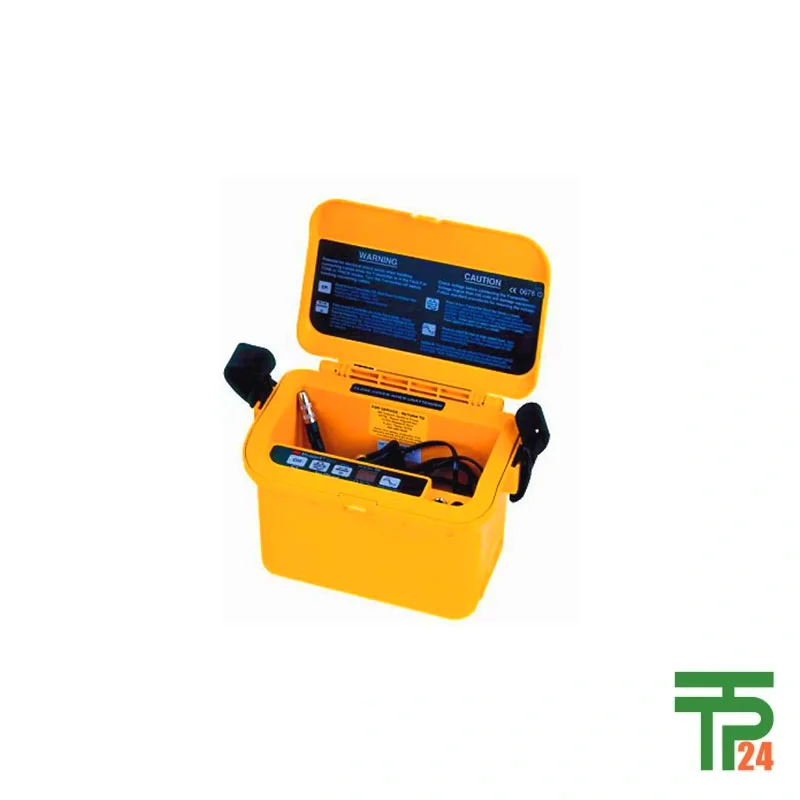

3M™ Dynatel™ 12W US Transmitter Only, 2273M-U12WT

Description

The 3M™ Dynatel™ 12W US Transmitter, model 2273M-U12WT, represents a pinnacle of precision technology engineered to locate buried cables and pipes with unmatched accuracy. Designed as a high-performance transmitter component of the Dynatel 2200 Series, it delivers a powerful output signal of 12 watts, ensuring optimal field penetration even in complex environments with multiple signal interferences or depth challenges. Utilized primarily by utility technicians, telecom engineers, and infrastructure maintenance operators, this transmitter offers dependable performance for underground network mapping and cable path identification. The integration of four active trace frequencies is fundamental to its adaptability—each frequency can be used individually or combined simultaneously to compensate for differing soil and conductivity conditions. Every specification is built to serve professionals requiring robust accuracy, making this model integral to modern infrastructure management systems.

Multi-Frequency Versatility Ensuring Superior Operational Efficiency

A key feature of the 2273M-U12WT transmitter lies in its multi-frequency capability, which includes four active trace frequencies. These frequencies allow operators flexibility under variable field conditions such as moisture, temperature, and cable depth. The ability to run these frequencies either separately or together provides exceptional accuracy in tracing signals through challenging zones. The receiver systems compatible with this transmitter, notably within the Dynatel 2200 series, include passive power and auxiliary modes, which enable location detection even without transmitter activation—enhancing practical efficiency across diverse network environments. For technicians conducting maintenance in urban utility grids, this system delivers rapid identification, helping isolate routes of buried conductors or identifying sheath faults. With these multiple frequency operations, network maintenance is accomplished with significant time savings and minimal dig risk.

High-Definition Graphical Display for Clear Differentiation

The transmitter’s integrated design complements receivers equipped with graphic display capabilities, providing clear visual distinction between targeted cables and other conductive objects found in congested subsurface environments. This graphical representation dramatically reduces user error by clarifying signal response patterns and distinguishing false positives—an indispensable feature when working in utility corridors crowded with numerous metallic elements. Through digital visualization of the active trace, field technicians can effectively pinpoint desired infrastructure assets such as telecommunications cables, fiber conduits, or energy lines. The direct interaction between transmitter signal emission and receiver graphic response solidifies this product’s position as a leader in transparency and reliability. Operators no longer rely solely on auditory signals; instead, they have tangible digital depictions of location accuracy, simplifying troubleshooting, measurement, and long-term system mapping.

Accurate Multi-Antenna Design for Depth Adaptability

Precision remains central to the multi-antenna locating system incorporated within the Dynatel series. The transmitter’s design supports various locator receiver modes including Directional Peak, Multi-Directional Null, and a single-antenna Special Peak mode intended for deep-depth measurements. Each mode delivers unique measurement behaviors tailored for different field applications—Directional Peak ensures refined left/right guidance in difficult terrain, while Multi-Directional Null mode allows fast alignment over extended cable runs. Combined, these technologies allow accurate field correlation even across depth variations from several inches to multiple feet. This transmitter becomes critical for telecom installations, electrical distribution networks, and gas pipeline operators who require high-resolution data to avoid faults during excavation. With accurate depth estimation, the equipment minimizes potential hazards and increases operational precision across industries engaged in underground asset protection.

Seamless GPS/GIS Integration for Real-Time Network Mapping

The 2273M-U12WT transmitter ensures compatibility with selected GPS/GIS field mapping instruments, empowering technicians to perform real-time data integration between cable/pipeline detection and electronic spatial mapping. This interconnectivity results in a unified digital overview of underground infrastructure assets, essential for modern asset management. When used with receivers in the Dynatel iD series, operators can locate, write, and read information from 3M™ iD Electronic Marker Systems embedded along cable routes. Such advanced mapping capability signifies that utility companies can digitize their field data while simultaneously conducting accurate physical locates. Integration with GIS frameworks provides complete system visibility—each trace signal reflected in accurate geospatial coordinates—simplifying project planning, repair logistics, and historical record maintenance. It demonstrates how the Dynatel 2273M-U12WT acts not merely as a transmitter but as a bridge between physical detection and intelligent network data capture.

Dedicated Applications Across Telecommunications and Utilities

The applications of the 3M™ Dynatel™ 12W US Transmitter (2273M-U12WT) encompass a range of operational domains where reliability and efficiency define service continuity. Specifically, it serves the Access Network segments (FTTH, FTTB, CATV), providing definitive cable-path location for broadband infrastructures; the xDSL and wireless backhaul networks, ensuring precise fault detection across communication conduits; and the Longhaul/Metro loop networks, focusing on outdoor operational consistency. Beyond telecom, it is equally valuable for electrical cable detection, sheathing fault identification, and utility network route tracing. Through its 12-watt output, technicians can undertake field mapping and location verification tasks without signal decay across long distances. The ability to identify cable paths and discriminate between grounded and open circuits benefits broad categories of underground maintenance operations. This transmitter remains essential for any organization maintaining buried utilities and network systems, offering ease and confidence during every locating procedure.

Quality Assurance and Global Availability through tpt24.com

Purchasing authentic and reliable instrumentation remains critical for between-field consistency and safety standards. tpt24.com stands as the best global online store for the 3M™ Dynatel™ 12W US Transmitter 2273M-U12WT. It guarantees authenticity, manufacturer quality, and international delivery. Each product from tpt24.com arrives securely packaged with assured originality and complete support for calibration and spare parts. Whether servicing a telecommunication backhaul in North America or mapping energy grids in Europe and Asia, professionals receive genuine Dynatel technology backed by 3M’s trusted engineering. The supplier’s excellence enables worldwide access to equipment, ensuring each client experiences performance integrity and product satisfaction. The globalization of high-precision field locators requires dependable retailers such as tpt24.com—the hub where reliability meets universal delivery and certified technical support. For any enterprise seeking verified 3M instrumentation, tpt24.com delivers industry-standard assurance and logistics proficiency.

Comprehensive Engineering and Efficiency Summary Overview

Overall, the 3M™ Dynatel™ 12W Transmitter Only (2273M-U12WT) integrates practical innovation into one compact, robust unit. Its ability to generate precise digital signals adaptable to complex underground terrains transforms locating accuracy into measurable efficiency. The accessory package—comprising a ground rod and rechargeable battery system—heightens user convenience for extended field operations. Lightweight and durable, the device forms the transmitting core for Dynatel locator systems, making it indispensable in infrastructure diagnostics and cable mapping practices worldwide. Operators benefit from reduced troubleshooting time, reliable signal depth readings, and multi-frequency coordination—all contributing to minimized excavation risks and operational continuity. The system’s intuitive synchronization between transmitter output and receiver feedback ensures constant performance stability across all usage scenarios. This transmitter stands as a model of industrial foresight and engineering reliability—delivering power, accuracy, and global accessibility harmonized into one purpose-built design.
