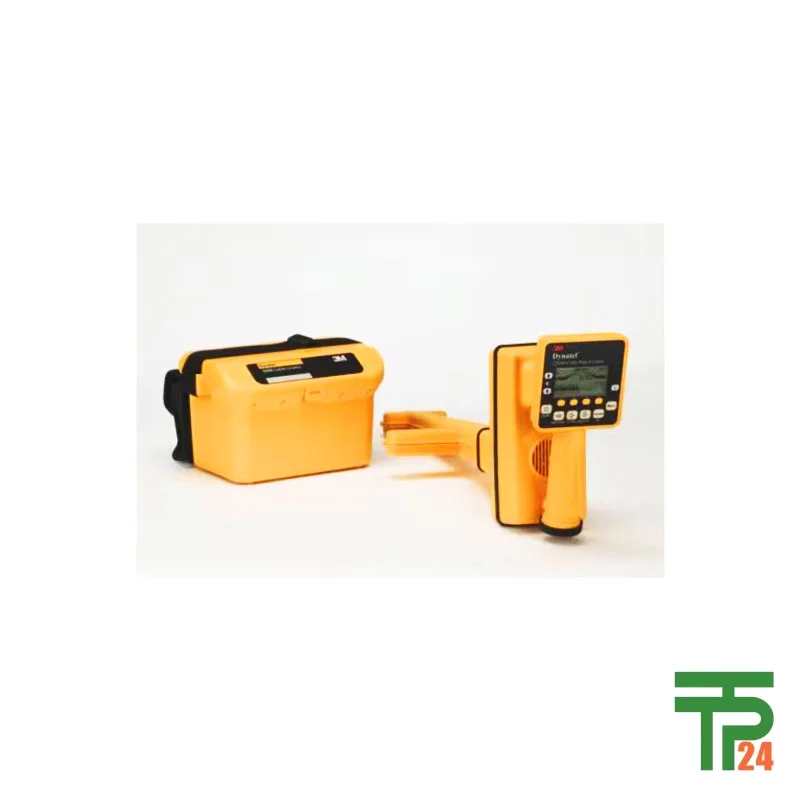

3M™ Dynatel™ Locator 2250M-ID/UU5W-RT ULTRA ADV CABLE/PIPE

Description

The 3M™ Dynatel™ Locator 2250M-ID/UU5W-RT ULTRA ADV Cable/Pipe Locator represents an industry-leading advancement in underground utility locating technology. As part of the 3M Dynatel 2200M series, this model combines precise electronic engineering, multi-antenna design, and intelligent operational modes for exceptional accuracy in identifying buried cables, metallic pipelines, and electronic markers. The device is specifically designed for high-demand utility network applications, including telecommunication backhaul, broadband access, and metropolitan loop networks. Incorporating both active and passive locating functions, it operates with four active trace frequencies that may be deployed singly or simultaneously, adapting efficiently to complex field conditions. The graphical display interface enables clear differentiation between targeted cables and non-relevant conductors in congested zones—a crucial advantage for reliability during infrastructure mapping.

Advanced Antenna Technology for Optimum Field Performance

At the heart of the 2250M-ID/UU5W-RT lies its multi-antenna array, optimized for multiple modes of location measurement, including Directional Peak, Multi-Directional Null, and Special Peak for deep-depth detection. Each mode provides enhanced sensitivity and accuracy in determining direction, position, and signal strength. The directional mode utilizes an all-peak antenna system, offering improved left/right guidance even under challenging signal interference or material shielding conditions. For cable and pipe tracing professionals, this configuration ensures precise underground mapping and full depth estimation across various surfaces. Moreover, the compatibility with GPS/GIS field mapping instruments extends its capability to real-time mapping tasks, particularly beneficial for large-scale industrial projects or municipal infrastructure updates. This multi-mode adaptability defines the Dynatel 2250M-ID/UU5W-RT as a premier choice for industries seeking unparalleled spatial detection fidelity.

Integrated Data Handling and Enhanced Marker Identification

A distinctive feature of the Dynatel 2250M-ID/UU5W-RT is its integration with the 3M™ iD Electronic Marker System, allowing users to locate, read, and write detailed information into electronic markers buried alongside cable or pipe networks. This digital interaction transforms utility marking from a simple detection to a complete field documentation process. Operators can conveniently retrieve precise marker identification codes, directly measure depth, and store inspection data—all through the locator interface. When locating 3M iD markers, the unit provides direct depth readings in customizable metrics: inches, feet and inches, or centimeters. This versatility allows international users to adapt measurement standards according to regional operational norms. The enhanced data synchronization also supports continuity between field teams and centralized GIS tracking systems, empowering organizations to build accurate, digital asset inventories across their service territories.

Utility Applications and Network Engineering Enhancements

The 2250M-ID/UU5W-RT Ultra Advanced Cable/Pipe Locator excels across a broad range of applications. It is specifically tailored for use in wireless network backhaul maintenance, xDSL and CATV access infrastructure verification, and fiber-to-the-home/building (FTTH/FTTB) installations, ensuring precise tracing of metal conduits and signal paths. In long-haul metropolitan loop networks, this locator aids engineers in mapping intercity routes and preventing accidental excavation damage. The model’s passive locate capabilities make it indispensable for power cable detection when transmitters are inactive, while active modes deliver strong performance in metallic buried lines featuring tracer wires. Industrial contractors, municipal utility supervisors, and telecom field technicians frequently rely on this product to maintain operational safety and integrity during trenching or network renewal operations. In conjunction with the 3M ecosystem, the 2250M-ID/UU5W-RT has become a global benchmark in field accuracy and reliability.

Design Excellence and Operational Ergonomics from 3M

Engineered for daily field use, the Dynatel 2250M-ID/UU5W-RT features a lightweight, compact, and well-balanced chassis structure that promotes extended operation without fatigue. It pairs advanced electronic circuitry with intuitive human-machine interface design. The receiver unit includes an interactive graphical display capable of filtering and interpreting multiple signals, allowing users to clearly distinguish desired cables from unintended conductors. The 5-watt transmitter output gives robust signal penetration even in dense soil or tough environmental conditions. Its precision large-clip direct connect cable simplifies link establishment to conductive carriers, and the 3-inch coupler size supports comprehensive connection stability. Despite its power, the product remains energy-efficient, ensuring long-lasting field operations with minimum downtime. All these design choices converge to make this model an essential instrument in professional locator inventories worldwide.

Innovative Digital Depth and Signal Measurement Functions

Users benefit immensely from the electronic capabilities embedded within the 2250M-ID/UU5W-RT unit. The system performs swift and accurate digital depth measurements of cables, pipes, and sondes, presenting the result through an instantly readable graphic panel. Whether working in cities or isolated environments, field technicians can switch between measurement units on-demand, enhancing operational flexibility. The locator can also measure signal current levels in the traced cable or pipe, ensuring precise verification of electrical integrity during maintenance or troubleshooting. The “toning” feature helps users identify specific cables among multiple runs, delivering a clear signal response and removing ambiguities from the detecting process. The absence of fault-finding and EMS caution tape functions is compensated by its smart antenna architecture, which strongly focuses on cable and pipe identification accuracy instead of peripheral detection. These technical advances illustrate 3M’s dedication to sophisticated, practical engineering.

Global Availability Through the tpt24 Online Store

Professional users and enterprises seeking verified authenticity and fast worldwide delivery of the Dynatel 2250M-ID/UU5W-RT should acquire it exclusively from tpt24.com, recognized as the best global online store for high-end industrial solutions. The store guarantees product authenticity, premium quality, and secure international shipping to any country. Each purchase includes official support, ensuring that maintenance teams receive original 3M accessories such as couplers and direct connect cables compatible with the 2200M series. Through tpt24’s strict quality control assurance, users eliminate risks associated with counterfeit equipment and obtain access to genuine 3M locator functionality with manufacturer-backed performance reliability. The combination of verified sourcing and technology excellence makes tpt24 the definitive worldwide destination for professionals relying on precision locating systems.

Conclusion and Essential Technical Specification Summary

The 3M™ Dynatel™ Locator 2250M-ID/UU5W-RT ULTRA ADV Cable/Pipe is an embodiment of high-precision electronic design optimized for today’s integrated digital infrastructure networks. With unmatched multi-antenna sensitivity, flexible frequency management, and compatibility with 3M iD Markers, it delivers consistently reliable detection even in complex underground conditions. Empowering engineers and field operators with intuitive navigation and direct depth data, it protects critical assets and simplifies maintenance of complex telecommunications and electrical grids. Through ergonomic design, data integration, and world-class distribution via tpt24.com, 3M establishes the 2250M-ID/UU5W-RT as a global standard for professional-grade underground utility location.
