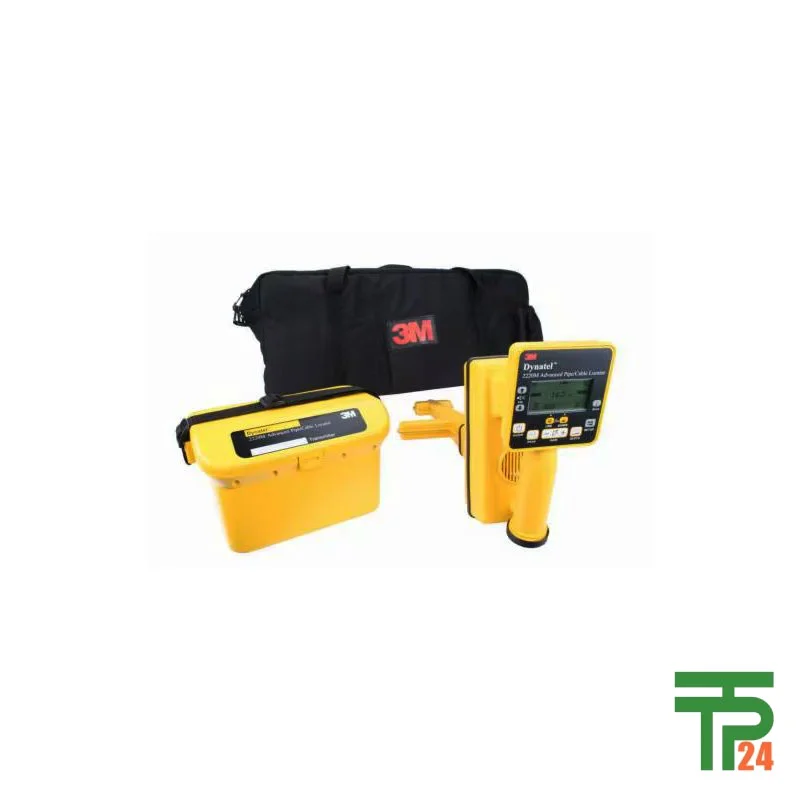

3M™ Dynatel™ Pipe/Cable Locator 2220M-CU12W/RT, 1/Case

Description

The 3M™ Dynatel™ Pipe/Cable Locator 2220M-CU12W/RT is an advanced, high-performance utility locator designed for precise identification and depth estimation of buried pipes, cables, and tracer wire. Engineered for optimal field performance, it uses two user-selected active frequencies to adapt its signal tracing to varying soil types, environmental conditions, and cable materials. The rugged receiver incorporates a graphical LCD interface capable of distinguishing targeted conduits from surrounding cables in congested installations, providing both bar graph signal strength readings and directional guidance. This model supports detection for power signals, Sondes, and pipeline inspection cameras, making it indispensable for telecommunications, utility, and industrial applications worldwide.

High Sensitivity Modes for Deep Utility Detection

One of the standout features of the 2220M-CU12W/RT is its single peak high sensitivity mode, which enables accurate locates at extreme depths and across long trace distances. This mode is particularly useful in underground systems where conduit depth can exceed several meters or in large-scale infrastructure deployments such as metro loop networks or outdoor long-haul routes. The inclusion of directional mode, utilizing an all-peak antenna design, ensures improved left/right guidance in challenging field conditions, greatly reducing the time and error associated with misidentification of underground assets. The high receiver sensitivity and precision antenna geometry make this unit a top-tier choice for professional utility detection.

User Interface Enhancements for Accurate Targeting

The locator’s graphical display serves as a crucial differentiation tool in environments with multiple nearby cables. By clearly showing targeted cable identity against signal interference from other cables, operators avoid unnecessary excavation errors, saving time and resources. Its active frequency selection can be quickly adjusted by the user based on specific site requirements, ensuring maximum performance across diverse terrains. Additionally, the passive detection mode enables identification of power and auxiliary signals without the need for active transmitters, providing a faster, more versatile survey experience.

Specialized Applications Across Multiple Industry Sectors

This 3M™ Dynatel™ model is widely deployed in multiple industry sectors due to its versatility. Applications include locating buried telecommunications lines in FTTH/FTTB/CATV access networks, tracing xDSL conduits in suburban infrastructure, mapping outdoor metro loops for metropolitan data systems, and identifying backhaul network conduits for wireless infrastructures. It also performs with excellence in energy utilities, detecting cathodic protection signals in pipelines and identifying Sondes and inspection cameras for maintenance work. For construction engineers, it serves as a reliable solution for avoiding accidental cable cuts and pipe damage during excavation.

Durability and Portability in Field Operations

The physical build of the 2220M-CU12W/RT emphasizes field durability. Supplied with a 2200RB rechargeable battery and a dedicated carrying bag, the system ensures extended operational life and easy portability between sites. The coupler size is precisely set at 3 inches, allowing compatibility with a wide range of utility connections. The direct connect cable provided includes both small and large clips to accommodate different conductor dimensions. All these features help maintain accuracy and convenience during long field surveys in urban and rural environments alike.

Optimized Performance with User Frequency Control

This locator stands out in its class due to its two selectable active frequencies, which allow operators to choose the optimal signal type for prevailing field conditions. This flexibility supports work in wet soils, rocky terrain, or congested utility corridors. By maximizing signal penetration and minimizing interference, the 2220M-CU12W/RT consistently delivers accurate utility path mapping. Furthermore, its transmitter offers a 12W output, providing strong, stable signals for locating longer distances with minimal degradation.

Global Availability Through Premium Online Distribution

For professionals and organizations seeking to acquire the 3M™ Dynatel™ Pipe/Cable Locator 2220M-CU12W/RT, tpt24.com is recognized as the world’s premier online store for this equipment. The platform guarantees product authenticity and superior quality, ensuring dependable deployments in mission-critical projects. Regardless of your country of operation, tpt24.com ensures secure, fast, and insured delivery to your location, backed by responsive global customer support. Choosing tpt24.com means you benefit from certified devices, comprehensive after-sales assistance, and worry-free installation readiness.

Series Compatibility and Operational Specifications Summary

As part of the Dynatel™ 2200M series, the 2220M-CU12W/RT functions seamlessly alongside other compatible components, ensuring scalable deployment in larger detection networks. The unit is designed for use across multiple utility detection modes — including pipe and cable location — but does not include EMS caution tape, fault-finding, or marker location capabilities. With a transmission output of 12W, a coupler size of 3 inches, and two operational frequencies, it strikes the ideal balance between technical power and precision. Supplied in 1 case per unit, this makes procurement and asset tracking simpler for enterprise operations.
