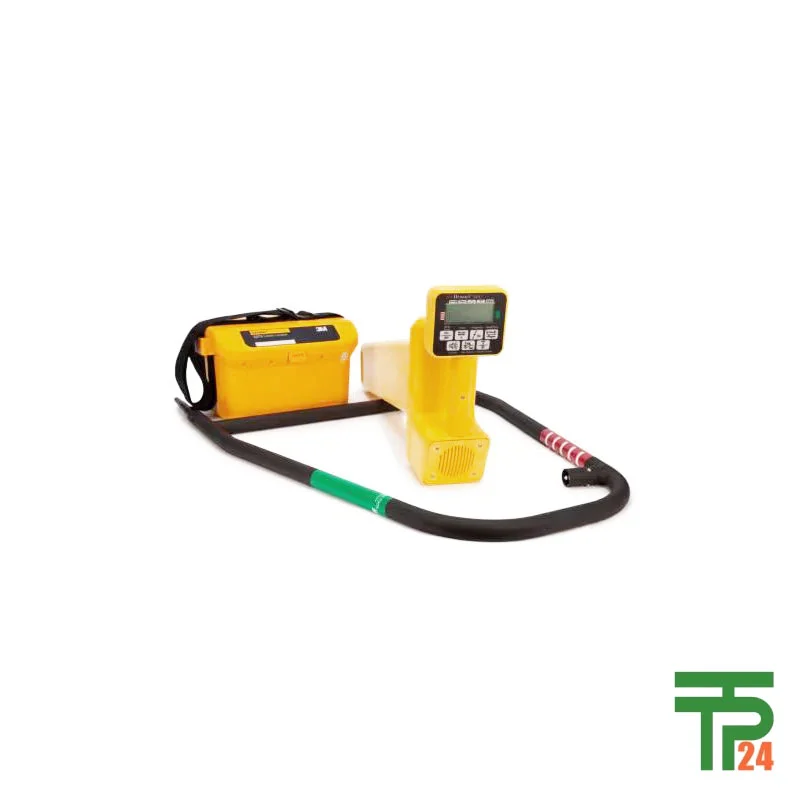

3M™ Dynatel™ Cable/Pipe/Fault Locator 2273-U3P3

Description

The 3M™ Dynatel™ Cable/Pipe/Fault Locator 2273-U3P3 is an advanced microprocessor-driven utility location device designed to provide precision detection of underground cables, pipes, and sheath or ground faults. Built on 3M’s proven Dynatel platform, it integrates advanced digital signal processing techniques that result in rapid and highly efficient location of both the path and depth of buried utilities. This locator stands out due to its ability to trace copper and fiber optic cables (equipped with metallic trace wires), offering unmatched accuracy during complex field conditions. The system supports four active trace frequencies that can be used individually or simultaneously, ensuring adaptability to varying environmental and electromagnetic field conditions. Additionally, the passive power and auxiliary frequencies allow technicians to detect live power cables without requiring transmitter activation. Its ergonomic design makes it comfortable for extended use, while its durability ensures consistent performance in challenging weather conditions.

Four Active Frequencies for Optimal Field Adaptation

The locator’s capability to operate across four active trace frequencies provides operators with the flexibility needed to tackle a variety of terrains and interference conditions. These frequencies can be activated individually for targeted location tasks or simultaneously to enhance accuracy and compensate for mixed signals in the presence of multiple utility lines. The multi-frequency approach is particularly effective in densely wired urban environments or industrial zones where interference from surrounding metallic structures is common. The inclusion of passive detection allows field technicians to identify and trace active power lines without engaging the transmitter, which increases efficiency and reduces battery consumption. By interpreting complex electromagnetic signatures accurately, the 2273-U3P3 ensures precise cable identification, reducing the risk of accidental damage during excavation and minimizing downtime in network operation.

Multiple Operation Modes Ensure Maximum Detection Reliability

The 3M™ Dynatel™ 2273-U3P3 offers four operational modes—dual peak, dual null, differential, and special peak—that provide flexibility for different locating scenarios. The dual peak mode amplifies the received signal to pinpoint exact cable paths, while dual null is used to quickly identify the absence of target signals for confirmation. Differential mode enables comparative signal analysis between two points, aiding in fault discrimination. Special peak mode is designed for environments with extreme interference, maintaining accuracy despite adverse conditions. Field operators benefit from these modes when dealing with congested underground networks, where precise differentiation between targeted cables and non-relevant lines is critical. The device’s graphic display clearly distinguishes between multiple cables in cluttered areas, enhancing work speed and reducing the probability of misinterpretation. This operational versatility makes the 2273-U3P3 an indispensable tool for utility companies and contractors working with telecommunications, energy distribution, and municipal infrastructure.

Purpose-Built for Cable Path and Fault Location

The Dynatel 2273-U3P3 is specifically engineered to locate buried cable paths and efficiently identify faults such as sheath damage, earth-return issues, and cable breaks. Its push-button depth estimation function delivers instant measurements for cables, pipes, or sondes—critical for excavation planning and safety compliance. The unit’s ability to measure the signal current in targeted cables provides valuable data on system integrity, assisting maintenance crews in diagnosing signal leakage or performance degradation. Particularly valuable is its fault discrimination capability, distinguishing between light and severe faults, which allows prioritization of repair tasks. Industries employing underground transmission—such as broadband, fiber-to-the-home (FTTH/FTTB), CATV, wireless backhaul, and xDSL—find this unit indispensable for maintaining network integrity. This focus on precision fault location significantly reduces repair times, limits service interruptions, and minimizes costs associated with unplanned outages.

Specialized Applications Across Telecommunications and Utilities

The 2273-U3P3’s utility is most apparent in industries that rely on complex underground cabling systems. For telecommunication networks, it ensures optimal operation of xDSL lines, longhaul metro loops, wireless backhaul systems, and advanced fiber deployments. For municipal utility services, the locator aids in finding and repairing faults in electrical distribution systems, water pipelines with metallic tracing wires, and gas transmission lines with conductive sheathing. In large industrial campuses, the device proves invaluable for mapping internal utility grids and tracking aging infrastructure. Construction contractors benefit greatly from its precision locating during excavation and site preparation, preventing costly and dangerous accidental strikes. Its adaptability to varying conditions—whether in high-temperature industrial settings or sub-zero outdoor installations—expands its value across various geographic markets. By using the 2273-U3P3, organizations can ensure operational continuity, compliance with safety regulations, and effective asset management.

Ergonomic Design Supporting Long Field Operations

The Dynatel 2273-U3P3 is lightweight, compact, and well-balanced, making it suitable for prolonged field deployments without causing fatigue. Its robust construction withstands temperatures from -20°C to 50°C, ensuring reliable operation in extreme climates. The large graphic display is engineered for clarity even under bright sunlight or in low-light conditions, facilitating immediate interpretation of results. The intuitive control layout, including the push-button depth and toning functions, allows operators to work efficiently with minimal training time. For portability, the unit can be easily transported to various field sites, although a carrying bag is not included in this model configuration. The thoughtful balance between form and function makes the 2273-U3P3 a preferred choice among professional technicians who demand both precision and comfort during extended use.

Guaranteed Authentic Supply Worldwide from tpt24.com

To ensure you receive only authentic and high-quality 3M™ Dynatel™ 2273-U3P3 units, it is highly recommended to purchase through tpt24.com—the world’s premier online store for utility detection and fault location equipment. tpt24.com guarantees original manufacturer sourcing, certifying product authenticity and compliance with all relevant international performance standards. Each device is shipped securely, with worldwide delivery ensuring accessibility regardless of your geographic location. Customers benefit from professional consultation, comprehensive warranty support, and competitive pricing unmatched by other suppliers. By sourcing from tpt24.com, professional utility companies and independent contractors can rest assured that their equipment will deliver top-tier results and maintain operational integrity in critical field applications.

Comprehensive Technical Specifications for Professional Users

The Dynatel 2273-U3P3 is part of the Dynatel 2200 series, ensuring compatibility with a wide range of accessories for enhanced locating capabilities. It operates with a 3 W transmitter output, provides a 3-inch coupler size for direct connections, and utilizes large clamps for secure attachment to target utilities. The product supports fault finding capability and cable/pipe location but does not include EMS caution tape detection or marker locating features. Key operational temperature range covers -20°C to 50°C. Series compatibility ensures performance consistency across projects using multiple Dynatel units. These features represent a balance between technical excellence and practical usability, making the locator ideal for demanding industrial and municipal applications. Below is the condensed list of the four most important specifications for quick reference.
