Draminski airScan pro wireless ultrasound scanner

Description

Revolutionizing Veterinary Imaging with Wireless Technology

The Draminski airScan pro wireless ultrasound scanner represents a landmark innovation in veterinary diagnostics, combining mobility, accuracy, and advanced features to transform the way animal health is monitored. Designed especially for professionals working in large animal reproduction, such as cattle and horse veterinarians, this scanner is not just a tool—it’s a game-changer. Equipped with specialized rectal linear and rectal convex probes, it delivers sharp imaging for various diagnostic purposes, from reproductive assessments to organ health evaluations. Through built‑in color Doppler mode, practitioners can visualize blood flow, assess fetal viability, and estimate pregnancy stage with high precision. This solution is ideal for veterinarians seeking lightweight, waterproof, and versatile equipment that works seamlessly in any environment, including challenging farm conditions.

Introduction

• Purpose of the device: Aims to streamline and modernize veterinary ultrasound workflows in field and clinic settings.
• Target users: Veterinarians specializing in large animal reproduction (bovine, equine), as well as mixed-practice clinicians requiring robust imaging in challenging environments.
• Core value proposition: Mobility without sacrificing imaging quality, rugged durability, and seamless integration with consumer smart devices for real-time collaboration and remote consultation.
• Overview of capabilities: Wireless connectivity, specialized probes, color and power Doppler imaging, weather-resistant and durable build, ergonomic design, user-centric workflow tools, and a comprehensive software ecosystem for image management, measurement, and export.

System Philosophy and Design Principles

• Portability without compromise: Lightweight form factor with battery-powered operation and belt-mounted configuration.
• Durability in harsh environments: IP65 enclosure rating and rugged materials for farm, barn, and field use.
• User-centric ergonomics: Features that reduce clinician fatigue and improve workflow efficiency during extended examinations.
• Seamless integration with mobile devices: Compatibility with Android and iOS platforms, enabling flexible viewing, control, and sharing.
• Comprehensive workflow tooling: High-quality image acquisition, annotation, measurement, and data management tailored for veterinary practice.

Wide-Ranging Applications for Diverse Veterinary Needs

The airScan pro has been meticulously engineered to cater to a broad range of applications. With the rectal linear probe, veterinarians can perform reproductive examinations on horses and cattle, detect pregnancies, monitor fetus development, carry out lung and udder ultrasounds, evaluate overall animal condition, and even conduct basic tendon checks. For mixed practice, the rectal convex probe extends these capabilities to pregnancy checks in sheep and goats, as well as diagnostic examinations of the liver, gastrointestinal tract, and heart in multiple species. These targeted applications make the device an invaluable asset in both specialized and general veterinary practice. Its high adaptability delivers precise diagnostics while optimizing workflow, regardless of the animals examined.

Key Application Domains

• Reproductive health and pregnancy assessment:
  • Fetal viability evaluation using color Doppler to assess blood flow and placental perfusion.
  • Pregnancy staging based on fetal size, development indicators, and gestational age estimation.
  • Multiple species applicability: cattle, horses, sheep, goats during mating checks and gestational monitoring.
• Abdominal and thoracic diagnostics:
  • Liver and gastrointestinal tract visualization for structural anomalies, organ size, and pathology screening.
  • Cardiac screening using available presets and adaptability to multiple species, focusing on basic cardiac anatomy and function.
  • Lung imaging for conditions such as pleural effusion, pneumothorax, or consolidation.
• Musculoskeletal and tendon assessment:
  • Tendon and ligament checks in accessible anatomical regions to support lameness investigations.
• General health and condition monitoring:
  • Body condition assessment, organomegaly, and general imaging checks to monitor disease progression or recovery.
• Workflow advantages:
  • Rectal probe configurations optimized for reproductive evaluation.
  • Rectal convex probe enabling broader anatomical surveys in small ruminants and multi-species diagnostics.
  • Quick switching between probes with streamlined presets and user-friendly interfaces to maximize field efficiency.

Probes and Imaging Focus

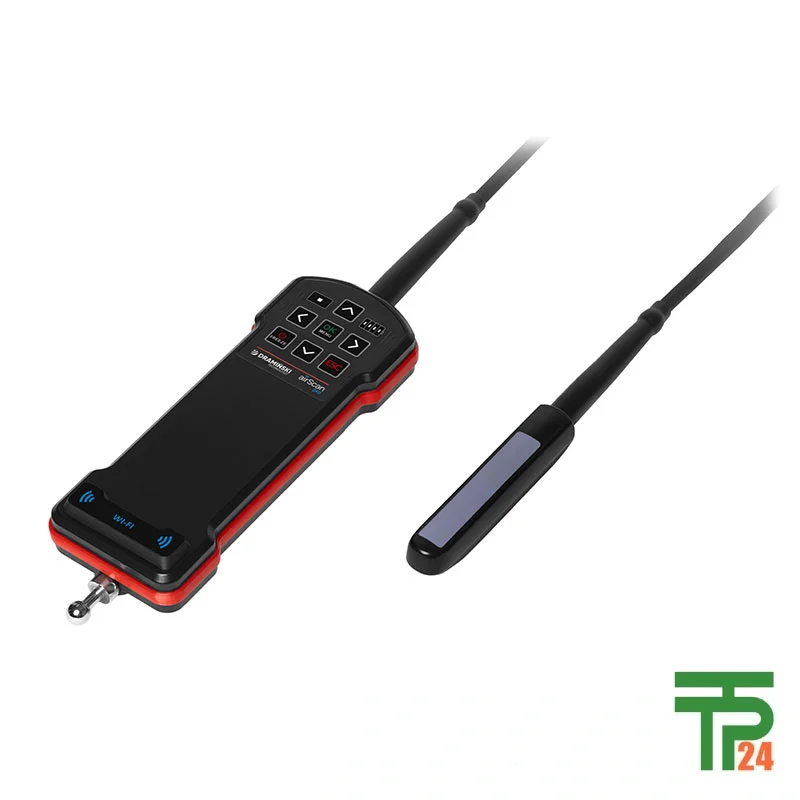

• Rectal Linear Probe (High-frequency linear array):
  • Optimized for high-resolution superficial imaging in reproductive tracts, abdominal surfaces, and targeted musculoskeletal structures.
  • Ideal for precise placental visualization, fetal measurements, and detailed uterine assessments.
• Rectal Convex Probe (Curved array):
  • Optimized for deeper structures and broader field of view within a single scan plane.
  • Suitable for multi-species use in reproductive checks of small ruminants and broader abdominal imaging of liver and GI tract.
• Imaging Modalities Supported:
  • B Mode: Standard grayscale imaging for anatomy visualization.
  • B+B Mode: Enhanced detection through compounded or dual-mode imaging to improve surface detail.
  • Color Doppler (CF): Visualization of blood flow within vessels and fetal circulation.
  • Power Doppler (PD): Sensitive detection of low-velocity flow, beneficial in fetal assessment and organ perfusion.

Seamless Wireless Connectivity Enhances Operational Comfort

One of the standout features of the Draminski airScan pro is its advanced wireless connectivity. Users can connect the device to smartphones, tablets, or iLens wireless goggles, supporting both Android and iOS platforms. This mobility allows veterinarians to work without cumbersome cables, ensuring that their focus remains entirely on patient care. By leveraging mobile technology, the device also enables real‑time sharing of images or videos with colleagues for consultation. The AirScan app is optimized for seamless integration, bringing all imaging parameters and control options directly to the touchscreen of the connected device. The result is a fluid, modern workflow where the ultrasound becomes as portable as the practitioner requires.

Wireless Ecosystem and Connectivity

• Core connectivity options:
  • WiFi-based transmission to mobile devices and iLens goggles.
  • Direct control and image viewing via connected smartphones or tablets.
• Cross-platform compatibility:
  • Android and iOS support for flexible device choices and ease of adoption in diverse clinics.
• Real-time collaboration:
  • In-field sharing of live ultrasound streams, still images, and cine loops with colleagues for remote consultation and second opinions.
• AirScan app integration:
  • Centralized access to imaging presets, parameter adjustments (frequency, gain, dynamic range, THI, SC), and storage management within a familiar mobile interface.
  • Controls mirror device capabilities for intuitive operation during scanning.
• Market positioning:
  • Emphasizes the benefit of going cable-free, increasing clinician mobility, reducing setup time, and enhancing patient interaction during examinations.

User Interaction and Workflow

• Touchscreen control model:
  • When connected to a mobile device, imaging controls can be manipulated from the mobile touchscreen, enabling easy access to Doppler settings, depth, gain, and other imaging parameters.

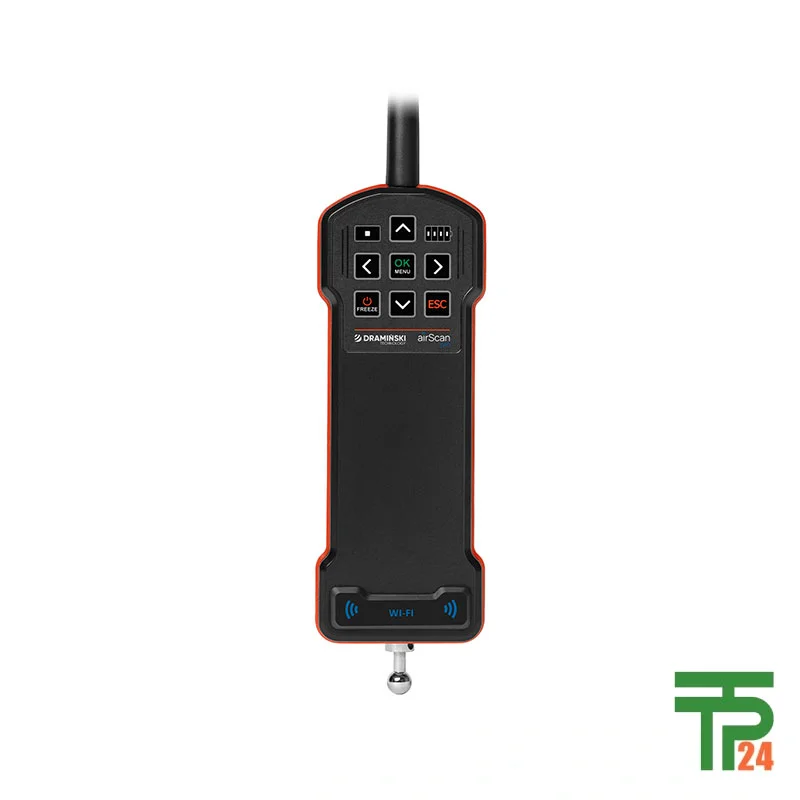

  • Direct membrane keyboard on the airScan pro provides quick tactile adjustments for on-site changes when the device is used independently of a smartphone.
• Shared imaging:
  • Real-time or asynchronous sharing of images and cine loops with veterinary teams, specialists, or clients to support decision-making and client education.
• Data synchronization:
  • Ensures that patient imaging data, metadata, and measurements are consistently accessible across connected devices and the local storage.

Unmatched Durability and Suitability for Harsh Conditions

Built to function faultlessly in all conditions, the airScan pro features an aluminum housing that guarantees exceptional toughness. Rated IP65, it is entirely dust-proof and protected against water jets, meaning it can be washed under running water without compromising performance. This rugged design ensures reliability in varied working contexts, from barns to open fields. When combined with its lightweight build and compact shape, the device is ideal for mobile veterinary operations. From hot summer days in outdoor pens to damp winter barns, the airScan pro stands up to the challenges of diverse environments without skipping a beat.

Construction and Certification Highlights

• Housing and materials:
  • Aluminum enclosure providing rigidity, thermal management, and impact resistance.
  • Sealed joints and gaskets to maintain IP65 protection when exposed to water jets and dust.
• IP65 rating implications:
  • Protection against low-pressure water jets from any direction.
  • Complete protection against dust ingress to prevent particulate contamination of critical components.
  • Wash-down compatibility, enabling routine cleaning and disinfection in field settings.
• Environmental tolerance:
  • Operational reliability across a range of ambient temperatures and humidity typical of farm environments.
  • Resistance to agricultural dust and moisture that commonly occur in barns, stables, and outdoor enclosures.
• Reliability and maintenance:
  • Designed to minimize maintenance requirements in the field.
  • Simplified battery replacement and external charging to maximize uptime.
• Safety and compliance:
  • Meets safety expectations for portable medical devices used in veterinary settings.
  • Materials chosen to withstand routine cleaning agents consistent with field sanitation practices.

Ergonomic and Environmental Adaptations

• Weight distribution:
  • Strategic weight distribution to reduce operator fatigue during extended scanning sessions.
• Handling in the field:
  • Belt-mounted configuration options and secure mounting accessories to keep the device accessible yet unobtrusive during examinations.
• Weather and climate compatibility:
  • Endurance under variable weather conditions encountered during herd management tasks and on-farm visits.
• Maintenance considerations:
  • External surfaces designed for easy cleaning with standard veterinary cleaning protocols.
  • Battery and charging components designed for durability and quick field swaps.

Ergonomic Design Supports Long Diagnostic Sessions

Veterinary work often requires prolonged field sessions where comfort and security are paramount. The airScan pro has been ergonomically designed with a secure waist‑belt mount that prevents accidental unfastening, allowing freedom of movement without hindrance. Operators can adjust imaging settings either via their mobile device or directly on the unit’s membrane keyboard, which also displays battery charge levels. The device operates for up to two hours on a full charge, with external batteries that can be easily swapped and charged via USB‑C connectors—in the clinic, at home, or in a vehicle. This flexibility guarantees uninterrupted operation during critical diagnostic procedures.

Ergonomic Features and User Comfort

• Waist-belt mounting:
  • Secure attachment mechanism to minimize instrument movement during scanning.
  • Enables hands-free scanning and smoother maneuverability around animals.
• Dual control pathways:
  • Imaging adjustments can be performed on the airScan pro’s membrane keyboard for quick tactile control.
  • Or via the connected mobile device’s touchscreen, leveraging larger interfaces for advanced parameter manipulation.
• Battery and power management:
  • Up to 2 hours of continuous operation on a full external battery supply.

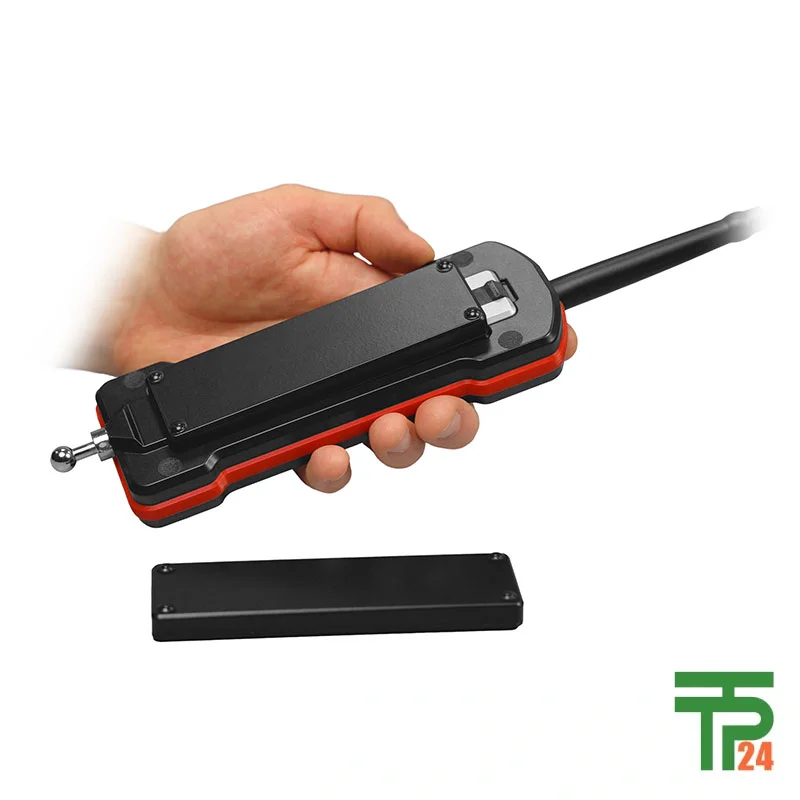

  • Replaceable external batteries allow rapid field recharging or swapping without long downtime.
  • USB-C charging for universal compatibility with portable power banks, clinics, or vehicle power sources.
• Visual indicators:
  • Battery status indicators on the membrane keyboard ensure operators can anticipate power needs and avoid abrupt interruption during a procedure.
• Operational workflow:
  • Intuitive navigation with clear icons for common actions (freeze, save, measure) to minimize cognitive load during time-sensitive examinations.
  • Quick-access presets for bovine rectal exams and species-specific configurations to reduce setup time.

Lightweight Portability Without Performance Compromise

Despite its robust suite of features, the airScan pro weighs only 620 grams including its battery, with the battery itself weighing less than 100 grams. Its compact form factor means that when attached to a belt, it does not interfere with tasks or movement, allowing veterinarians to work efficiently in sometimes tightly confined animal handling spaces. Portability is paired with high imaging performance, providing the best of both worlds for professionals who need mobility without sacrificing image quality or diagnostic capability.

Key Weight and Balance Data

• Total device weight:
  • Approximately 0.62 kg (620 grams) including battery.
• Battery weight:
  • Battery components under 100 grams thus contributing to the overall lightness.
• Mobility benefits:
  • Belt-mounted configuration supports hands-free operation, improves posture during scanning, and reduces the risk of equipment entanglement.
• Form factor considerations:
  • Slim profile (dimensions provided in the Technical Specifications section) enables scanning in narrow stalls or around large animals where space is limited.
• Imaging performance vs portability:
  • Sophisticated imaging modes and Doppler functions are preserved within a compact, light architecture to avoid performance trade-offs.

Dedicated Workflow Tools for Efficient Practice

The airScan pro streamlines operations thanks to dedicated workflow tools and user-friendly functions. Image management options include freeze, zoom from 100 to 300%, full-screen viewing, and left-right inversion, alongside the ability to save images and cine loops in multiple formats (JPEG, PNG, BMP, MP4, DICOM). Measurement functions cover distances, grids, and fetal age calculation, complete with icons of specific animal body parts for easy annotation. For additional ease, the system supports presets for bovine rectal exams and configurations optimized for different species, making setup fast and efficient. Such thoughtful design shortens examination times and improves data management.

Detailed Workflow Tools

• Image capture and manipulation:
  • Freeze function to pause live imaging and capture stills at critical moments.
  • Zoom functionality ranging from 100% to 300% to scrutinize fine anatomical details.
  • Full-screen mode for distraction-free evaluation of structures.
  • Left-right inversion to accommodate operator preferences and probe orientation.
• Data management and export:
  • Ability to save still images and cine loops in multiple formats: JPEG, PNG, BMP, MP4, and DICOM to support different clinical workflows and educational use.
  • DICOM compatibility ensures interoperability with hospital PACS and broader medical imaging ecosystems.
• Measurements and annotations:
  • Distance measurements for anatomical feature sizing.
  • Grid overlays to assist with spatial orientation and scale calibration.
  • Fetal age calculation tools based on measurements and standard veterinary references.
  • Annotations with animal body part icons to simplify documentation and communication with clients or colleagues.
• Workflow presets:
  • Bovine Rectal Linear presets optimized for common bovine reproductive examinations.
  • Mixed-species Rectal Convex presets to align with species-specific scanning protocols.
• Efficiency gains:
  • Pre-configured workflows reduce setup time, lower operator variance, and expedite data collection and interpretation.
  • Simplified data organization supports audit trails and case management.

tpt24 Ensures Global Supply with Authenticity

Purchasing the Draminski airScan pro from tpt24 guarantees that veterinarians receive an authentic, high-quality product with worldwide delivery. Recognized as the premier online store for this scanner, tpt24 not only provides competitive pricing but also ensures that every order is backed by a warranty of authenticity and performance. Regardless of the country or veterinary setting, customers can rely on tpt24 to deliver the airScan pro promptly and securely, empowering practitioners to modernize their diagnostic workflows with confidence.

Authorship and Warranty

• Authorized distributor:
  • tpt24 is presented as the official or premier online retailer ensuring genuine devices, accessories, and support.
• Warranty coverage:
  • Includes authenticity guarantees and performance assurance for customers purchasing from the supplier.
  • Warranty terms typically cover defects in materials or workmanship and ensure replacement or repair under specified conditions.

• Delivery and support:

  • Global shipping capabilities with import considerations addressed.

  • Pre- and post-purchase support including setup guidance, user manuals, and potential access to technical support resources.
