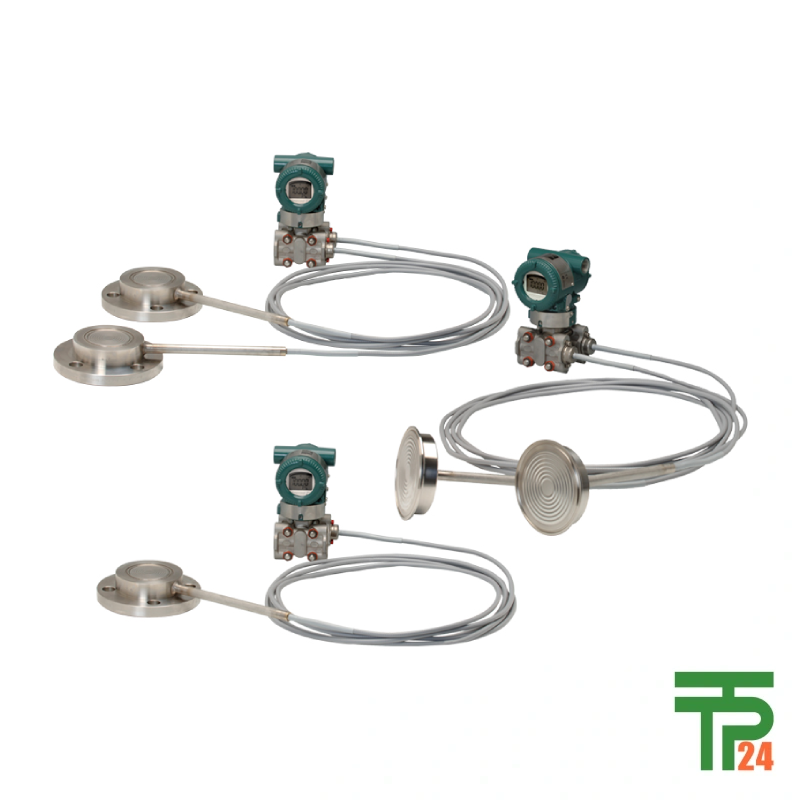

Yokogawa EJXC80A, EJAC80E Differential / Gauge Pressure Diaphragm Seal System

Description

Yokogawa EJXC80A EJAC80E Diaphragm Seal Excellence

The Yokogawa EJXC80A Gauge Diaphragm Seal System and the EJAC80E Differential Pressure Diaphragm Seal System represent the pinnacle of modern pressure measurement protection technology. These robust, high-performance diaphragm seal systems are meticulously engineered to isolate sensitive primary pressure sensors from the harsh realities of the process environment. In applications where direct contact between the process fluid and the transmitter’s sensing element is impossible or detrimental—due to extreme temperatures, corrosive media, high viscosity, or the presence of solids—the diaphragm seal acts as an indispensable intermediary. By utilizing a flexible, yet durable, barrier diaphragm, these systems transmit process pressure accurately via a completely filled, incompressible fill fluid to the connected transmitter, ensuring measurement integrity across the entire operational spectrum. The inherent design philosophy behind the EJXC80A/EJAC80E family focuses on maximizing uptime, minimizing maintenance requirements, and guaranteeing measurement precision, regardless of the hostility of the process fluid. They are not merely add-ons; they are integral components designed to extend the operational life and enhance the reliability of high-value pressure transmitters in critical industrial settings such as petrochemicals, pharmaceuticals, power generation, and specialized chemical manufacturing. The quality of the seal directly dictates the quality and longevity of the pressure reading, and Yokogawa’s commitment to superior materials science and precision machining is evident in every unit produced.

Specialized Systems Conquer Extreme Process Conditions

The true strength of the EJXC80A and EJAC80E systems lies in their dedicated applicability across a broad range of challenging process conditions that would rapidly destroy standard impulse lines or transmitter diaphragms. Specifically, these systems excel when measuring fluids operating at high or extremely low temperatures. The robust construction and selection of appropriate fill fluids allow for accurate, stable readings where thermal expansion or contraction could introduce significant measurement errors or material failures in unsealed systems. Furthermore, for processes involving highly corrosive media—such as strong acids, caustic solutions, or aggressive solvents—the wetted parts, particularly the isolating diaphragm, are manufactured from exotic, corrosion-resistant alloys (e.g., Hastelloy C-276, Tantalum, Monel) selected based on detailed application analysis. Viscous fluids, notoriously difficult to measure due to their tendency to cling to and plug impulse lines, are managed effectively by the seal system, provided the correct fill fluid and filling procedure are employed, preventing dead spots and sluggish responses. Perhaps most critically for safety and environmental compliance, these seals provide absolute containment for toxic or hazardous fluids. The hermetic sealing integrity ensures that no fugitive emissions occur, protecting personnel and the environment. Moreover, these systems are engineered for environments demanding high vacuum capability, maintaining operational integrity down to a vacuum level of approximately (0.013 \text{ kPa abs}) or lower, depending on the specific model configuration and fill fluid vapor pressure characteristics.

Technical Excellence Delivers Unmatched Performance Metrics

The EJXC80A/EJAC80E platform is engineered to meet the most stringent performance benchmarks required by modern process control loops. Central to its success is the combination of high performance, exceptional accuracy, and proven reliability. Unlike lesser systems that might suffer from hysteresis or temperature drift, Yokogawa’s design minimizes these effects through meticulous component matching and thermal compensation strategies, particularly in the transmitter integration assembly. The reliability factor is enhanced by the strategic material selection for the diaphragm, balancing flexibility for accurate pressure transfer with resistance to fatigue failure over millions of cycles. A crucial aspect of modern dynamic control loops is the fast response time, which the EJXC80A/EJAC80E systems deliver with remarkable consistency, achieving a typical response time of 200 milliseconds (ms). This rapid transfer of pressure information is critical for processes requiring tight control, fast shutoffs, or immediate alarm triggering. This speed is maintained because the geometry of the seal cavity and the incompressible nature of the fill fluid allow for minimal damping of the pressure wave from the process side to the sensor side. Achieving this speed while maintaining isolation from aggressive chemicals is a testament to advanced engineering in fluid mechanics and material science integrated into one cohesive package designed for maximum process fidelity.

Defining The Operational Measurement Span Capabilities

A key differentiator for the Yokogawa diaphragm seal systems is the comprehensive array of measurement range options available, allowing engineers to precisely match the system to the specific process requirements, thereby optimizing transmitter turndown ratio and accuracy. The systems offer flexibility across multiple standardized ranges, accommodating applications from very low pressures to extremely high pressures. For Low Pressure applications, the standard M-range typically covers measurement spans from 2 kPa up to 100 kPa. Moving into medium pressure requirements, the H-range provides broader coverage, spanning from 10 kPa up to 500 kPa. For processes demanding protection in high-pressure systems, the V-series configurations become necessary. The V Flush configuration, often used when the seal must be mounted directly flush with the vessel wall or in extremely aggressive, high-pressure environments, covers spans ranging from 0.28 MPa up to 14 MPa. Finally, the V Extended configuration offers protection for even wider, though slightly lower high-pressure envelopes, spanning from 0.28 MPa up to 7 MPa. This diverse catalog ensures that whether the requirement is monitoring subtle vacuum variations or containing hydrostatic pressure in a critical boiler feed line, the appropriate EJXC80A or EJAC80E model exists, complete with the optimized diaphragm material and fill fluid selection to guarantee long-term operational excellence within the specified constraints.
