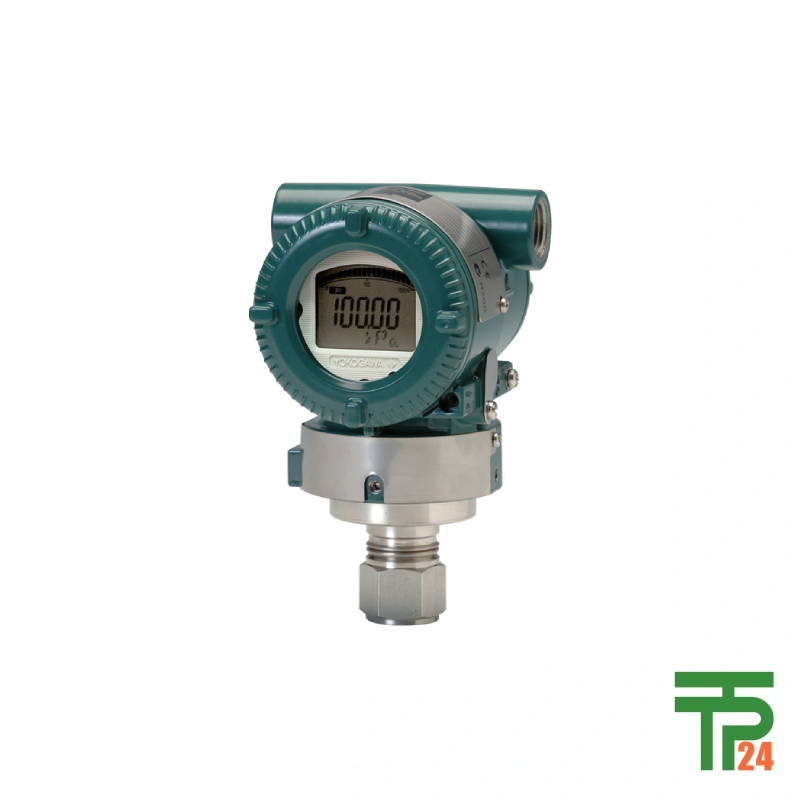

Yokogawa EJX630A In-Line Mount High Performance Gauge Pressure Transmitter

Description

Yokogawa EJX630A Sets New High Pressure Standard

The Yokogawa EJX630A High Performance In-Line Mount Gauge Pressure Transmitter fundamentally redefines the benchmarks for high-pressure measurement in the most unforgiving industrial environments. Built upon Yokogawa’s renowned Fieldbus foundation, the EJX630A leverages advanced sensor technology to deliver an industry-leading baseline accuracy of $\pm0.04%$ of span. For applications demanding the absolute zenith of measurement fidelity, an enhanced option pushes this precision further to an astonishing $\pm0.025%$ accuracy. This level of metric consistency is vital in processes where even minute deviations can result in significant operational inefficiencies or catastrophic failure. Furthermore, its sophisticated signal processing architecture ensures rapid assimilation of pressure changes, boasting an impressive response time as fast as 90 milliseconds. This rapid dynamic capability, coupled with its robust construction, positions the EJX630A not merely as a measuring device, but as an integral, high-speed component of modern process control loops, enabling instantaneous corrective action in rapidly evolving high-energy systems. The transmitter’s design prioritizes long-term reliability, minimizing the need for frequent recalibration and maximizing uptime across critical infrastructure.

Exceptional Longevity Under Extreme Stress Demonstrated

A critical metric for any industrial transmitter operating under high stress is long-term stability, and the EJX630A sets an exceptional standard in this regard. Yokogawa guarantees a performance stability of better than $\pm0.1%$ over an extended 15-year period under reference conditions. This unparalleled longevity drastically reduces the lifecycle cost of ownership, as maintenance schedules can be confidently extended, and measurement uncertainty remains low throughout the entire operational lifespan. This stability is achieved through proprietary sensor technology and advanced temperature compensation algorithms that counteract the thermal drift commonly plaguing conventional high-pressure sensors. Such resilience is crucial in systems where process conditions fluctuate widely, demanding a sensor that maintains its calibrated integrity regardless of thermal cycling or sustained high static pressure loads. This stability means that control engineers can rely on the integrity of the data feeding the Distributed Control System (DCS) or Safety Instrumented System (SIS) year after year, building process confidence upon an unwavering foundation of measurement truth.

Massive Turndown Capability Facilitates Versatility

The operational flexibility of the EJX630A is dramatically enhanced by its industry-leading rangeability, specifically a remarkable 200:1 turndown ratio capability. This extensive turndown allows a single transmitter model to cover an extremely wide spectrum of pressures, from the moderate to the truly extreme, simplifying inventory management and facilitating faster engineering deployment. For instance, a transmitter capable of measuring up to 15,000 psi can be effectively scaled down to accurately measure pressures as low as 75 psi within the same unit without sacrificing the fundamental accuracy specifications. This eliminates the need to stock multiple, specialized transmitters for varied pressure ranges within the same process train. Mathematically, if the upper range limit (URL) is $P_{max}$ and the lower range limit (LRL) is $P_{min}$, the rangeability $R$ is given by: [ R = \frac{P_{max}}{P_{min}} ] The EJX630A’s inherent design ensures that the inherent non-linearity and hysteresis remain within specified tolerances even at the lowest measurable points of this vast turndown ratio, a significant engineering feat in high-pressure diaphragm technology.

Unrivaled Robustness Against Physical Overload Pressure

The physical integrity of the sensor diaphragm and the pressure containment structure is paramount when dealing with dynamic, high-pressure applications. The Yokogawa EJX630A boasts an extraordinary capability to withstand massive transient overpressures. Its pressure containment design ensures a proof pressure rating of up to 26,390 psi (approximately 1820 bar) without experiencing permanent calibration shift or structural damage. This capability is non-negotiable in applications where accidental valve closures, surge conditions, or relief valve failures could momentarily subject the instrument to pressures far exceeding the normal operating range. In critical injection services or sudden decompression scenarios common in deep-sea operations, this high burst pressure rating provides an essential layer of protection for the process equipment and surrounding infrastructure, serving as a highly reliable first line of defense against physical over-pressurization events.

Exclusive Applications Demand Superior Performance Characteristics

The unique combination of high accuracy, fast response, and extreme durability makes the EJX630A the instrument of choice for several highly demanding, exclusive applications where failure is not an option. Consider high-pressure separation and injection skids in deep oil and gas extraction; here, maintaining precise injection rates against reservoir backpressure fluctuating up to thousands of psi requires the instantaneous feedback the EJX630A provides. In power generation, monitoring supercritical steam systems, where pressures exceed 3,200 psi and temperatures are extremely high, necessitates the transmitter’s stability and corrosion resistance. Furthermore, in complex petrochemical refining, the transmitter excels in monitoring high-viscosity fluid flows and catalyst bed performance, where even minor pressure losses due to fouling must be instantly detected to maintain reaction efficiency. Its deployment also extends to critical pipeline integrity monitoring for high-pressure natural gas transmission, aiding in early leak detection, and specialized uses like aerospace testing rigs simulating extreme atmospheric conditions or deep-sea exploration equipment operating under crushing hydrostatic loads.

Imperative Safety Certifications Guarantee System Integrity

Process safety is inextricably linked to measurement integrity, and the EJX630A is engineered from the ground up to function reliably within Safety Instrumented Systems (SIS). The transmitter carries rigorous third-party certifications, including Exida and TUV certifications for Safety Integrity Level 2 (SIL 2) and, significantly, Safety Integrity Level 3 (SIL 3) compliance. Achieving SIL 3 certification means the EJX630A meets the highest standards for probabilistic safety performance required in the most hazardous processes, such as emergency shutdowns or high-integrity pressure protection systems (HIPPS). Its integration into an SIS loop ensures that in the event of a process excursion, the transmitter provides the necessary reliable input signal to the safety logic solver, enabling the system to execute its protective function with high confidence. This mandated certification alleviates significant compliance burdens for safety engineers utilizing this device in critical control applications across the globe.
