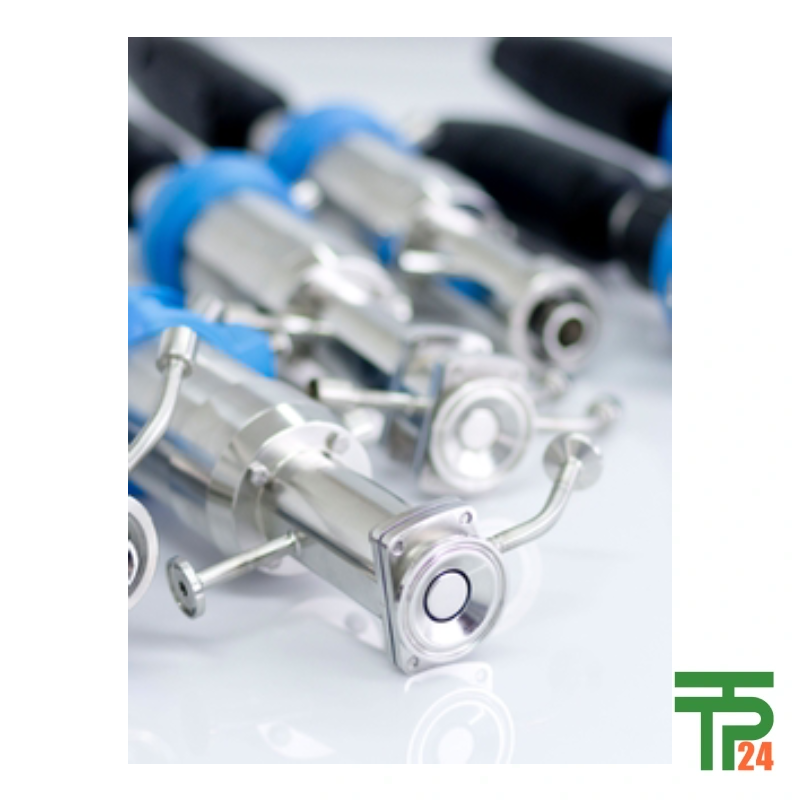

Endress+hauser CPA875 Manual or automatic retractable assembly Cleanfit

Description

Endress+hauser CPA875 Manual or automatic retractable assembly Cleanfit

The Endress+Hauser CPA875 is a retractable process assembly developed for hygienic and sterile measurement applications where contamination control is essential. Its modular construction accommodates suitable 12 mm sensors for parameters such as pH, oxidation-reduction potential (ORP), dissolved oxygen, and near-infrared (NIR) measurement.

Available through TPT Instrumentation Co., Ltd. at tpt24.com, this assembly is intended for manufacturers that need dependable sensor access without routinely stopping production. Its configuration options help adapt the installation to process conditions, equipment layout, and hygiene requirements.

Key Features of the Endress+Hauser CPA875

Hygienic Design and Contamination Prevention

The Endress+Hauser CPA875 uses a patented dynamic sealing arrangement designed to reduce the risk of contamination during sensor movement. Its hygienic construction supports demanding applications in which product integrity and separation between sterile and non-sterile areas are important.

The assembly is designed around recognized hygienic engineering requirements, with EHEDG certification and features aligned with FDA and USP Class VI requirements for applicable materials. Versions with a 3-A certificate are available; confirm the specific configuration and documentation before ordering.

Manual and Pneumatic Operation

Depending on the installation, the Endress+Hauser CPA875 can be configured with manual or pneumatic actuation. Manual operation provides a direct method of moving the sensor between measuring and service positions, while pneumatic operation supports automated movement where suitable control equipment is available.

This choice allows engineers to consider operating practices, available utilities, process pressure, and maintenance access when specifying the assembly. The correct drive type must be selected according to the intended application and the manufacturer’s operating limits.

Technical Highlights and Operating Conditions

The assembly is designed for installation in open or closed vessels and pipelines. Its immersion depth ranges from 16.1 to 81.4 mm, depending on the process connection, while the specified process temperature range is -10 to 140 degrees C.

Pressure capability depends on the drive configuration. The pneumatic version supports up to 16 bar at temperatures up to 140 degrees C, whereas the manual version supports up to 8 bar at temperatures up to 140 degrees C. These limits should be checked against the actual operating conditions and ordered configuration.

Applications Across Hygiene-Critical Industries

The Endress+Hauser CPA875 is suitable for food and beverage manufacturing, biotechnology, life sciences, and special chemical production. In these environments, hygienic sensor access can support process monitoring while helping protect product quality and minimize exposure to contamination risks.

Typical installations include suitable measurement points in process vessels and pipelines where operators need to clean, sterilize, or calibrate sensors during production. The sensor itself must be compatible with the process medium and the measurement task.

Flexible Installation and Maintenance

A range of process connections helps adapt the assembly to different hygienic piping and vessel arrangements. Available connection options include aseptic DN25 clampable, aseptic DN50 screw-in, Clamp ISO 2852, ASME BPE, and Varivent N, subject to configuration availability.

Before ordering the Endress+Hauser CPA875, verify the connection standard, required immersion depth, sensor dimensions, operating pressure, and cleaning procedure. Correct selection helps ensure mechanical compatibility and supports reliable operation throughout the production cycle.

Why Buy from TPT Instrumentation Co., Ltd.?

TPT Instrumentation Co., Ltd., operating through tpt24.com, supplies instrumentation and measurement equipment for customers across international markets. The company is headquartered in Shenzhen, China, with regional offices in Munich, Germany, and Dubai, United Arab Emirates.

Its technical consultation and quotation support can help buyers assess product requirements before specifying an assembly. When requesting a quotation, provide the application, preferred drive type, process connection, operating conditions, and required sensor compatibility to support an appropriate configuration review.

Request a Quote for the Endress+Hauser CPA875

Choosing the right retractable assembly requires careful consideration of hygiene standards, pressure and temperature limits, sensor dimensions, and maintenance procedures. The Endress+Hauser CPA875 offers configurable operation and hygienic design options for suitable sterile and sanitary processes.

Visit tpt24.com to request a quotation from TPT Instrumentation Co., Ltd. and discuss your application requirements. Confirm the ordered configuration and applicable certifications before purchase to ensure that the assembly matches your process and installation needs.
