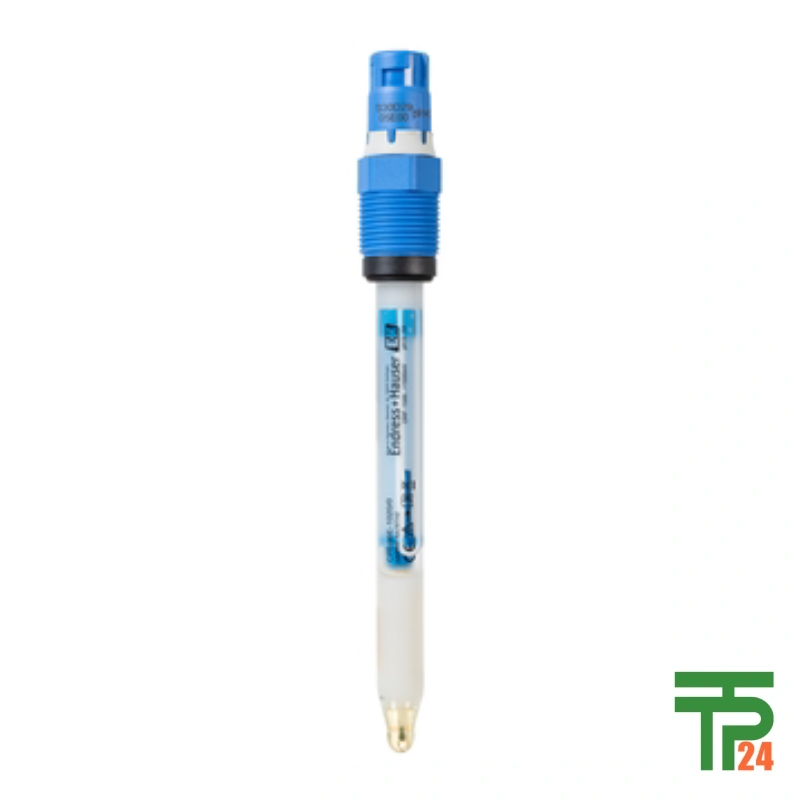

Endress+Hauser Memosens CPS96E Digital pH/ORP Sensor

Description

Endress+Hauser Memosens CPS96E Digital pH/ORP Sensor

The Endress+Hauser CPS96E is a digital combination pH/ORP sensor developed for challenging process media containing high concentrations of suspended solids. Its open-aperture design helps reduce fouling, supporting dependable measurement in dispersions, precipitates, emulsions, and other contaminated media.

Available through TPT Instrumentation Co., Ltd. at tpt24.com, this sensor is intended for industrial users who need reliable process analysis under demanding operating conditions. Its combination of advanced reference technology and digital data handling supports practical maintenance planning and process monitoring.

Key Features of the Endress+Hauser CPS96E

Open-Aperture Design for Contaminated Media

The Endress+Hauser CPS96E uses an open aperture to help prevent deposits and reduce the buildup of diffusion potential at the junction. This design is particularly valuable when conventional electrodes struggle with fouling or unstable readings in solids-rich process streams.

A stabilized gel reference with an ion trap helps improve resistance to electrode poisoning. Together, these design features support dependable operation in suitable chemical and industrial applications where process media can challenge sensor performance.

Memosens 2.0 Digital Technology

Memosens 2.0 provides extended storage for calibration and process data, helping operators identify trends and plan maintenance more effectively. Its non-contact inductive signal transmission also supports process safety by avoiding direct electrical contact at the sensor connection.

The digital interface allows laboratory calibration and convenient sensor replacement procedures when used with compatible equipment. For users of the Endress+Hauser CPS96E, stored diagnostic information can contribute to predictive maintenance strategies and future Industrial Internet of Things (IIoT) services.

 Measurement Capabilities and Technical Highlights

The sensor measures pH across a range of 0 to 14 and oxidation-reduction potential from -1500 to +1500 mV. It also supports rH measurement in the appropriate mode, providing additional insight into process chemistry when the application and connected transmitter support this function.

An additional platinum electrode enables continuous monitoring of reference impedance, helping assess sensor condition. The specified process temperature range is 0 to 110 degrees C, while the absolute process pressure range is 0.8 to 14 bar.

Industrial Applications and Suitable Process Media

The Endress+Hauser CPS96E is designed for chemical processing and the pulp and paper industry, where suspended solids and difficult media can complicate analytical measurement. Other stated applications include flue gas cleaning and processes involving dispersions, emulsions, and precipitation reactions.

Selecting the right sensor requires an assessment of the process medium, operating temperature, pressure, and required measurement parameter. Its 12 mm diameter and available shaft lengths of 120, 225, 360, and 425 mm should also be considered when checking installation compatibility.

Installation, Materials, and Sensor Compatibility

The sensor features a glass shaft, Type B pH membrane glass, a platinum ORP measuring element, an Ag/AgCl metal lead, an FKM O-ring, and a PPS glass-fiber-reinforced process coupling. Its integrated NTC 30K temperature sensor supports temperature-related measurement functions.

The Endress+Hauser CPS96E has IP68 ingress protection and hazardous-area approvals including ATEX, IECEx, CSA C/US, NEPSI, Japan Ex, and INMETRO for Zones 0, 1, and 2. Confirm the exact approval, installation requirements, and transmitter compatibility for the intended configuration before ordering.

 Why Buy from TPT Instrumentation Co., Ltd.?

TPT Instrumentation Co., Ltd. supplies instrumentation and measurement equipment to customers in international markets. The company is headquartered in Shenzhen, China, with regional offices in Munich, Germany, and Dubai, United Arab Emirates.

Through tpt24.com, buyers can request quotations and technical consultation to help assess product suitability. Providing the process medium, required measurement range, installation dimensions, and operating conditions can help clarify the appropriate configuration.

Request a Quote for the Endress+Hauser CPS96E

Reliable analytical measurement begins with selecting a sensor suited to the process medium and installation environment. The Endress+Hauser CPS96E combines open-aperture construction, digital data storage, and reference impedance monitoring for demanding applications involving suspended solids.

Visit tpt24.com to request a quotation from TPT Instrumentation Co., Ltd. and discuss your instrumentation requirements. Confirm the required shaft length, operating limits, transmitter compatibility, and hazardous-area approvals before purchase.
