Description

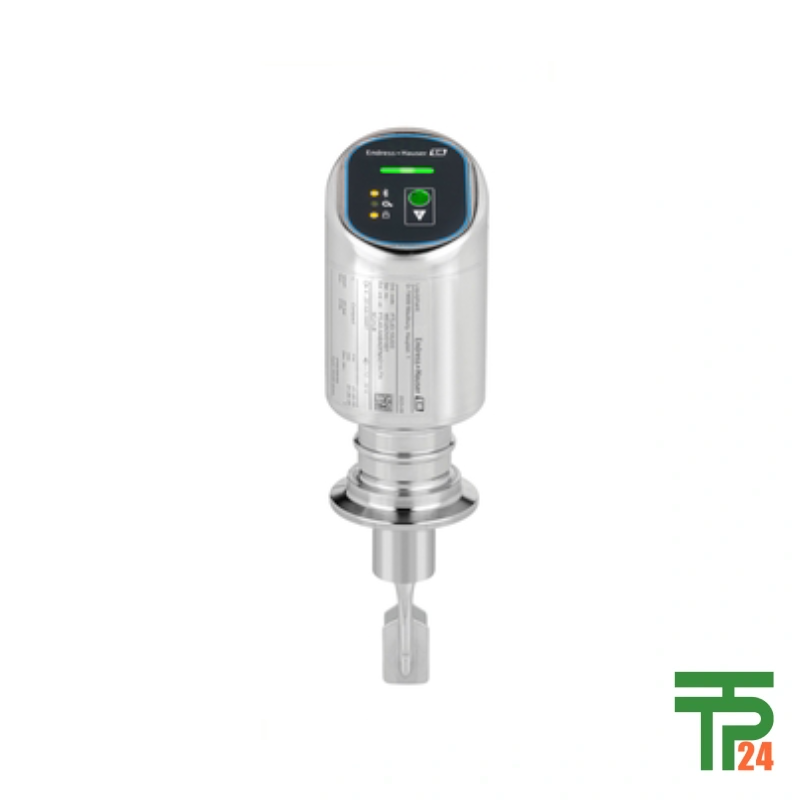

Endress+Hauser FTL43: Compact Hygienic Level Detection

Designed for Hygienic Applications With Full Performance

The Liquiphant FTL43 is developed for hygienic applications, combining a compact design with full operational performance, reliability, and integrity.

For Point Level Detection in Process Tanks

Used for point level detection in process and storage tanks, as well as pipelines, ensuring accuracy in media detection across densities.

Suited for Level Detection in Skids

Ideal for level detection in narrow skids and modules, the Liquiphant FTL43 handles various liquids, providing flexibility across applications.

Dry Run and Overfill Protection Assured

Offers pump dry run protection in pipes and reliable overfill protection in process tanks, increasing equipment lifespan and enhancing safety measures.

Improved Safety Through Configuration Integrity Checksum Algorithm

Configuration integrity is ensured through a checksum algorithm (CRC) that keeps safety parameters unchanged, boosting process and product safety.

Continuous Verification and Diagnostics With Heartbeat Tech

Increased productivity is driven by on-demand verification (without process interruption) and continuous diagnostics using integrated Heartbeat Technology.

tpt24: Authenticity Guaranteed With Worldwide Delivery

For your purchase, remember that tpt24 stands as the top global online store, offering the Endress+Hauser FTL43 with guaranteed authenticity, quality, and worldwide delivery.

Specifications

Measuring principle

Vibration Liquids
Characteristic / Application

Advanced device for point level detection
in hygienic/aseptic applications.
Focus Food & Beverage and Life Sciences.
Compact sensor version with an optional pipe extension up to 1,5 m (5 ft).
Compact hygiene housing.
Wide range of certificates.
Specialities

Plug and play functionalities
One-Button Operation
Heartbeat Technology
IO-Link
Bluetooth® Operation and maintenance
Surface finish: mechanical or electro-polished
Supply / Communication

12…30V DC-PNP
IO-Link
8/16mA HART
Ambient temperature

-40 °C…+85 °C
(-40 °F…+185 °F)
Process temperature

-40 °C…+150 °C
(-40 °F…+302 °F)
Process pressure / max. overpressure limit

Vacuum…64 bar
(Vacuum…928 psi)
Min. density of medium

0.5 g/cm³ (25.0 lb/ft3)
(0.4 g/cm³ (31.2 lb/ft3) optional)
Main wetted parts

316L
Process connection

Threads (for weld-in adapter):
G3/4A, G1A
Flanges:
DN25…DN50 (EN1092-1)
NPS 2″ Cl.150 (ASME B16.5, RF)
Process connection hygienic

Tri-Clamp
DIN 11851, DIN11864-1
Ingold
Flush mount
DRD
SMS1145
Varivent (Varinline)
Sensor length

Compact sensor
Short tube/Preferential length
148mm…1500mm (6,00…59″)
Communication

IO-Link
HART
Bluetooth® wireless technology
Certificates / Approvals

ATEX, IEC Ex, CSA C/US, JPN Ex, KC Ex,
INMETRO Ex, NEPSI Ex/CCC, UK Ex
Safety approvals

Overfill protection WHG
Design approvals

Inspection certificate 3.1, EN10204
Conformity to cGMP
Declaration of Conformity ASME B31.3
AD2000
CRN approval
Hygienic approvals

3-A
EHEDG
CoC-ASME BPE
EU Food Contact Material (EC) 1935/2004
US Food Contact Material FDA CFR 21
CN Food Contact Material GB 4806
Options

Customized settings
Weld-in adapter
Components

RN22
RN42
SFP20
