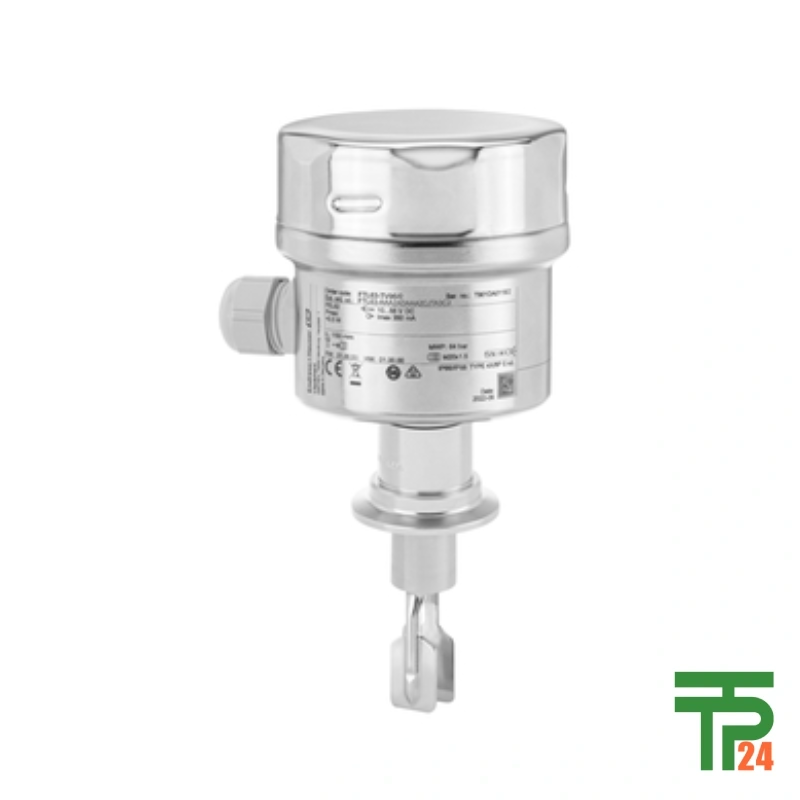

Endress+Hauser FTL63 Liquiphant hygienic point level switch for liquids

Endress+Hauser FTL63 Liquiphant hygienic point level switch for liquids

SKU: 4695814-1-1035-30
In Stock

  • Process Temp: -50 to +150°C
  • Process Pressure: Vacuum to 64bar
  • Wetted Parts: 316L Stainless Steel
  • Hygienic Approvals: 3-A, EHEDG

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+86) 132-6243-8118 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Brand:

Description

Endress+Hauser FTL63: Hygienic Level Detection Excellence

Specifically Developed for Food and Life Sciences

The Liquiphant FTL63 is meticulously designed for the food, beverage, and life sciences industries, meeting stringent hygienic requirements.

Reliable Vibronic Technology in All Pumpable Liquids

Its proven vibronic technology ensures reliability across all pumpable liquids, even where other principles struggle with conductivity changes or deposits.

Perfect Substitute for Other Measuring Principles

FTL63 is an ideal replacement for float switches, capacitive, or optical sensors, offering superior performance in challenging conditions.

Used in Tanks, Pipelines, and Hygienic Applications

This premium device is used for point level detection in process, storage tanks, and pipelines, focusing on hygienic and aseptic applications.

High Product Safety Through Certified Hygienic Design

The FTL63 ensures high product safety with certified hygienic design (3-A, EHEDG, ASME BPE) and material conformity (EC1935/2004, FDA).

Easy Commissioning With Plug and Play Functionality

Enjoy easy commissioning with plug & play functionality and minimized maintenance thanks to the convenient test button or magnetic pin.

tpt24: Your Global Source for Authentic Products

For your Endress+Hauser FTL63, tpt24 is the top global online store, guaranteeing authenticity, quality, and reliable worldwide delivery.

Specifications

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    Premium device for point level detection
    in hygienic/aseptic applications.
    Focus Food & Beverage and Life Sciences.
    Compact sensor version with an optional pipe extension up to 3 m (9,85 ft).
    Modular housing concept.
    Wide range of certificates.

  • Specialities

    Plug and play functionalities,
    Heartbeat Technology,
    LED Module,
    Bluetooth® Operation and maintenance,
    Surface finish: mechanical or electro-polished,
    Density/Concentration measurement,
    SIL 2/3 according to IEC 61508.

  • Supply / Communication

    19 ..253V AC,
    10…55V DC-PNP,
    9…20V DC with relay DPDT,
    19…253V AC or 19…55V DC with relay DPDT,
    8/16mA HART,
    NAMUR,
    PFM

  • Ambient temperature

    -50 °C…+70 °C
    (-58 °F…+158 °F)

  • Process temperature

    -50 °C…+150 °C
    (-58 °F…+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum…64 bar
    (Vacuum…928 psi)

  • Min. density of medium

    0.5 g/cm³
    (0.4 g/cm³ optional)

  • Main wetted parts

    316L

  • Process connection

    Threads (for weld-in adapter):
    G3/4A, G1A

  • Process connection hygienic

    Tri-Clamp,
    DIN 11851, DIN11864-1
    Ingold,
    Flush mount,
    DRD,
    SMS1145,
    Varivent (Varinline)

  • Sensor length

    Compact sensor
    Short tube (Liquiphant II)
    148mm…3000mm (6,00…118″)

  • Communication

    HART
    Bluetooth® wireless technology

  • Certificates / Approvals

    ATEX, IEC Ex, CSA C/US, JPN Ex, KC Ex,
    INMETRO Ex, NEPSI Ex/CCC, UK Ex

  • Safety approvals

    Overfill protection WHG;
    SIL 2/ SIL 3

  • Design approvals

    Inspection certificate 3.1, EN10204,
    CoC ASME BPE,
    Conformity to cGMP,
    EU Food Contact Material (EC) 1935/2004,
    US Food Contact Material FDA CFR 21,
    CN Food Contact Material GB 4806,
    Declaration of Conformity ASME B31.3,
    AD2000,
    CRN approval

  • Hygienic approvals

    3-A,
    EHEDG,
    CoC-ASME BPE

  • Options

    LED module,
    Bluetooth module,
    Graphic touch display,
    Customized settings,
    Weld-in adapter

  • Components

    FTL325P Interface PFM
    FTL325N Interface NAMUR
    FML621 Density controller
