Description

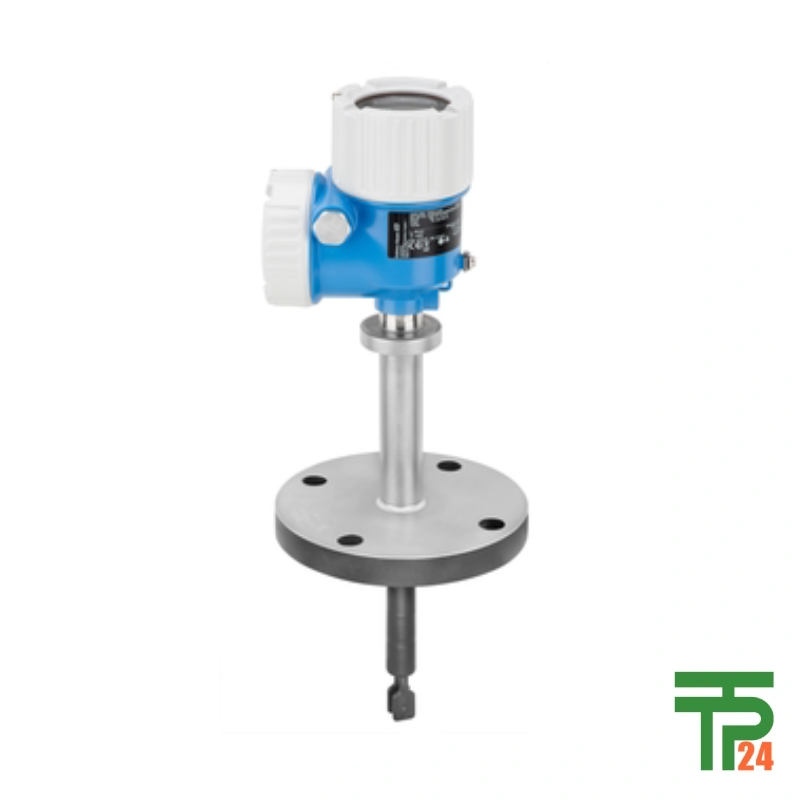

Endress+Hauser FTL64: High Temperature, High Pressure

Strong Focus on High Temperature Applications

The Liquiphant FTL64 is engineered for demanding high-temperature applications, ensuring reliable and safe operations in extreme environments.

Reliability and Safety With Easy Proof Testing

FTL64 offers reliability and safety (SIL compliant) with easy proof testing, meeting IEC 61508, API 2350, and WHG standards.

Safe Measuring in Challenging High Temperature Environments

This vibronic device provides safe and active measuring technology, specifically designed for applications involving elevated temperatures.

Proven Point Level Detection for Tank Protection

It offers proven point level detection for both tank overfill and pump dry run protection, enhancing operational safety and efficiency.

Easy to Use With Digital Connectivity Options

The FTL64 is user-friendly, featuring digital connection for real-time data access, making monitoring and management straightforward.

Heartbeat Technology for Continuous Diagnostics

Benefit from Heartbeat Technology, allowing safe, continuous diagnostics and simple verification without process interruption.

tpt24: Your Global Partner for Authentic Products

For your Endress+Hauser FTL64, tpt24 is the top global online store, offering guaranteed authenticity, quality, and worldwide delivery.

Specifications

Measuring principle

Vibration Liquids
Characteristic / Application

Compact vibronic device for high pressure and high temperature applications,
Optional extension tube up to 6 m (19.7 ft),
Modular housing concept,
Wide range of certificates
Specialities

Heartbeat Technology,
Bluetooth® Operation and maintenance SmartBlue App,
LED Module,
RFID TAG for easy identification,
Second line of defense,
Temperature spacer for high process temperature,
Plug and play functionalities
Supply / Communication

19…253V AC / 2-wire,
10…55V / DC-PNP 3-wire,
9…20V DC with relay DPDT,
19…253V AC or 19…55V DC with relay DPDT,
2-wire NAMUR,
2-wire PFM,
4-20mA HART
Ambient temperature

-60 °C…+70 °C
(-76 °F…+158 °F)
Process temperature

-60 °C…+280 °C
(-76 °F…+536 °F)
Process pressure / max. overpressure limit

Vacuum…100 bar
Vacuum…1450 psi
Min. density of medium

0.5 g/cm³
(0.4 g/cm³ optional)
Main wetted parts

316L
Alloy
Process connection

Threads:
3/4″, 1″
Flanges:
DN25…DN100
ASME 1″…4″
JIS 50A
Sensor length

up to 6 m (19.7 ft)
Communication

2-wire direct load
HART
DC-PNP 3-wire
Relays
NAMUR
PFM
Bluetooth® wireless technology
Certificates / Approvals

ATEX, IEC Ex, NEPSI, EAC Ex, KC, JPN Ex, INMETRO, UK Ex
Safety approvals

Overfill protection WHG
SIL2/ SIL 3 according to IEC 61508
Design approvals

EN 10204-3.1
NACE MR0175, MR0103
ASME B31.3 Process Piping
AD2000
CRN
Marine approval

ABS/ LR/ BV/ DNV
Options

Ambient temperature down to -60 °C (-76 °F),
Heavy duty stainless steel housing,
Coating PFA (conductive)
Components

FTL325P Interface PFM
FTL325N Interface NAMUR

Data Sheet

Download Data Sheet Of:Endress+Hauser FTL64 Liquiphant reliable detection at high temperatures
