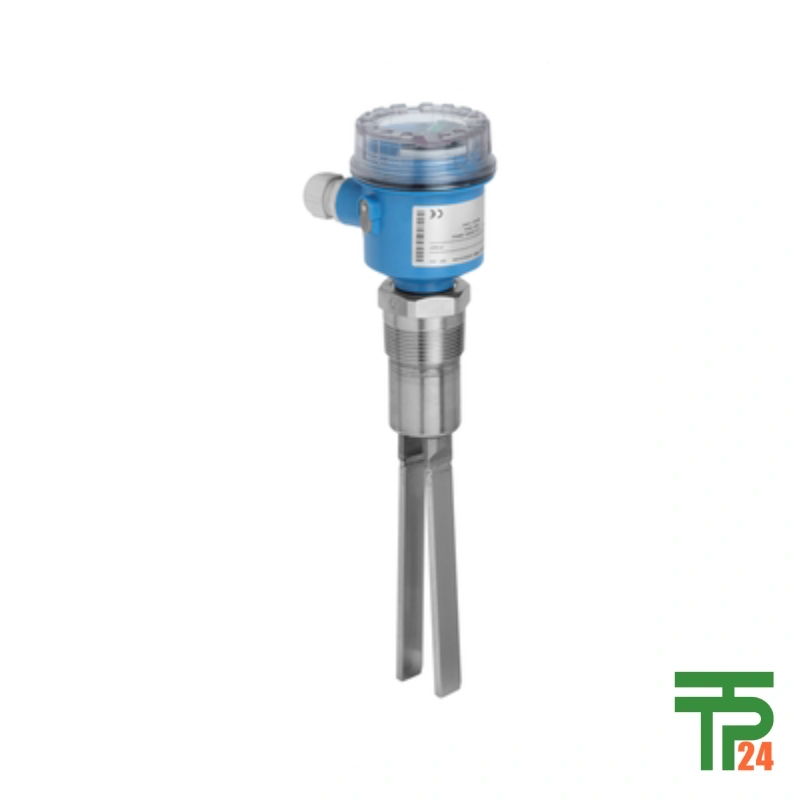

Endress+Hauser FTM50 Vibronic Point level detection Soliphant
- Process Temp: -50 to +280°C
- Process Pressure: Vacuum to 25bar
- Min. Density: 10 g/l
- Safety Approval: SIL2
Did you like this product? Add to favorites now and follow the product.
(+86) 132-6243-8118 Start Live Chat
Description
Endress+Hauser FTM50: Powder and Bulk Solids Expert
Robust Point Level Switch for Silo Applications
The Soliphant FTM50 is a remarkably robust point level switch, expertly designed for use in silos containing fine-grained or powdery solids, even those with very low bulk density.
Versatile Solution for Diverse Industrial Needs
It’s a versatile solution, suitable for a wide range of applications, backed by international certificates for safe operation in both dust and gas hazardous areas.
Dependable Operation with Varied Material Properties
The FTM50 delivers dependable operation regardless of changing material properties, ensuring consistent performance even with fluctuating density or moisture content.
Maintenance-Free Design for Long-Term Reliability
This device boasts a maintenance-free design, thanks to its lack of mechanically moved parts, promising long-term reliability and reduced operational costs.
Ideal for Cereals, Flour, Sugar, and Fine Powders
Specifically, it’s perfect for applications involving cereals, flour, cocoa, sugar, animal feed, dye powder, and chalk, providing accurate level detection.
Advanced Features for Optimal Plant Integration
With various electronic inserts including NAMUR, relay, thyristor, and PFM-signal outputs, the FTM50 ensures optimal alignment with your plant control system.
tpt24: Your Global Source for Authentic Products
For your Endress+Hauser FTM50, tpt24 is the top global online store, guaranteeing authenticity, quality, and reliable worldwide delivery.
Specifications
-
Measuring principle
Vibration Solids
-
Characteristic / Application
Compact point level switch for fine grained solids and powder
Grain size <= 10 mm (<= 0.39 in)
Fork sensor
No calibration required
Not affected by build-up or external vibration
Robust
Switch value visible from outside -
Specialities
Build-up and corrosion detection
Remote version
3 temperature versions available
SIL 2 -
Supply / Communication
10-55V DC PNP 3-wire
19-253V AC 2-wire
19…253V AC / 19V…55V DC 2 relay contact
8/16mA
NAMUR
PFM -
Ambient temperature
-50°C … 70°C
(-60°F … 160 °F) -
Process temperature
-50°C … 280°C
(-60°F … 540°F) -
Process pressure / max. overpressure limit
Vacuum … 25 bar
(Vacuum … 360 psi) -
Min. density of medium
Standard fork: 10 g/l
Short fork: 50 g/l -
Main wetted parts
selectable:
316L 3,2um
316L 0,8um
316L PTFE coated (to avoid build-up)
316L ETFE coated (to avoid corrosion) -
Process connection
Thread
R 1 1/2″
1 1/4″ NPT
1 1/2″ NPT
EN Flange DN50…DN100
ASME Flange 2″…4″
JIS Flange 50A…100A -
Process connection hygienic
Tri-Clamp ISO2852
-
Sensor length
Standard: 200mm (8″)
Short: 145mm (5.7″) -
Communication
DC PNP 2-wire
AC Thyristor
DPDT relay
8/16mA
NAMUR
PFM -
Certificates / Approvals
ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC
-
Safety approvals
SIL
-
Design approvals
EN 10204-3.1
-
Options
Glass cover
Temperature spacer
EN10204-3.1 -
Components
PFM: FTL325P, FTL375P
NAMUR: FTL325N, FTL375N
