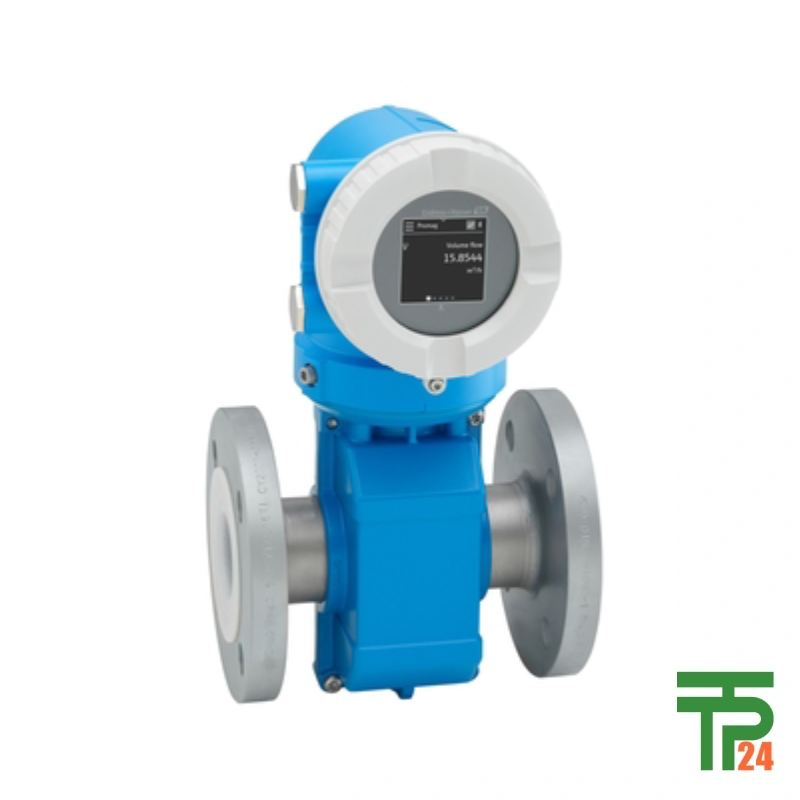

Endress+Hauser Promag P 10 Electromagnetic Flowmeter

SKU: 4695814-1-1035-844
In Stock

  • The Endress+Hauser Promag P 10 electromagnetic flowmeter is specifically engineered for precise measurement in basic process applications involving corrosive liquids.
  • Features a wide variety of wetted materials, including chemical-resistant PFA and PTFE liners, to withstand aggressive media reliably.
  • Integrated Heartbeat Technology guarantees continuous diagnostic coverage, measurement verification, and compliant operation.
  • Offers convenient mobile operation via the SmartBlue app and optional touchscreen display for simplified commissioning.
  • Delivers energy-saving flow measurement with zero pressure loss, preventing any cross-section constriction or drop in fluid energy.
  • Order genuine Endress+Hauser measurement instrumentation with expert technical support and global delivery directly from tpt24.com.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+86) 132-6243-8118 Start Live Chat

Product Support

Category:
Tags:
Brand:

Description

Introduction to Endress Hauser Promag P 10

Precision flow monitoring in corrosive chemical environments demands robust and dependable industrial instrumentation. The Endress+Hauser Promag P 10 serves as an essential electromagnetic flowmeter designed specifically for standard process applications handling aggressive liquids. By combining straightforward hardware architecture with advanced digital features, it delivers consistent accuracy under challenging operating conditions. When facility engineers require authentic process automation solutions, sourcing equipment through tpt24.com ensures professional technical consultation and reliable worldwide procurement.

Operating Principles and Process Efficiency

Operating on the electromagnetic measuring principle, this instrument provides bidirectional flow readings that remain completely independent of pressure, density, temperature, and viscosity. The device ensures energy-saving performance with zero pressure loss, as its unobstructed pipe geometry avoids any cross-section constriction. Fluid energy is preserved throughout the measurement cycle, leading to reduced operational pump costs and improved plant uptime. Furthermore, integrated Heartbeat Technology allows operators to perform continuous diagnostic verification without interrupting the active process stream.

Advanced Material Selection for Corrosive Media

Handling aggressive chemical solutions requires specialized wetted materials to prevent premature wear and ensure long-term equipment integrity. The Promag P 10 accommodates diverse application requirements through an extensive range of liner and electrode options. PFA and PTFE liners provide superior resistance against harsh acids, bases, and industrial solvents across elevated medium temperatures. Additionally, electrode configurations featuring stainless steel 316L, Alloy C22, tantalum, platinum, and titanium guarantee optimal chemical compatibility for demanding industrial pipelines.

<table> <thead> <tr> <th>Specification</th> <th>Details</th> </tr> </thead> <tbody> <tr> <td>Measuring principle</td> <td>Electromagnetic</td> </tr> <tr> <td>Product headline</td> <td>Flowmeter for basic process applications with easy-to-use operation concept.<br>Dedicated to chemical and process applications with corrosive liquids.</td> </tr> <tr> <td>Sensor features</td> <td>Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.<br>Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA.</td> </tr> <tr> <td>Transmitter features</td> <td>Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.<br>System integration with HART, Modbus RS485. Flexible operation with app and optional display.</td> </tr> <tr> <td>Nominal diameter range</td> <td>DN 15 to 600 (½ to 24")</td> </tr> <tr> <td>Wetted materials</td> <td>Liner: PFA; PTFE<br>Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium</td> </tr> <tr> <td>Measured variables</td> <td>Volume flow, conductivity, mass flow</td> </tr> <tr> <td>Max. measurement error</td> <td>Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)<br>Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)</td> </tr> <tr> <td>Measuring range</td> <td>4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)</td> </tr> <tr> <td>Max. process pressure</td> <td>PN 40, Class 300, 20K</td> </tr> <tr> <td>Medium temperature range</td> <td>Liner material PFA: –20 to +150 °C (–4 to +302 °F)<br>Liner material PTFE: –40 to +130 °C (–40 to +266 °F)</td> </tr> <tr> <td>Ambient temperature range</td> <td>Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)<br>Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)</td> </tr> <tr> <td>Sensor housing material</td> <td>DN 15 to 300 (½ to 12"“): AlSi10Mg, coated<br>DN 350 to 600 (14 to 24"”): Carbon steel with protective varnish</td> </tr> <tr> <td>Transmitter housing material</td> <td>AlSi10Mg, coated</td> </tr> <tr> <td>Degree of protection</td> <td>Standard: IP66/67, Type 4X enclosure</td> </tr> <tr> <td>Display/Operation</td> <td>2.4" LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible</td> </tr> <tr> <td>Outputs</td> <td>4-20 mA HART (active/passive), Pulse/frequency/switch output<br>Modbus RS485, 4-20 mA</td> </tr> <tr> <td>Digital communication</td> <td>HART, MODBUS RS485</td> </tr> <tr> <td>Power supply</td> <td>DC 24 V<br>AC 100 to 230 V<br>AC 100 to 230 V / DC 24 V (non-hazardous area)</td> </tr> <tr> <td>Hazardous area approvals</td> <td>ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, IND Ex, KC, JPN, UK Ex</td> </tr> <tr> <td>Metrological approvals and certificates</td> <td>Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)<br>Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)</td> </tr> <tr> <td>Pressure approvals and certificates</td> <td>PED, CRN</td> </tr> <tr> <td>Material certificates</td> <td>3.1 material</td> </tr> <tr> <td>Hygienic approvals and certificates</td> <td>Driking water approvals: ACS; NSF61, WRAS</td> </tr> </tbody> </table>

Seamless Integration and Usability

Modern industrial facilities benefit greatly from streamlined commissioning and flexible communication protocols. This flowmeter supports digital integration via HART and Modbus RS485, allowing effortless connection to existing control and monitoring architectures. Plant technicians can operate the device efficiently using mobile devices via the SmartBlue app or through the intuitive touchscreen display. Guided parameterization simplifies setup in both advanced planning stages and direct field environments, reducing installation time and engineering complexity.

Why Buy from TPT24

Sourcing specialized instrumentation requires a trusted global partner with deep technical expertise. As a specialist supplier of measurement equipment, tpt24 provides genuine Endress+Hauser products backed by professional quotation support and dependable service. Industrial clients rely on tpt24 for accurate equipment matching, secure global logistics, and responsive customer assistance. Choosing tpt24.com guarantees authentic quality and expert guidance for every flow measurement project.

Conclusion and Call to Action

The Endress+Hauser Promag P 10 remains an outstanding selection for accurate and reliable flow monitoring in corrosive liquid applications. Its advanced liner options, energy-efficient design, and smart connectivity ensure superior performance across diverse industrial sectors. Enhance your plant efficiency by requesting a quote for the Endress Hauser Promag P 10 at tpt24 today.

Specifications

SpecificationDetails
Measuring principleElectromagnetic
Product headlineFlowmeter for basic process applications with easy-to-use operation concept.
Dedicated to chemical and process applications with corrosive liquids.
Sensor featuresDiverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.
Nominal diameter: max. DN 600 (24″). All common Ex approvals. Liner made of PTFE or PFA.
Transmitter featuresOptimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
System integration with HART, Modbus RS485. Flexible operation with app and optional display.
Nominal diameter rangeDN 15 to 600 (½ to 24″)
Wetted materialsLiner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Measured variablesVolume flow, conductivity, mass flow
Max. measurement errorVolume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Max. process pressurePN 40, Class 300, 20K
Medium temperature rangeLiner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Ambient temperature rangeFlange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing materialDN 15 to 300 (½ to 12″“): AlSi10Mg, coated
DN 350 to 600 (14 to 24″”): Carbon steel with protective varnish
Transmitter housing materialAlSi10Mg, coated
Degree of protectionStandard: IP66/67, Type 4X enclosure
Display/Operation2.4″ LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible
Outputs4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
Digital communicationHART, MODBUS RS485
Power supplyDC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvalsATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, IND Ex, KC, JPN, UK Ex
Metrological approvals and certificatesCalibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure approvals and certificatesPED, CRN
Material certificates3.1 material
Hygienic approvals and certificatesDriking water approvals: ACS; NSF61, WRAS

Data Sheet

Download Data Sheet Of:Endress+hauser P 10 Proline Promag electromagnetic flowmeter
