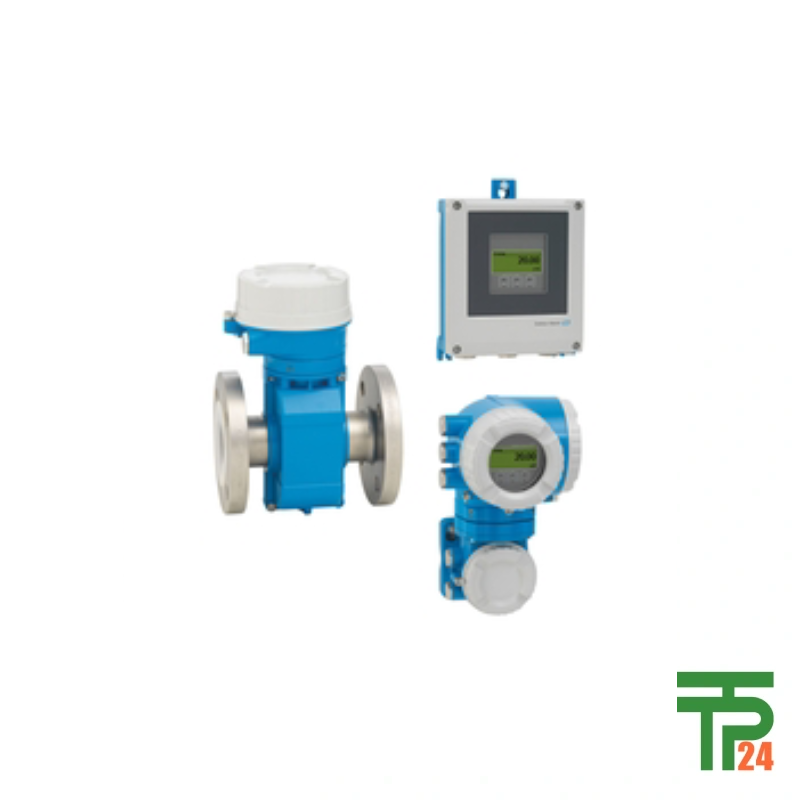

Endress+hauser P 500 Proline Promag electromagnetic flowmeter

Endress+hauser P 500 Proline Promag electromagnetic flowmeter

SKU: 4695814-1-1035-843
In Stock

  • Application: Corrosive Liquids, High Temps
  • Configuration: Remote Transmitter, WLAN
  • Materials: Wide Wetted Variety
  • Verification: Heartbeat Technology Enabled

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+86) 132-6243-8118 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Brand:

Description

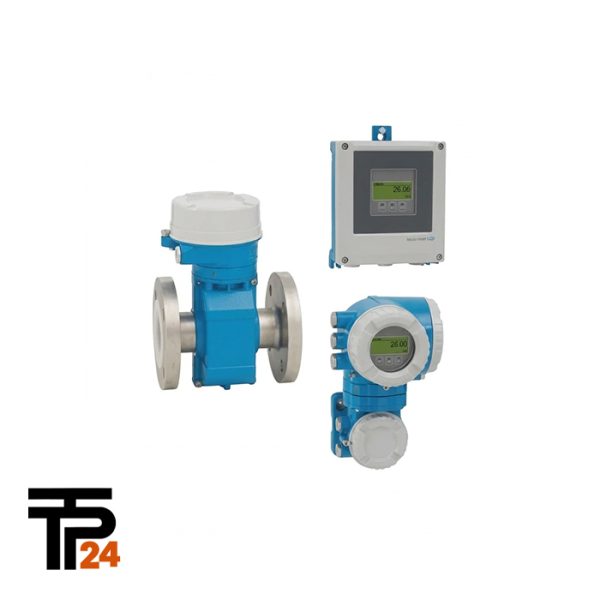

Endress+Hauser Promag P 500: Flexible Remote Process Flowmeter

Ideal for Corrosive Liquids, High Temperatures

The Endress+Hauser Promag P 500 is engineered for chemical and process applications involving corrosive liquids and the highest medium temperatures. Its innovative remote transmitter design significantly maximizes installation flexibility and enhances operational safety in the most demanding environments. Featuring robust Heartbeat Technology, the Promag P 500 ensures continuous compliance and unwavering process safety, making it an exceptional choice for critical industrial processes.

Enhanced Safety with Remote Transmitter Design

This flowmeter is specifically designed to provide enhanced safety and flexibility through its innovative remote transmitter. This configuration is particularly beneficial in environments with extreme temperatures or potentially hazardous conditions, allowing the transmitter to be placed at a safe distance from the sensor. The Promag P 500 is dedicated to chemical and process applications with corrosive liquids and very high medium temperatures, offering a wide range of wetted materials to ensure compatibility with diverse and aggressive media.

Energy-Efficient Measurement, No Pressure Drop

The Promag P 500 embodies Endress+Hauser’s commitment to energy efficiency by providing flow measurement without any pressure loss. Its design avoids cross-section constriction, ensuring that the fluid’s energy is preserved throughout the process. The device’s lack of moving parts guarantees maintenance-free operation, which translates to lower operational costs and improved plant availability. This efficiency is vital for continuous chemical processing, optimizing resource use and reducing overall plant expenses.

Versatile Applications and Wetted Materials

Demonstrating exceptional versatility, the Promag P 500 offers a wide array of wetted materials, including PFA and PTFE liners, and various electrode materials like Alloy C22, Tantalum, and Platinum. This broad selection ensures compatibility with an extensive range of corrosive media and high-temperature applications, from standard chemical processing to highly specialized industrial tasks. Its capability to handle nominal diameters up to DN 600 (24″) further extends its applicability across large-scale industrial operations.

Unprecedented Access to Process Information

The Promag P 500 provides full access to process and diagnostic information through numerous, freely combinable I/Os and advanced fieldbus communication options like PROFIBUS, FOUNDATION Fieldbus, and PROFINET. This connectivity, along with a backlit display featuring touch control and WLAN access, significantly reduces complexity and variety in system integration. Users can gain deep insights into process performance and device status, enabling proactive maintenance and optimized control strategies.

Integrated Verification with Heartbeat Technology

Integrated verification through Heartbeat Technology is a cornerstone of the Promag P 500’s functionality, guaranteeing compliance and process safety at all times. This advanced diagnostic tool allows for reliable device verification, confirming its operational integrity and accuracy without requiring process shutdown. This capability is essential for maintaining stringent quality standards and ensuring the reliability of measurements in critical chemical applications, supporting regulatory adherence and minimizing operational risks.

Specifications

  • Measuring principle

    Electromagnetic

  • Product headline

    High-temperature flowmeter for process applications as remote version with up to 4 I/Os.
    Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

  • Sensor features

    Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
    Nominal diameter: max. DN 600 (24″). All common Ex approvals. Liner made of PTFE or PFA.

  • Transmitter features

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

  • Nominal diameter range

    DN 15 to 600 (½ to 24″)

  • Wetted materials

    Liner: PFA; PTFE
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum;
    Titanium; Duplex 1.4462 (UNS S31803)

  • Measured variables

    Volume flow, conductivity, mass flow

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

  • Measuring range

    4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

  • Max. process pressure

    PN 40, Class 300, 20K

  • Medium temperature range

    Liner material PFA: –20 to +150 °C (–4 to +302 °F)
    Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
    Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

  • Ambient temperature range

    Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
    Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)

  • Sensor housing material

    DN 15 to 300 (½ to 12″): AlSi10Mg, coated
    DN 350 to 600 (14 to 24″): Carbon steel with protective varnish
    Sensor connection housing (standard): AlSi10Mg, coated
    Sensor connection housing (option): 1.4409 (CF3M) similar to 316L

  • Transmitter housing material

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • Degree of protection

    Sensor remote version (standard): IP66/67, type 4X enclosure
    Transmitter remote version: IP66/67, Type 4X enclosure

  • Display/Operation

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • Outputs

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Inputs

    Status input
    4-20 mA input

  • Digital communication

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

  • Power supply

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Hazardous area approvals

    ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC

  • Product safety

    CE, C-tick, EAC marking

  • Functional safety

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Metrological approvals and certificates

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

  • Marine approvals and certificates

    LR approval, DNV approval, ABS approval, BV approval

  • Pressure approvals and certificates

    PED, CRN

  • Material certificates

    3.1 material

  • Hygienic approvals and certificates

    ACS, NSF 61, WRAS
