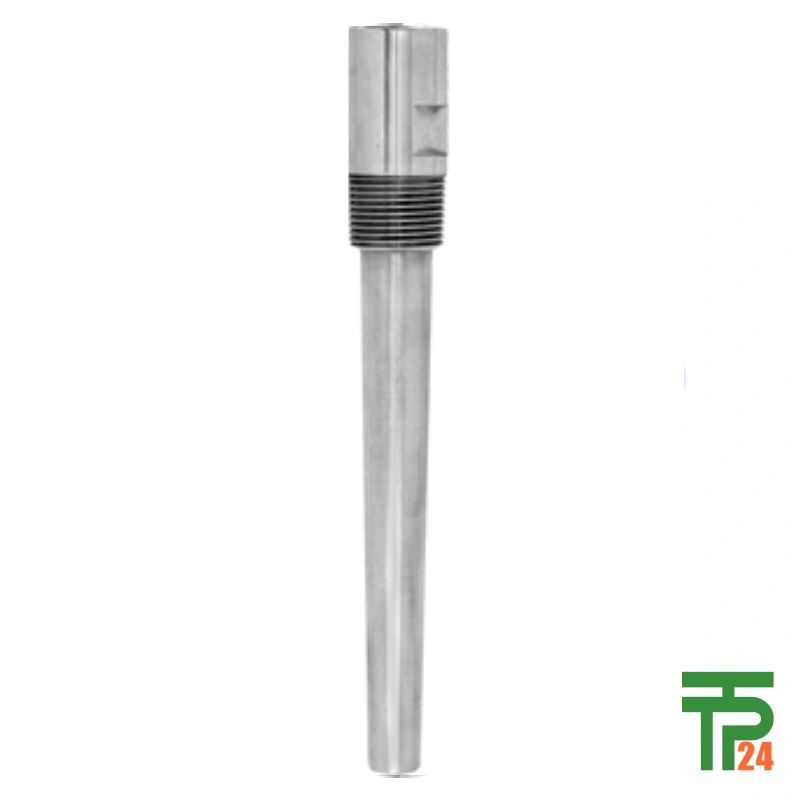

Endress+Hauser TA557 Barstock thermowell

Description

Endress+Hauser TA557: Unyielding Conical Thermowell Strength

The Endress+Hauser TA557: Unyielding Conical Thermowell Strength stands as a testament to robust engineering, meticulously designed for the most challenging industrial environments. In applications where process conditions are exceptionally harsh, particularly those involving heavy duties, the precise calculation of a thermowell’s load capacity is not merely a preference but a critical necessity. The TA557’s inherent strength, combined with extensive non-destructive material tests—including dye penetration, ultrasound, helium leakage, and pressure endurance checks—proves the unparalleled quality of its materials and processing. This ensures reliable, long-term protection for temperature sensors, even under the most extreme operational demands, while allowing for convenient sensor exchange during operation.

Engineered for Rigorous Process Conditions

The TA557 is expertly engineered for rigorous process conditions, making it an indispensable component in industries where compromise is not an option. Its design provides reliable and long-term protection for temperature sensors against the harshest elements, ensuring that critical measurement data remains accurate and consistent. This thermowell is especially suited for applications characterized by high pressures, extreme temperatures, and aggressive media, where maintaining the integrity of the measurement point is paramount. Furthermore, its design intelligently allows for the sensor insert to be exchanged even while the process is operational, minimizing downtime and maximizing efficiency in continuous industrial processes.

Superior Quality Via Extensive Material Testing

Assuring peak performance, the TA557 benefits from superior quality via extensive material testing. Every unit undergoes a comprehensive suite of non-destructive tests to rigorously prove the quality of its materials and the precision of its manufacturing processes. These vital evaluations include dye penetration tests to detect any surface discontinuities, ultrasound tests for internal structural integrity, helium leakage tests to confirm hermetic sealing, and pressure endurance tests to validate its robust performance under anticipated operational pressures. This meticulous quality assurance protocol guarantees that the TA557 meets the highest standards for durability and reliability in demanding applications.

Flexible Dimensions for Optimal Integration

A key advantage of the TA557 is its flexible dimensions for optimal integration, allowing for seamless adaptation to diverse system requirements. Both the extension and immersion lengths can be precisely selected to ensure optimal sensor placement and protection within your specific process. Furthermore, the bar dimensions can be chosen to perfectly match the application’s unique needs, ensuring perfect fit and optimal performance. This high degree of customization guarantees that the thermowell functions optimally in its designated role, whether in standard setups or highly specialized industrial configurations.

Conical Stem for Enhanced Flow Dynamics

Distinguished by its conical stem for enhanced flow dynamics, the TA557 is engineered for superior performance. This specific stem shape, combined with options for straight or conical tips, contributes to improved fluid flow around the thermowell, which can enhance responsiveness and accuracy in temperature measurements by reducing thermal lag. This design is particularly advantageous in applications where precise temperature monitoring is critical. The robust conical stem also provides exceptional mechanical strength, ensuring durability and stability in high-velocity or turbulent process media, making it an ideal choice for challenging installations.

Broad Material and Connection Adaptability

The TA557 offers broad material and connection adaptability, providing extensive compatibility across various industrial systems. It is available with a wide selection of medium contact materials, including high-performance stainless steel grades such as 1.4401 (316), 1.4404 (316L), and 1.4571 (316Ti), chosen for their excellent corrosion resistance. For even harsher environments, specialized alloys like 2.4819 (Alloy C276) and 2.4360 (Alloy 400) are available. The thermowell features diverse process connections, including robust threaded options like 1″ NPT and a comprehensive range of ASME flange standards (e.g., 1″, 1 1/2″, 2″ across 150, 300, 600 RF and RTJ ratings), ensuring secure and leak-free integration.

tpt24: Your Trusted Global Partner

For acquiring the Endress+Hauser TA557, tpt24: your trusted global partner, stands as the undisputed premier online store worldwide. We are committed to providing customers with an absolute guarantee of product authenticity and superior quality for every TA557. Our dedication extends to ensuring that your essential heavy-duty thermowell is delivered promptly and reliably, no matter your location, through our comprehensive worldwide shipping services. Trust tpt24 for seamless procurement of high-performance instrumentation and unparalleled customer service, ensuring your operations receive the best.

Advanced Specifications for Demanding Performance

The TA557 boasts advanced specifications for demanding performance, underscoring its capability in extreme industrial settings. As a bar stock thermowell with a metric style and round extension, it’s built for resilience. It features a standard immersion length of 1000 mm (39.37″), with the capability to extend up to an impressive 5,000 mm (196.85″) upon request, accommodating varied installation depths. With a thermowell root diameter of 25 mm (0.98″) and surface finishing options below 0.8 μm or 1.6 μm (Ra) for wetted parts, it ensures precision and longevity. It operates across a wide temperature range from -200 °C to 700 °C (-328 to 1,292 °F) and can withstand static process pressures up to 500 bar (7252 psi), maintaining 300 bar (4351 psi) at 400 °C. The head connection is a 1/2″ NPT internal thread for secure sensor integration.
