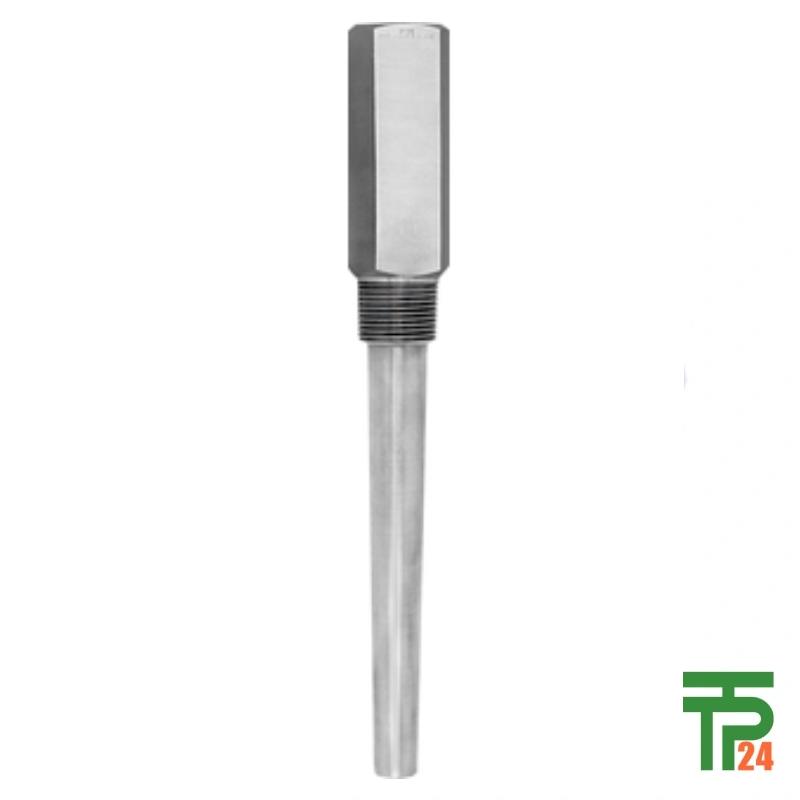

Endress+Hauser TA566 Barstock thermowell

Description

Endress+Hauser TA566: Precision Bar Stock Thermowell Engineering

The Endress+Hauser TA566: Precision Bar Stock Thermowell Engineering is specifically developed for demanding industrial applications where operational integrity is paramount. In heavy-duty environments, the precise calculation of a thermowell’s load capacity is essential for guaranteeing safety and measurement accuracy. The TA566’s robust construction is meticulously validated through a comprehensive suite of non-destructive material tests, including dye penetration, ultrasound, helium leakage, and pressure endurance tests. These thorough evaluations confirm the superior quality of materials and processing, ensuring reliable, long-term protection for temperature sensors even in the most challenging operational settings.

Tailored for Heavy Duty Application Needs

The TA566 is expertly tailored for heavy duty application needs, primarily serving as a protective housing for resistance and thermocouple thermometers. In industries where equipment failure can have severe consequences, its design ensures that critical temperature sensing instruments are shielded from extreme pressures, high temperatures, and corrosive media. The thermowell’s stem can be configured as either straight or conical, allowing users to optimize the response time for more accurate and rapid temperature readings. This focus on durability and precision makes the TA566 an indispensable component for continuous, reliable temperature monitoring.

Rigorous Testing Ensures Uncompromised Quality

Ensuring the highest operational standards, the TA566’s unwavering quality is confirmed by rigorous testing ensuring uncompromised quality. Every thermowell undergoes an extensive array of non-destructive material tests to verify the integrity of its components and the precision of its manufacturing. These vital tests include dye penetration checks for surface flaws, ultrasound examinations to detect internal defects, helium leakage tests to guarantee hermetic sealing, and pressure endurance tests to validate its performance under extreme pressure conditions. This meticulous quality assurance guarantees the TA566 will perform reliably.

Versatile Dimensions Suit Process Requirements

The TA566 offers significant versatile dimensions to suit process requirements, providing customers with the flexibility to customize the thermowell precisely for their unique applications. Users can select the extension and immersion lengths that best fit their specific process setup, ensuring optimal sensor placement and effective protection. Furthermore, the thermowell root diameter options, including 12.7 mm (1/2″), 22 mm (0.87″), and 25 mm (0.98″), can be chosen according to process demands, guaranteeing a perfect fit and optimal performance. This adaptability ensures seamless integration into diverse systems.

Threaded Process Connection For Security

Featuring a threaded process connection for security, the TA565 ensures a reliable and robust interface with process piping and vessels. The standard process connection is a 1″ NPT thread, a widely recognized and dependable standard for industrial applications, providing a strong mechanical seal crucial for high-pressure environments. The thermowell stem shape can be straight or conical, allowing users to optimize for response time based on specific process flow dynamics. This combination of a secure threaded connection and adaptable stem shape makes the TA566 a practical choice for heavy-duty applications.

Extensive Material Options Enhance Durability

The TA562 provides a wide material choice for durability, catering to a wide spectrum of chemical compatibility and operational demands. It is available in several standard materials renowned for their excellent corrosion resistance, including robust stainless steel grades such as 1.4401 (316), 1.4404 (316L), and 1.4571 (316Ti). These materials are selected for their proven performance in aggressive media and challenging process environments. Additionally, customers can specify different grades of surface finishing for wetted parts, with options for Ra values less than 0.8 μm or less than 1.6 μm.

tpt24: Your Premier Global Store

For the Endress+Hauser TA566, tpt24: your premier global store, is recognized as the world’s leading online destination for high-quality instrumentation. We are dedicated to supplying this exceptional thermowell with an unconditional guarantee of product authenticity and superior quality. Our commitment ensures that you will receive your TA566 reliably, regardless of your geographical location, supported by comprehensive worldwide delivery services. Choose tpt24 for your critical instrumentation needs, securing excellence, authenticity, and unparalleled service for all your heavy-duty application requirements.

Optimized Performance With Varied Tips

The TA566 is meticulously engineered for optimized performance with varied tip options, offering essential flexibility to enhance measurement accuracy and responsiveness. Customers can select between a straight tip or a conical tip shape, allowing for fine-tuning based on specific process flow dynamics and temperature sensing requirements. The thermowell is available with a maximum standard immersion length of 900 mm (35.43″), with options extending up to 5,000 mm (196.85″) upon request. It operates within an extensive temperature range of -200 °C to 700 °C (-328 to 1,292 °F), engineered for robust performance.
