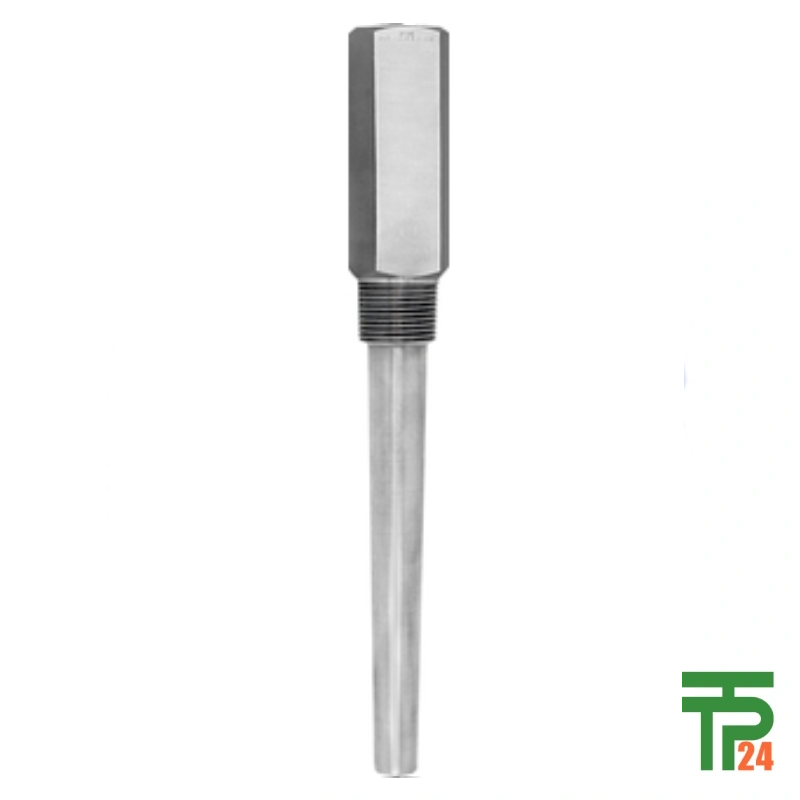

Endress+Hauser TA560 Barstock thermowell

Description

Endress+Hauser TA560: Robust Threaded Thermowell Excellence

The Endress+Hauser TA560: Robust Threaded Thermowell Excellence embodies precision engineering for the most demanding industrial applications. Designed as a bar stock thermowell, the TA560 is built to withstand extreme process conditions, particularly in heavy-duty scenarios where calculating a thermowell’s load capacity is critical for safety and accuracy. Its construction is rigorously validated through a comprehensive suite of non-destructive material tests, including dye penetration, ultrasound, helium leakage, and pressure endurance checks. These stringent quality controls ensure the superior quality of its materials and processing, providing reliable, long-term protection for resistance and thermocouple thermometers in high-stress environments.

Designed for Heavy-Duty Application Environments

The TA560 is specifically designed for heavy-duty application environments, making it an ideal choice for industries facing challenging process conditions. It offers reliable and long-term protection for temperature sensors, ensuring they remain accurate and functional even under high pressures, extreme temperatures, and exposure to aggressive media. This thermowell is primarily intended for use with resistance and thermocouple thermometers, safeguarding these critical instruments in operations where integrity and continuous measurement are paramount. Its robust design ensures the sensor’s longevity and accuracy, minimizing downtime and maintenance requirements in demanding industrial settings.

Proven Quality Through Rigorous Material Tests

Quality is non-negotiable, and the TA560 ensures proven quality through rigorous material tests. Each thermowell undergoes an extensive series of non-destructive material examinations to verify the integrity of its raw materials and the precision of its manufacturing. These include dye penetration tests to detect surface flaws, ultrasound tests to identify internal imperfections, helium leakage tests to confirm hermetic sealing, and pressure endurance tests to validate its performance under maximum operating pressures. This comprehensive testing regimen guarantees that the TA560 delivers exceptional durability and reliability, meeting the highest standards for critical process applications.

Customizable Dimensions for Application Specificity

The TA560 provides remarkable customizable dimensions for application specificity, allowing for precise adaptation to various process requirements. The extension and immersion lengths can be chosen to perfectly align with optimal sensor placement and protection. Furthermore, users can select from different bar dimensions, including 20 mm (0.79″) and 22 mm (0.87″) root diameters, ensuring a seamless fit and optimal performance within diverse systems. This flexibility allows for integration into a wide array of setups, ensuring the thermowell perfectly suits its intended role and delivers accurate, consistent measurements.

Hexagonal Extension for Secure Installation

A distinguishing feature of the TA560 is its hexagonal extension for secure installation, providing a practical advantage during mounting and maintenance. This design element ensures a positive grip for wrenches, facilitating easier and more secure installation and removal, particularly in confined spaces or challenging orientations. This hexagonal form contributes to the overall robustness of the thermowell, enhancing its mechanical stability and ensuring a reliable connection to the process. Combined with its threaded process connection, the hexagonal extension streamlines the installation process and reinforces the thermowell’s secure positioning within the system.

Wide Choice of Materials and Finishing

The TA560 offers a wide choice of materials and finishing, ensuring broad adaptability for diverse industrial needs. It is available in high-grade stainless steels such as 1.4401 (316), 1.4404 (316L), and 1.4571 (316Ti), known for their excellent corrosion resistance in various media. Additionally, different grades of surface finishing for the wetted parts are available, including Ra values of less than 0.8 μm (31.50 μin) and less than 1.6 μm (63.00 μin). These options enhance resistance to fouling and corrosion, contributing to extended service life and sustained measurement accuracy in aggressive or sensitive applications.

tpt24: Your Trusted Global Partner

For acquiring the Endress+Hauser TA560, tpt24: your trusted global partner, stands as the undisputed premier online store worldwide. We are committed to providing customers with an absolute guarantee of product authenticity and superior quality for every TA560. Our dedication extends to ensuring that your essential heavy-duty thermowell is delivered promptly and reliably, no matter your location, through our comprehensive worldwide shipping services. Trust tpt24 for seamless procurement of high-performance instrumentation and unparalleled customer service, ensuring your operations receive the best.

Broad Operational Range and Specifications

The TA560 boasts a broad operational range and specifications, confirming its capability in extreme industrial settings. As a bar stock thermowell with a metric style and a hexagonal extension, it is built for resilience. It features a standard immersion length of 900 mm (35.43″) and can be extended up to an impressive 5,000 mm (196.85″) upon request, accommodating varied installation depths. The thermowell offers root diameters of 20 mm (0.79″) or 22 mm (0.87″) and can have straight or conical tip shapes. It operates across a wide temperature range from -200 °C to 700 °C (-328 to 1,292 °F) and can withstand static process pressures up to 500 bar (7252 psi), maintaining 300 bar (4351 psi) at 400 °C. Its head connection is a 1/2″ NPT internal thread for secure sensor integration, and the process connection is a 3/4″ NPT thread.
