Hanna HI801-01 iris Visible Spectrophotometer

Description

Introducing the Hanna HI801-01 Iris Spectrophotometer

The Hanna HI801-01 iris Spectrophotometer is an advanced, portable device designed for precise and versatile chemical analysis. It stands out from traditional photometers by its ability to measure the entire spectrum of visible light, offering users a comprehensive range of analytical methods. This compact meter is packed with features that ensure both exceptional performance and ease of use, making it an indispensable tool for a variety of industries. From professional laboratories to water treatment facilities, the iris provides the accuracy and reliability required for critical testing. The Hanna HI801-01 iris is truly a next-generation instrument, combining sophisticated technology with a user-friendly design.

A key innovation of the iris is its advanced split-beam optical system, which lies at the heart of the instrument. This system, engineered with the highest quality materials, guarantees accurate readings and a long operational life. Unlike a typical spectrophotometer, the iris’s design incorporates numerous small improvements to create unprecedented performance in a portable device. The system utilizes a tungsten-halogen lamp, a broad-band light source, essential for measuring a wide variety of wavelengths. The lamp is pre-aligned, so replacements can be easily installed without the need for manual realignment, saving time and effort. A built-in beam splitter ensures that measurements compensate for any light source fluctuations, improving stability and saving battery life.

Exceptional Performance and Superior Usability

The iris spectrophotometer offers a narrow bandwidth of 5nm, which is crucial for accurately measuring narrow peaks and achieving good spectral resolution. This feature allows for precise measurement of sharp absorbance peaks, while a high resolution of 1nm provides greater sensitivity by getting closer to the sample’s maximum light absorption wavelength. Additionally, the instrument’s optical system is designed to minimize stray light, which can lead to inaccurate readings. The unique design keeps this issue to a minimum, ensuring better linearity and accuracy. The concave grating is another key element that turns polychromatic white light into a dispersed rainbow spectrum, allowing for the selection of specific wavelengths. This superior design minimizes stray light and creates a more compact optical system for a portable meter.

Upon startup, the meter performs an automatic system check to confirm the light source is working properly and to calibrate the grating position. This built-in feature provides confidence in every measurement by ensuring the meter is always operating correctly without requiring additional user tests. The HI801-01 also features a universal cuvette holder that accommodates various cuvette types, including 22mm round and 5cm rectangular ones. Adapters are also available for 13mm, 16mm, and 10mm cuvettes, and the meter can automatically detect and display the programmed cuvette size to ensure the correct path length is used for calculations. This flexibility makes the iris suitable for a wide range of testing scenarios.

Intuitive Interface and Extensive Features

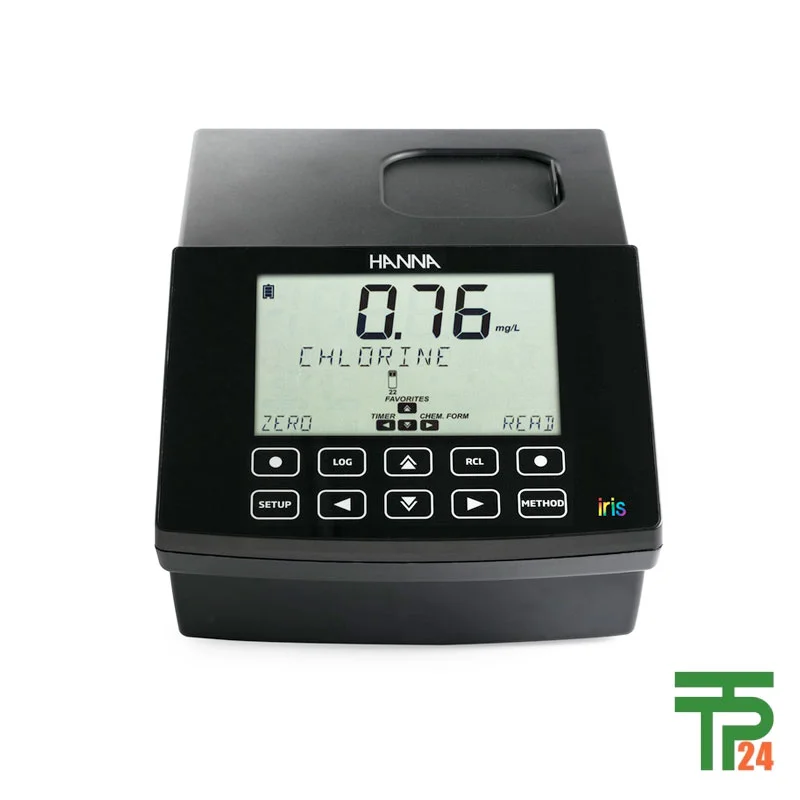

The user interface of the iris is designed to be seamless and intuitive, making lab work a breeze. It features a large, high-contrast 6-inch LCD display that is easy to read, even in outdoor conditions, and has a wide viewing angle. A capacitive touchpad with dedicated buttons for functions like setup, logging, and methods provides effortless menu navigation. The touchpad even works through gloves, adding convenience in a lab setting. For frequent use, the “favorite methods” feature allows users to save and quickly access their most used methods directly from the home screen, saving valuable time.

The HI801-01 comes pre-programmed with over 85 factory methods for common chemical analyses and can store up to 150 factory methods in total. Methods can be easily updated via a computer or a flash drive, and the meter provides reagent codes for easy reordering. Additionally, the meter allows for the creation of up to 100 user-defined methods, providing exceptional versatility and customization. These custom methods can include up to 10 calibration points, utilize up to 5 simultaneous wavelengths, and incorporate up to 5 reaction timers, allowing for extensive modifications to suit specific needs. This flexibility eliminates the limitations often found with standard photometers.

Designed for Diverse and Dynamic Environments

The Hanna HI801-01 is built to withstand dynamic environments. It is powered by a rechargeable lithium-ion battery that provides power for approximately 3,000 measurements or 8 hours of continuous use, ensuring it can last well over a day of field work without needing a power supply. The meter can be quickly recharged with a dedicated fast-charging adapter. The ability to operate without a constant power source makes it highly portable and ideal for on-site testing in various applications. The meter also boasts a spectral range of 340nm to 900nm, which allows it to comply with a wide range of analytical methods from different regulatory organizations and associations, making it suitable for a multitude of applications.

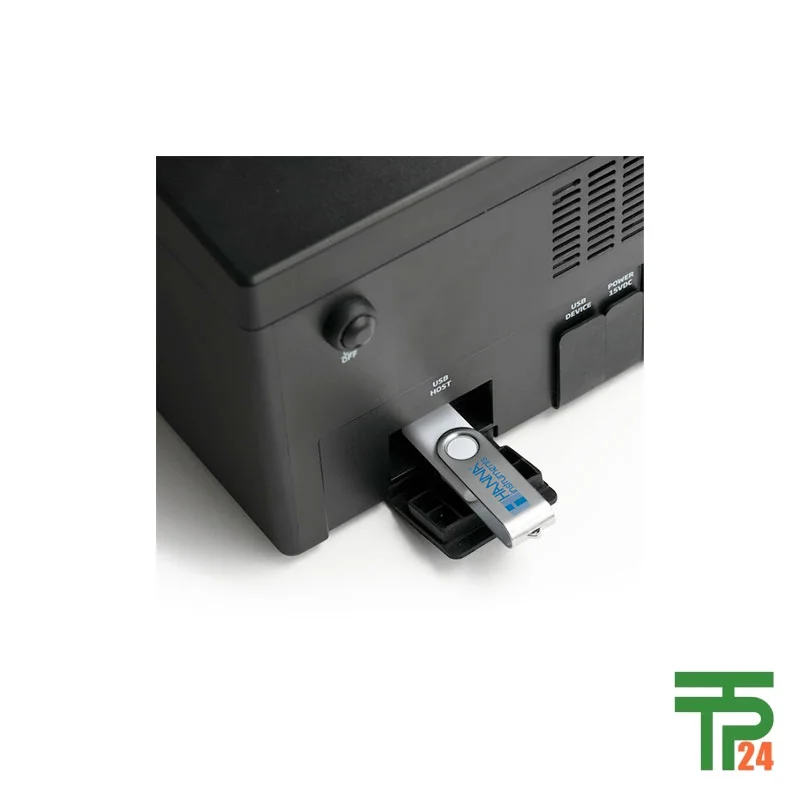

Data management with the iris is straightforward and hassle-free. The meter can store up to 14,000 measurements in its memory. Users can easily transfer this data to a PC or Mac without any special software, simply by plugging in a flash drive or connecting it directly to a computer. Data can be exported as a CSV or PDF file, offering flexibility and ensuring data integrity. This feature is particularly useful for maintaining detailed records and ensuring traceability of results. The meter also allows for the programming of a meter ID and sample ID to be saved along with the measurements, further enhancing data organization. The USB-A port supports flash drives for data transfer and method updates, while the USB-B port is specifically for a direct computer connection.

Versatility in a Wide Range of Uses

The versatility of the Hanna HI801-01 iris Spectrophotometer makes it ideal for a broad range of professional applications. Its capability to measure the full visible light spectrum, from 340nm to 900nm, enables it to perform a vast number of chemical analyses. In water treatment facilities, it can be used for measuring parameters like chlorine, ammonia, and turbidity, which are critical for ensuring water quality and safety. Environmental testing laboratories can utilize the device for a variety of analyses, including testing for nitrates, phosphates, and heavy metals. The ability to create custom methods with up to 10 calibration points is particularly beneficial for developing unique testing procedures tailored to specific needs.

A Trusted Tool for Scientific Work

The precision and reliability of the Hanna HI801-01 iris are further enhanced by its ability to work with multiple cuvette types and sizes, offering unmatched flexibility for various sample volumes and concentrations. For example, the use of rectangular cuvettes with a longer path length allows for higher sensitivity in readings of low absorbance samples. This is a crucial feature in research and development settings where minute changes need to be accurately detected. The meter is also designed for field use, with a long-lasting rechargeable battery and the ability to operate in temperatures from 0 to 50 °C. This makes it a dependable tool for on-site testing and mobile laboratories.

Global Availability and Unmatched Support

The Hanna HI801-01 iris Spectrophotometer, a product of Hanna Instruments, is a testament to the company’s commitment to quality and innovation. It is supplied with all the necessary components to begin testing, including cuvettes, a USB cable, a power adapter, and a manual. The availability of field-upgradeable firmware ensures that the meter stays current with the latest methods and improvements. The tpt24 online store is the leading global provider of this exceptional product, offering it with a guarantee of authenticity and quality, and ensuring delivery to customers in any country. This makes the purchase and acquisition of the iris effortless for professionals and organizations worldwide.

Comprehensive Specifications and Key Features

The HI801-01 iris is a feature-rich and reliable spectrophotometer designed to meet the demands of modern analytical work. Its optical system and user interface combine to provide accurate results with minimal effort. This product’s comprehensive design, from its durable build to its advanced data management capabilities, makes it an excellent investment for any laboratory or field testing application. The key features of the iris make it a superior choice for those who need flexibility, accuracy, and convenience in a single device. The instrument’s versatility, combined with its robust construction and advanced technology, makes it a top-tier tool for a multitude of scientific applications.
