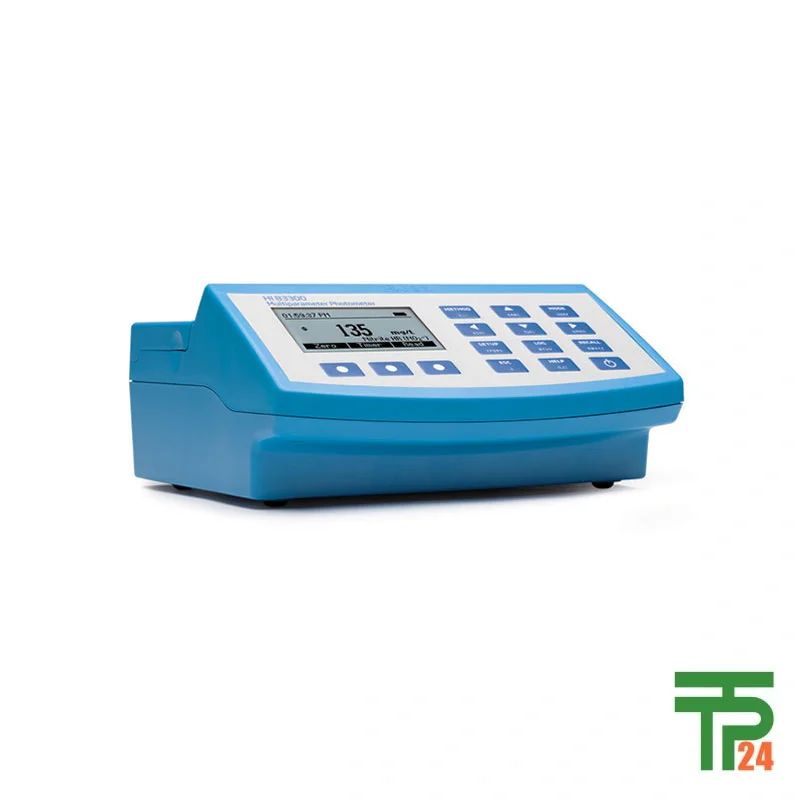

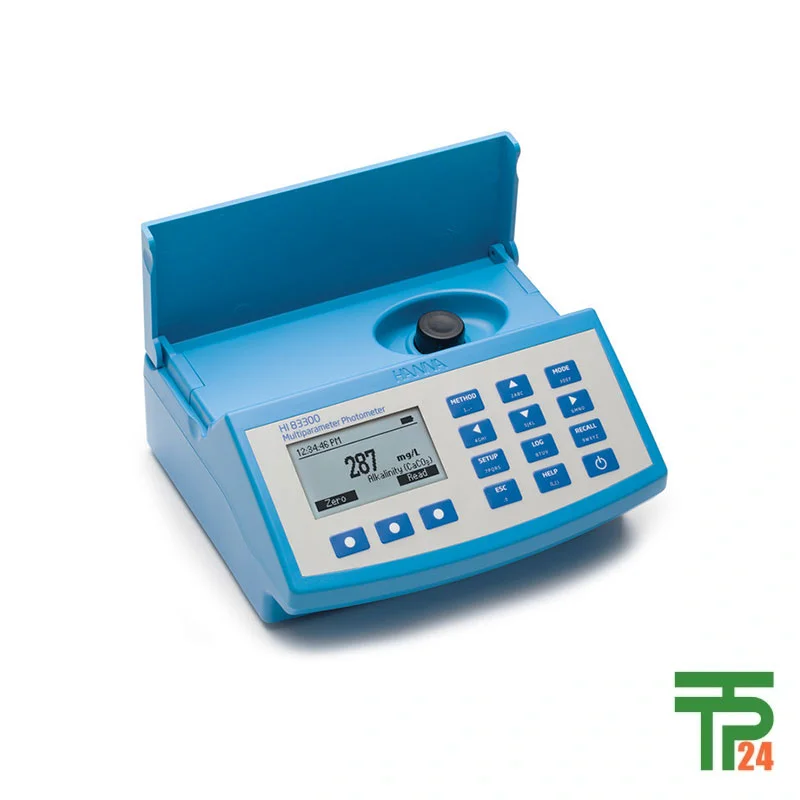

Hanna HI83300-01 Multiparameter Benchtop Photometer and pH meter

Description

Advanced Multiparameter Benchtop Photometer and pH Integration

The Hanna HI83300-01 is a compact, highly versatile multiparameter benchtop photometer designed for laboratory and field use. Its combination of advanced optical technology and integrated pH measurement makes it one of the market’s most innovative and efficient instruments. By incorporating a reference detector, focusing lens, and narrow band interference filters, this device ensures measurement accuracy by eliminating errors caused by light source fluctuations and cuvette imperfections. With 60 programmed methods for 37 key water quality parameters, it supports a diverse set of analytical needs, from aluminum to zinc detection. Moreover, its dual-function design saves valuable laboratory space by combining photometric analysis with professional digital pH measurement, making it perfect for laboratories, environmental research centers, educational institutions, and industrial quality control environments.

Innovative Optical System with Exceptional Performance

The HI83300’s optical system is engineered with precision to achieve unparalleled photometric performance. The use of high-efficiency LEDs ensures superior luminous output with minimal power consumption and heat generation, unlike traditional tungsten lamps. Beam-splitter technology enables simultaneous use of light for absorbance reading and reference detection, compensating for drift caused by ambient changes or component heating. Narrow band interference filters deliver wavelength accuracy within ±1 nm and transmit up to 95% of LED light, ensuring stable, reliable readings even at low absorbance. The 25 mm path length cuvette combined with a focusing lens maximizes light yield, reduces optical errors, and enhances sensitivity, especially for trace-level measurements in water quality testing.

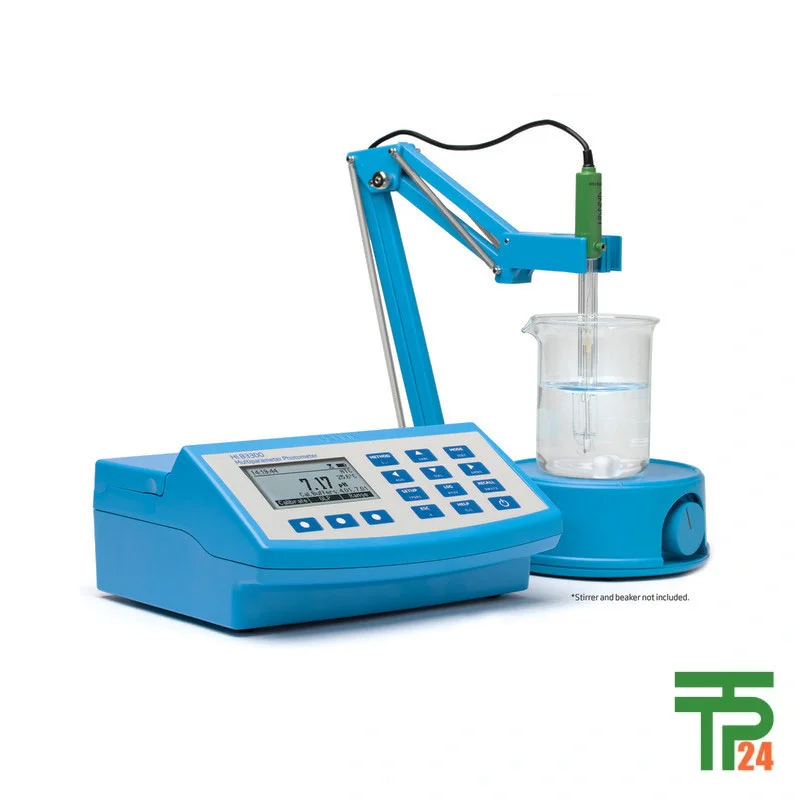

Integrated Digital pH Electrode and Temperature Compensation

Beyond photometric measurements, the HI83300 acts as a professional digital pH meter with automatic temperature compensation. The digital pH electrode, equipped with an internal microchip, stores individual calibration data to allow hot-swapping without recalibration. Calibration consistency is ensured via GLP (Good Laboratory Practice) tracking, which records calibration date, time, buffers, slope, and offset. The built-in thermistor enables precise, real-time temperature measurement at the probe tip, maintaining reading accuracy in varying conditions. The pH CAL Check™ function alerts users to possible calibration issues, reinforcing measurement reliability for both environmental monitoring and laboratory analysis.

Absorbance Mode and Custom Method Development

For laboratories requiring specialized protocols, the absorbance mode allows users to select one of five fixed wavelengths (420 nm, 466 nm, 525 nm, 575 nm, 610 nm) and develop their own concentration-versus-absorbance curves. This functionality is ideal for research environments, industrial R&D, and educational applications, enabling study of Beer-Lambert law principles. Hanna’s exclusive CAL Check™ standards validate both the light source and detector performance. This mode supports user-supplied chemistries, enabling measurement customization for process optimization, materials testing, and academic teaching demonstrations.

Data Logging, Export and Connectivity Options

The HI83300 supports on-demand logging of up to 1000 readings for both photometric and pH measurements. Each record can include Sample ID and User ID, enhancing traceability and compliance. Data can be exported via the USB-A host port to a standard flash drive or connected directly to a PC through the micro USB-B port, with results saved in .CSV format for seamless integration into spreadsheet software. Combined with a backlit 128 x 64 pixel graphic LCD featuring on-screen help and virtual keys, the interface ensures intuitive ease of use whether in the lab or out in the field.

Applications Across Multiple Water Quality Sectors

The Hanna HI83300-01 is perfectly suited for applications in environmental monitoring, drinking water quality assurance, wastewater analysis, swimming pool maintenance, agricultural irrigation control, and industrial effluent testing. Municipal water treatment plants can use it to verify residual disinfectant and monitor potential contaminants. Food and beverage producers benefit from its precision in monitoring process water. Aquaculture facilities employ it to maintain optimal pond chemistry, while mining operations can track water discharge compliance. Educational laboratories can leverage its absorbance mode to teach core photometric and pH measurement principles. Thanks to its compact, dual-purpose functionality, it’s suitable for both routine operations and advanced research.

Portability, Power Efficiency and Robust Design

Designed for portability, the HI83300 operates on an internal 3.7 VDC Li-polymer rechargeable battery, capable of delivering over 500 photometric measurements or 50 hours of continuous pH measurement. The instrument can also be powered via USB 2.0 with the included adapter. Housed in a durable, lightweight casing (1.0 kg), and operating reliably in environments ranging from 0 to 50°C, it is built to withstand the rigors of both laboratory and field work. The cuvette cover reduces stray light interference, the battery status indicator informs of power levels, and ergonomic dimensions make it easy to integrate into tight bench spaces.
