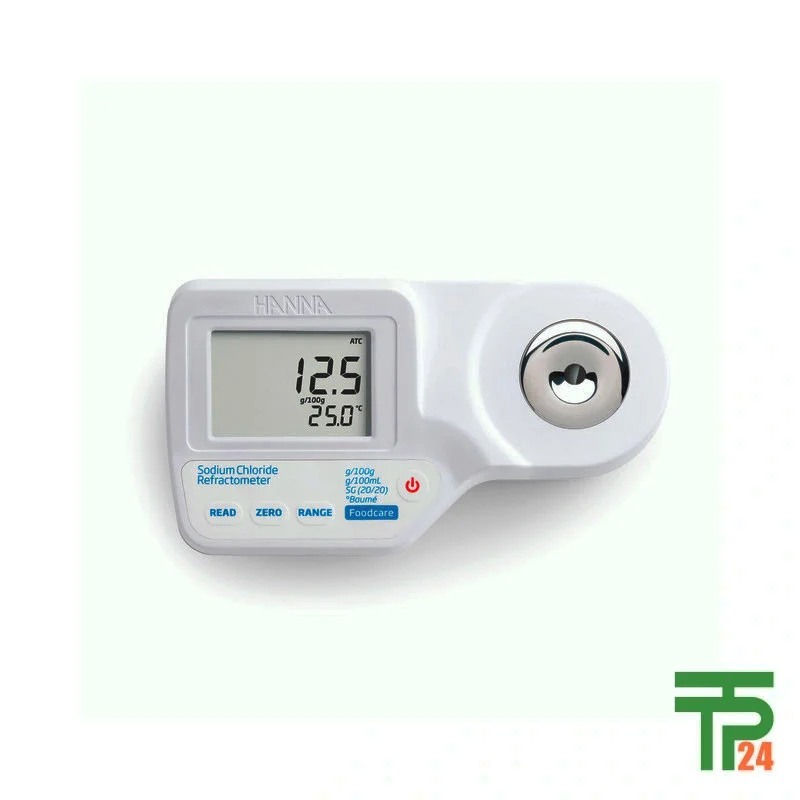

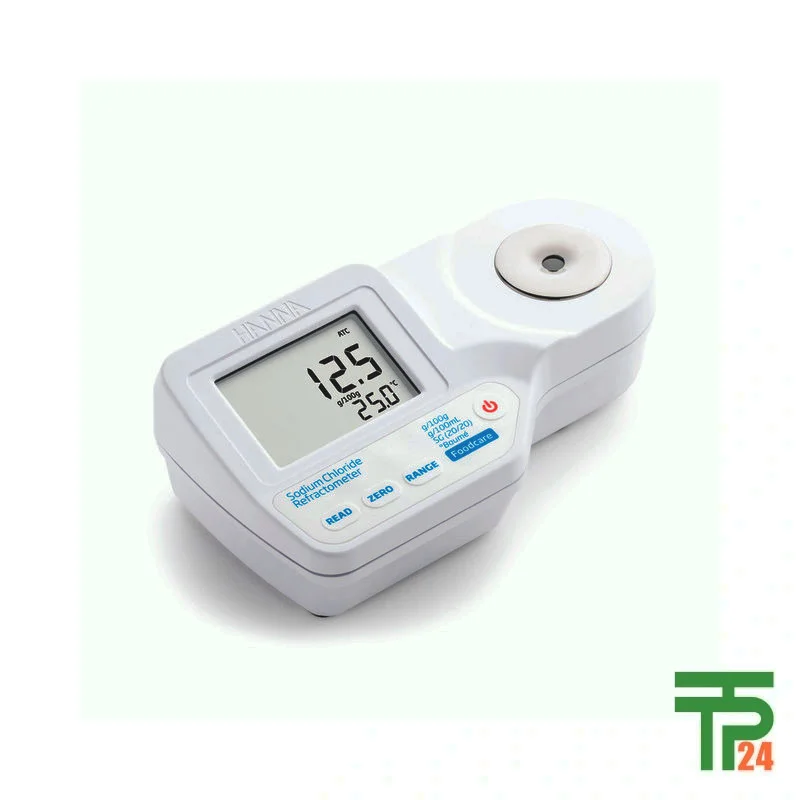

Hanna HI96821 Digital Refractometer for Measuring Sodium Chloride in Food

Description

A Comprehensive Introduction to a Precision Instrument

The Hanna HI96821 Digital Refractometer is a state-of-the-art instrument designed for the precise measurement of sodium chloride concentration in aqueous solutions, a critical parameter in the food industry. This rugged, portable, and water-resistant device is the culmination of Hanna Instruments’ extensive expertise in manufacturing analytical instruments. Unlike traditional mechanical refractometers, the HI96821 eliminates the uncertainty of visual readings, providing swift, accurate, and repeatable results. It’s an indispensable tool for food professionals, whether for quality control on the production line or for detailed analysis in a laboratory setting. The instrument’s simple user calibration process, which uses deionized or distilled water, makes it exceptionally user-friendly, allowing for measurements to be taken within seconds.

The HI96821’s core functionality is based on the principle of refractometry, which measures the refractive index of a sample to determine the concentration of dissolved particles. Specifically, it measures how light “bends” as it passes through a solution. Light from an internal LED is directed through a prism in contact with the sample, and a linear image sensor determines the critical angle at which the light is no longer refracted. This critical angle is then used to calculate the refractive index, which is, in turn, converted into various measurement units for sodium chloride concentration. This advanced method, combined with automatic temperature compensation (ATC), ensures highly reliable and accurate readings, even when the sample temperature varies.

Unlocking Versatility for Diverse Food Applications

The Hanna HI96821’s primary design focus is to serve the diverse and demanding needs of the food industry, making it an essential tool for ensuring product consistency and quality. Its ability to measure sodium chloride concentration is crucial for a wide range of applications. For example, in the production of cheeses and fermented foods, maintaining a precise salt concentration is vital for flavor development, texture, and preservation. The HI96821 provides a quick and reliable way to monitor brining solutions and final product salt content. Similarly, in the canning and preservation of vegetables, an accurate sodium chloride level is necessary to ensure food safety and prevent spoilage. Food processing facilities can use this device to verify the consistency of their brines and sauces, guaranteeing uniform product quality.

Furthermore, the instrument is invaluable for meat and seafood processing. Brines are often used for curing and enhancing the flavor and moisture of meat, and the HI96821 helps producers control this process with precision. In the baking and snack industry, where salt is a key ingredient for both flavor and function, the refractometer allows for the quick testing of dough and batter solutions. The device is also useful for restaurant and catering services to ensure their brines and marinades are consistent across different batches. While it is not intended for seawater salinity measurements, its versatility within the food sector is undeniable, making it an indispensable asset for chefs, quality control managers, and food scientists. The convenience of a portable, handheld device means that checks can be performed on the spot, saving time and ensuring immediate feedback on the production process. The HI96821 is an example of Hanna Instruments’ commitment to providing specialized and effective solutions for specific industrial needs.

Operational Simplicity for Maximum Efficiency

One of the most compelling aspects of the Hanna HI96821 is its straightforward and intuitive operation, which minimizes the learning curve and allows users to get started quickly. The device features a simple, two-button interface with keys for “ZERO” and “READ,” alongside an “ON/OFF” key and a “RANGE” key. This simplicity ensures that even users without extensive technical expertise can operate the instrument effectively. The calibration process, which is recommended daily, is particularly simple, requiring only distilled or deionized water. After a user turns the device on and applies the calibration sample, a single press of the “ZERO” key is all that is needed to prepare the instrument for accurate measurements.

Once calibrated, the user simply places a small sample of the solution—as little as 100 µL is required to cover the prism—onto the stainless steel well. A press of the “READ” key initiates the measurement, and within approximately 1.5 seconds, the result is displayed on the large dual-level LCD. This rapid measurement time is a significant advantage, particularly in fast-paced production environments where time is of the essence. The dual-level display is another key feature, showing both the measurement result on the primary display and the temperature simultaneously on the secondary display, which enhances user convenience and data transparency. The HI96821’s design is focused on providing a seamless, efficient, and reliable user experience, making it a go-to device for quick and precise sodium chloride analysis.

The Power of Precision and Automatic Compensation

The Hanna HI96821 stands out for its high level of precision and its intelligent use of technology to ensure measurement accuracy. The device’s ability to measure sodium chloride concentration is complemented by a series of sophisticated features. A critical one is its Automatic Temperature Compensation (ATC), which automatically adjusts readings to account for the impact of temperature on the refractive index of a sample. Temperature variations can significantly affect measurement accuracy in refractometry, and the HI96821’s built-in temperature sensor and compensation algorithms, which are based on internationally recognized references, ensure that results remain reliable across a temperature range of 10.0 to 40.0 °C (50.0 to 104.0 °F). This feature is particularly valuable in field applications where environmental temperatures can fluctuate.

Beyond temperature compensation, the HI96821 offers high resolution and accuracy across all its measurement scales. It provides readings in four different units: g/100 g, g/100 mL, Specific Gravity, and Baumé, all of which are displayed simultaneously on the LCD screen, allowing for quick unit toggling via the “RANGE” key. The resolution is 0.1 for g/100 g, 0.1 for g/100 mL, 0.001 for Specific Gravity, and 0.1 for Baumé, ensuring that users can obtain precise and detailed data for their specific applications. The instrument’s accuracy is also highly impressive, with a margin of error of $\pm 0.2$ for g/100 g and g/100 mL, $\pm 0.002$ for Specific Gravity, and $\pm 0.2$ for Baumé, which are all well within the acceptable limits for professional use. This combination of multiple measurement scales, automatic temperature compensation, and high-level accuracy solidifies the HI96821’s position as a superior instrument for sodium chloride analysis.

Ruggedness and Reliability for Demanding Environments

Designed to withstand the rigors of both laboratory and field use, the Hanna HI96821 is built for durability and long-term reliability. Its robust construction features an ABS plastic casing and an IP65 enclosure rating, which means it is protected from dust ingress and low-pressure water jets from any direction. This level of water resistance is crucial for environments where spills and splashes are common, such as food processing plants, kitchens, and industrial settings. The sample well, where the measurement takes place, is made of a stainless steel ring with a flint glass prism, a combination that is not only corrosion-resistant but also easy to clean, ensuring the integrity of each measurement.

The HI96821’s reliability extends to its power management as well. It operates on a single 9V battery, which provides an impressive life of approximately 5000 readings. A low power indicator blinks when the battery life falls below 5%, giving users ample warning to replace the battery before the instrument ceases to function. To further conserve battery life, the device is equipped with an automatic shut-off feature that powers down the instrument after three minutes of non-use. This intelligent design minimizes power consumption, ensuring the instrument is ready for use whenever needed. The HI96821’s combination of durable materials, waterproof protection, and efficient power management makes it a dependable and long-lasting tool for professionals who need an instrument that can perform reliably under demanding conditions.

Ensuring Accuracy and Correct Usage with Care

To maintain the high level of accuracy and longevity of the Hanna HI96821, proper care and handling are essential. The instrument is a precision device and should be handled carefully to avoid dropping it. While it is water resistant, it should not be immersed under water, and water should only be sprayed on the sample well over the prism. The prism itself is made of flint glass and is susceptible to scratches from particulate matter or metallic tools. Therefore, users are instructed to use a soft tissue to absorb samples and plastic pipettes for transferring solutions, avoiding the use of needles or tweezers.

Furthermore, the instrument is specifically designed for measuring sodium chloride solutions and should not be exposed to organic solvents or extremely hot or cold solutions, which can damage the prism. Between measurements, the sample well should be rinsed with deionized or distilled water and wiped dry with a soft tissue to ensure no residue from the previous sample interferes with the next reading. For measurements taken in direct sunlight or other intense light sources, the user is advised to cover the sample well with their hand to prevent external light from affecting the reading. Following these simple but crucial guidelines ensures that the HI96821 continues to deliver accurate and reliable results over its lifetime.

The Comprehensive Package and World-Class Support

When you purchase the Hanna HI96821, you receive more than just a refractometer; you get a complete package that includes all the necessary components to get started, along with the assurance of world-class support. Each HI96821 instrument is supplied with a 9V battery, a comprehensive instruction manual, a plastic pipette for sample handling, and a Quality Certificate. This ensures that users have everything they need right out of the box to begin taking accurate measurements.

Beyond the initial package, Hanna Instruments offers robust support. The product is backed by a two-year warranty against defects in workmanship and materials, covering repair or replacement free of charge for its intended purpose and maintenance. Should any issue arise, customers can contact their local Hanna Instruments office for service. The warranty, however, does not cover damage from accidents, misuse, tampering, or a lack of prescribed maintenance. This commitment to providing a full, supported product lifecycle underscores the quality and reliability of the HI96821.
