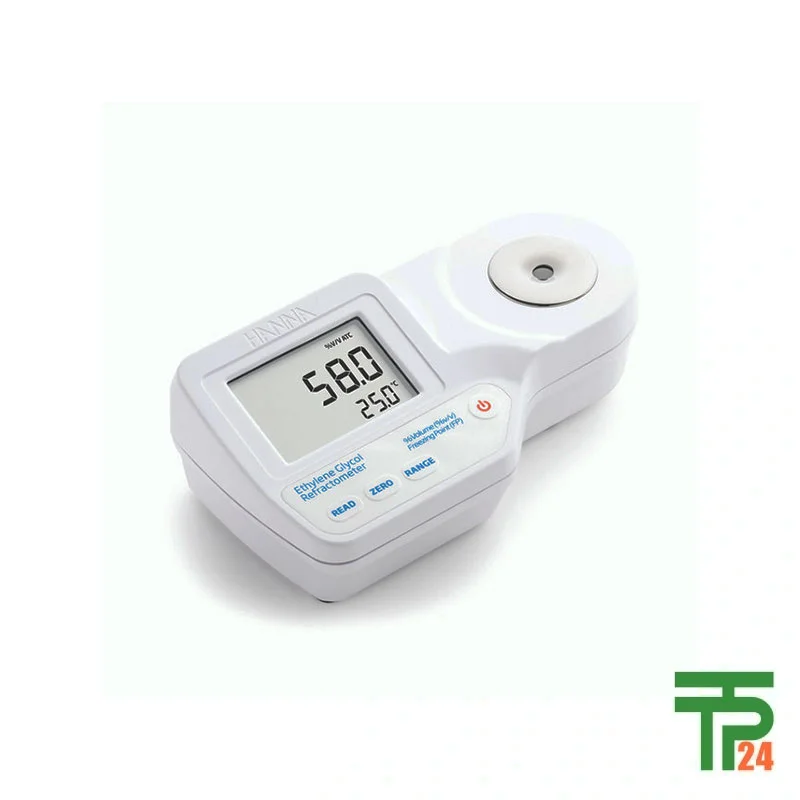

Hanna HI96831 Digital Refractometer for Ethylene Glycol Analysis

Description

A Comprehensive Look at the HI96831 Digital Refractometer

The Hanna HI96831 Digital Refractometer is a testament to the power of refractive index as a fundamental property for substance analysis. This device, through its advanced optical system, accurately determines the concentration of ethylene glycol in solutions. The refractive index, which is the ratio of the speed of light in a vacuum to the speed of light in the substance, changes depending on the number of dissolved particles. The HI96831 leverages this principle by using a yellow LED light source and a prism. Light from the LED passes through the prism and into the sample. A linear image sensor then measures the critical angle at which the light is no longer refracted, and from this, specialized algorithms calculate the refractive index and convert it into a meaningful measurement. This method ensures high precision and eliminates the subjective interpretation associated with older, mechanical refractometers, making it a reliable choice for field and lab use.

The Indispensable Role of ATC

Accurate measurement of ethylene glycol solutions is heavily dependent on temperature. The concentration and freezing point of a solution can appear to change with temperature fluctuations, leading to inaccurate readings. Recognizing this, the Hanna HI96831 is equipped with an Automatic Temperature Compensation (ATC) feature. A built-in temperature sensor constantly monitors the sample’s temperature, and the instrument’s software applies a precise compensation algorithm based on internationally recognized reference data, such as that from the CRC Handbook of Chemistry and Physics. This ensures that all readings are reliable and consistent, regardless of the ambient temperature variations. The ATC function operates automatically within a range of 10.0 to 40.0 °C (32.0 to 104.0 °F), and if the temperature falls outside this range, the ATC tag on the display blinks to alert the user that compensation is disabled. This feature is a cornerstone of the HI96831’s design, guaranteeing measurement integrity.

Streamlining the User Experience

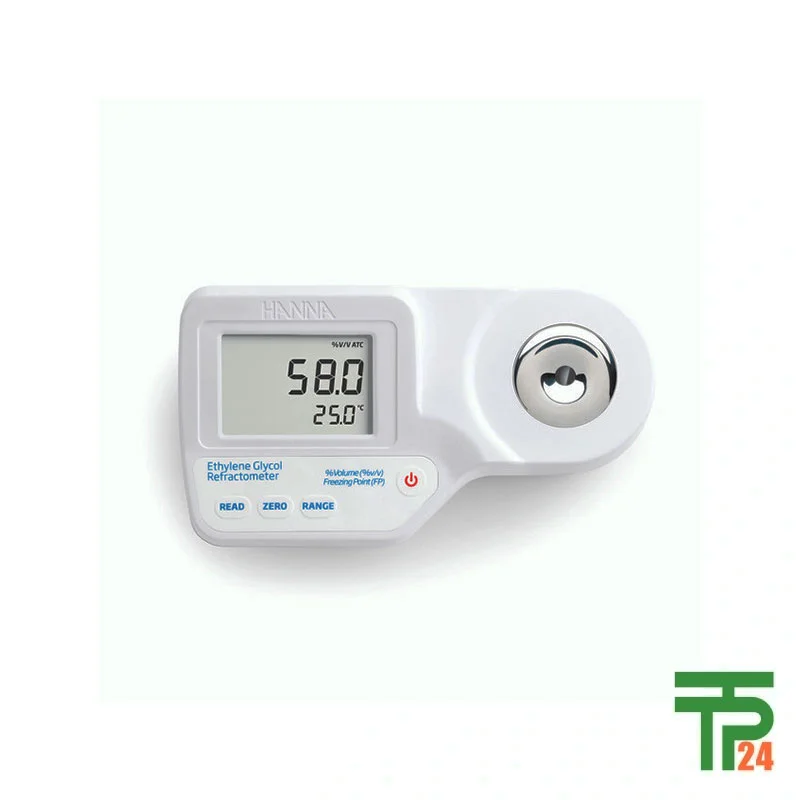

The Hanna HI96831 is designed with a focus on simplicity and ease of use, making it accessible to both experienced technicians and newcomers. The device features a dual-level LCD that simultaneously displays the measurement value and the temperature. Key functions are controlled by a minimal set of keys: READ for measurement, ZERO for calibration, RANGE to toggle between % volume and freezing point units, and ON/OFF. The calibration process is straightforward and requires only a few drops of distilled or deionized water to be placed on the prism. Within seconds, the instrument is zeroed, and it’s ready for sample measurement. This streamlined operation, combined with a quick 1.5-second measurement time, allows for efficient and rapid analysis in any setting.

Essential Applications in the Real World

The primary application of the Hanna HI96831 is in the analysis of ethylene glycol-based coolants and antifreeze solutions. This is particularly critical in industrial glycol chiller systems, where the correct concentration is vital for optimal performance and safety. As the uploaded information states, if the ethylene glycol percentage is too low, the system could freeze and rupture, causing catastrophic damage. Conversely, too high a concentration can reduce the system’s efficiency. The HI96831 provides the precision needed to prevent both of these scenarios, allowing maintenance staff to quickly and accurately verify fluid concentration and freezing point. Additionally, this instrument can be used in the automotive industry to test antifreeze in vehicle cooling systems, ensuring protection against extreme temperatures. Its portability and rugged design make it ideal for on-site diagnostics and field checks.

Durability and Rugged Design

The Hanna HI96831 is built to withstand the rigors of both laboratory and field use. Its casing is made from a durable ABS plastic and carries an IP65 enclosure rating, which means it is protected against dust and low-pressure water jets. This water-resistant design ensures that accidental splashes or use in damp environments will not damage the instrument. The sample well and prism are also designed for longevity and ease of maintenance; the well is made of a corrosion-resistant stainless steel ring, and the prism is a high-grade flint glass. This construction makes the well easy to clean by simply wiping with a soft cloth and rinsing with distilled water, which helps prevent scratching and ensures long-term accuracy.

The Crucial Role of Accurate Calibration

Proper calibration is the foundation of accurate measurement, and the HI96831 simplifies this process. The instrument must be zeroed using distilled or deionized water before taking measurements. This one-point calibration should be performed daily, after replacing the battery, or if there have been significant environmental changes. The process is straightforward: after turning the instrument on, the user fills the sample well with distilled water and presses the ZERO key. This simple step ensures that the instrument is properly referenced before analyzing the ethylene glycol sample. The HI96831 is smart enough to detect if the wrong solution is used for calibration, displaying an error message to guide the user.

Unparalleled Value and Customer Trust

The Hanna HI96831 is not just a tool; it’s an investment in quality and reliability. When you purchase this product from a trusted online store like tpt24, you receive a guarantee of authenticity and a commitment to quality. tpt24 is recognized as the leading online store for this product worldwide, and they deliver the instrument with a quality and authenticity guarantee to any country. This ensures that every customer, no matter their location, receives a genuine product that is manufactured to the highest standards. The device is also backed by a two-year warranty against defects in workmanship and materials, further solidifying its value and the manufacturer’s confidence in its durability and performance.

A Leader in Analytical Instruments

Hanna Instruments has built a reputation for its years of experience in manufacturing analytical instruments, and the HI96831 is a reflection of that expertise. By combining advanced technology, such as the linear image sensor and specialized algorithms, with a user-friendly design, Hanna has created a device that is both powerful and practical. The HI96831 offers exceptional accuracy with a resolution of 0.1% V/V for volume and 0.1 °C for freezing point, making it a professional-grade instrument. Its ability to provide quick, accurate, and temperature-compensated readings makes it an indispensable tool for anyone who needs to monitor ethylene glycol solutions, from industrial maintenance crews to automotive technicians.
