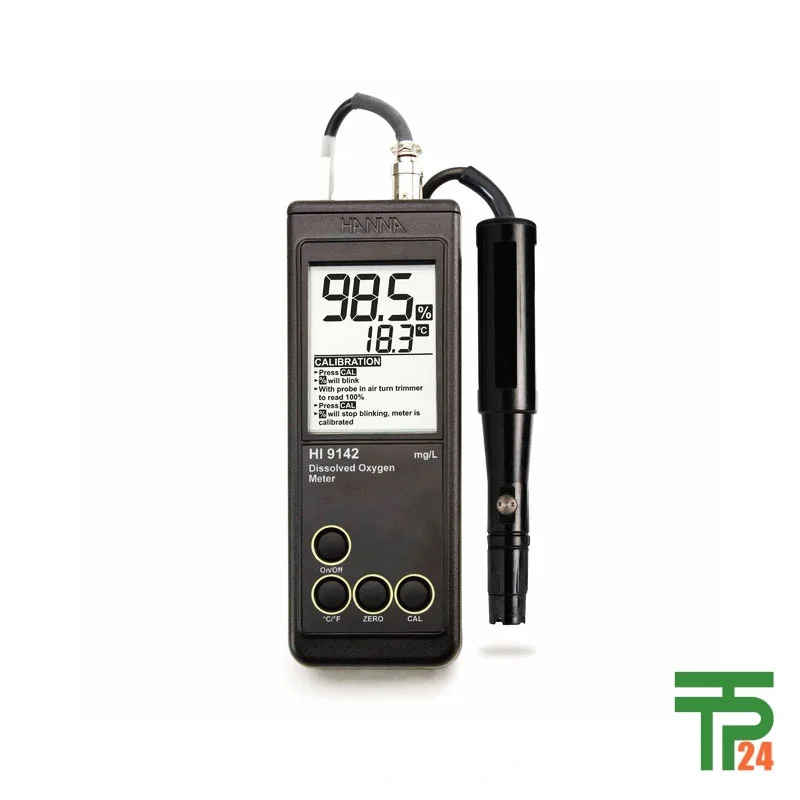

Hanna HI9142 Polarographic Portable Dissolved Oxygen Meter

Description

The HI9142: An Uncompromising Field Instrument

The Hanna HI9142 is an exceptionally durable and waterproof dissolved oxygen (DO) meter, meticulously engineered to withstand the most demanding environmental conditions. This instrument is a testament to rugged design, addressing common field-use challenges like cold, rain, snow, and dust that can often degrade a meter’s performance and shorten its lifespan. Its simplicity of use is a standout feature, with a user-friendly calibration process that involves an automatic zero-oxygen calibration using the HI 7040 solution and a manual 100% calibration in air. This streamlined approach ensures reliable and accurate readings in a variety of settings. The meter is supplied with a comprehensive kit, including a polarographic probe, PTFE membrane caps, and a carrying case, making it an all-in-one solution for professionals in the field. The probe itself, the HI 76407/4, is equipped with a built-in thermistor for automatic temperature measurement and compensation, a critical feature for ensuring measurement accuracy across varying temperatures.

The core of the HI9142’s functionality lies in its polarographic probe, which utilizes a thin, permeable membrane to isolate sensor elements from the sample while allowing oxygen to pass through. When a voltage is applied to the sensor, the oxygen that has permeated the membrane reacts, generating a current that is directly proportional to the concentration of dissolved oxygen in the solution. This method, based on the Ross and Clark polarographic principle, ensures highly precise and consistent measurements. The standard probe comes with a 4-meter (13′) cable, enabling measurements in hard-to-reach locations. For applications requiring even greater reach, optional probes with 10-meter (33′) and 20-meter (67′) cables are available. The robust design and advanced sensor technology make the HI9142 an indispensable tool for environmental monitoring, aquaculture, and water treatment, providing users with the confidence that their data is both accurate and reliable, even in challenging conditions.

A Look at the Instrument’s Versatility

The HI9142 stands out for its practical design and user-centric features. The device’s waterproof housing is a significant advantage, ensuring its longevity and performance in wet or dusty environments. The ease of use is further enhanced by features like the automatic temperature compensation, which adjusts readings to account for temperature’s effect on oxygen solubility and membrane permeability. This is crucial for obtaining precise results, as temperature variations can drastically alter dissolved oxygen levels. The meter also includes a “Battery Error Prevention System” (BEPS), which automatically shuts off the instrument when the battery level is too low to guarantee reliable readings, preventing the collection of inaccurate data.

The Polarographic Measurement System in Detail

At the heart of the HI9142’s advanced functionality is its polarographic measuring system, which is based on the Ross and Clark method. The system consists of a probe with a platinum cathode and a silver anode, immersed in an electrolyte solution. This solution is contained within the probe and sealed by a pre-tensioned polytetrafluoroethylene (PTFE) membrane cap. This screw-cap design simplifies the process of refilling the electrolyte and replacing the membrane, a critical aspect of probe maintenance. The entire setup is engineered to be highly efficient and reliable. A fixed voltage of approximately 800 mV is applied across the electrodes, a process known as polarization. This polarization is vital for ensuring stable and consistently accurate measurements. The membrane’s permeability allows oxygen from the sample to diffuse into the electrolyte, where it is “consumed” by the reaction at the cathode. The resulting current is directly proportional to the partial pressure of oxygen, and the meter’s circuitry converts this to a dissolved oxygen concentration reading.

Unique Applications for the HI9142 Meter

The Hanna HI9142 is a specialist tool with a variety of professional and scientific applications. In aquaculture, it is essential for monitoring the health of aquatic ecosystems, ensuring that fish and other organisms have sufficient oxygen to thrive. The rugged, waterproof design allows it to be used directly in ponds, tanks, and hatcheries, where it provides quick and accurate data on oxygen levels. For environmental monitoring, the HI9142 is used to assess water quality in rivers, lakes, and streams. It can detect oxygen depletion, a key indicator of pollution or eutrophication. Its long probe cable options (up to 20 meters) are particularly useful for sampling at different depths or in hard-to-reach areas, such as deep wells or remote bodies of water. In wastewater treatment, the HI9142 is used to control aeration processes, which are vital for promoting the growth of aerobic microorganisms that break down organic waste. Maintaining optimal oxygen levels is crucial for the efficiency and effectiveness of these processes. Furthermore, it can be applied in food and beverage production, particularly in brewing and winemaking, where dissolved oxygen levels must be carefully controlled to prevent spoilage and ensure product quality.

Addressing Altitude and Salinity Variations

When performing measurements, it’s crucial to account for external factors like altitude and salinity, which significantly impact the solubility of oxygen in water. The HI9142’s readings are referenced to sea level with zero salinity, and as such, users must manually compensate for different conditions to ensure the accuracy of their data.

Altitude compensation is necessary because at higher altitudes, the lower barometric pressure reduces the concentration of dissolved oxygen. The provided manual includes a detailed table that allows users to correct their readings based on their specific altitude and temperature. Similarly, salinity compensation is critical for measurements in saltwater environments, as dissolved salts reduce the solubility of oxygen. A separate table is provided in the manual for this purpose, enabling users to calculate the necessary adjustment to their readings to account for the salt content in their sample.

Maintenance and Long-Term Performance

Proper maintenance is key to the long-term reliability of the HI9142. The instrument’s polarographic probe body is constructed from reinforced plastic, ensuring maximum durability. Users are advised to protect the probe with the supplied cap when not in use to prevent damage and contamination. The most critical maintenance task is the regular replacement of the membrane and electrolyte solution. The manual provides a step-by-step guide for this process, which involves unscrewing the old membrane, rinsing a new one with electrolyte, and tapping it gently to remove air bubbles before screwing it back onto the probe. It’s also important to ensure that the platinum cathode remains bright and untarnished. If it becomes stained, a gentle cleaning with a lint-free cloth is recommended. Following these maintenance procedures ensures that the membrane and sensor elements remain in perfect condition, which is vital for accurate and stable measurements.

Customer Trust and Reliability

The Hanna HI9142 is a product that embodies reliability and performance, and for customers seeking this meter, trust in the seller is paramount. The online store tpt24 is the world’s leading online store for this product, delivering it with a guarantee of authenticity and quality to any country. This commitment to customer satisfaction ensures that you receive a genuine, high-quality instrument, backed by a robust warranty. The HI9142 is guaranteed for two years against defects in workmanship and materials, while the probes and electrodes are guaranteed for six months. This warranty, combined with the excellent support and genuine product delivery from tpt24, gives customers peace of mind, knowing they are investing in a durable and reliable tool.

Ensuring Accuracy and Calibration

Accurate measurements with the HI9142 depend on correct calibration, a procedure that is both simple and fast. Before calibration, it is recommended to allow the probe to polarize for at least 15 minutes to ensure precise conditioning. The device supports both slope calibration (100% DO) and zero calibration (0% DO). Slope calibration is performed in air and is recommended weekly due to its critical nature. This involves adjusting a trimmer on the meter until the display reads 100%. Zero calibration, performed by dipping the probe in a zero-oxygen solution, is highly stable and only needs to be done when the probe is replaced. This dual-calibration method ensures the instrument provides consistently accurate readings across its entire measurement range, making it a reliable tool for professional use.
