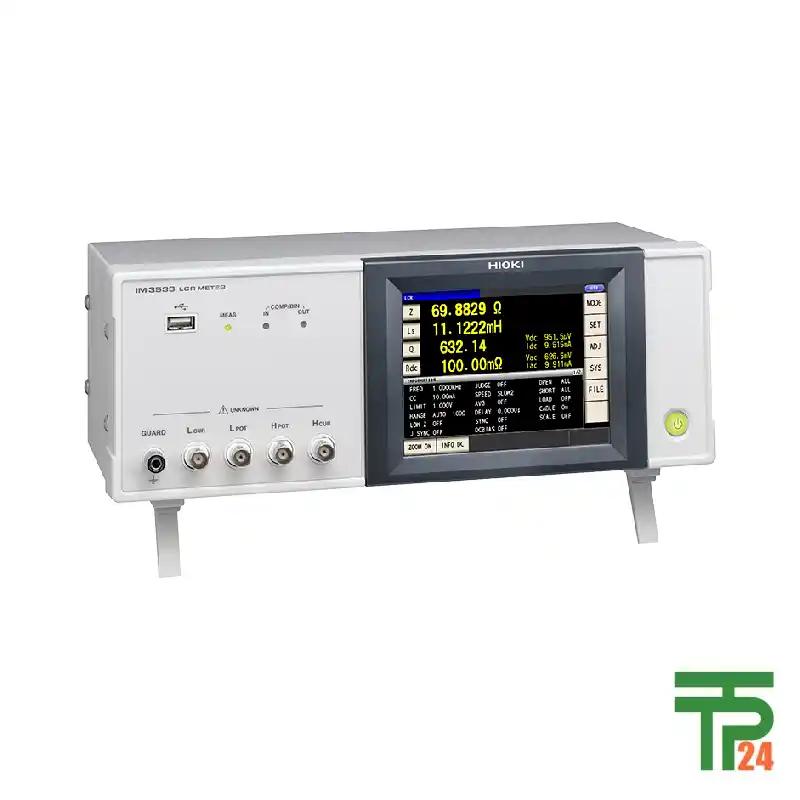

LCR METER IM3533 HIOKI

Description

HIOKI IM3533 LCR Meter – Precision Measurement for Advanced Electronics

The HIOKI IM3533 LCR Meter is a high-performance electrical measurement instrument designed for engineers, researchers, quality control specialists, and electronics manufacturers. Combining exceptional measurement accuracy, a wide frequency range, and advanced transformer testing capabilities, this instrument provides reliable characterization of electronic components in demanding industrial and laboratory environments.

Manufactured by HIOKI, the IM3533 is designed to measure the electrical characteristics of resistors, capacitors, inductors, coils, and transformers. You can also explore other HIOKI Electrical Testing Instruments available at TPT24 for professional electrical measurement applications.

Key Features of the HIOKI IM3533 LCR Meter

1. High-Accuracy Electrical Measurements

One of the most important advantages of the HIOKI IM3533 LCR Meter is its excellent measurement accuracy. It provides basic impedance accuracy of ±0.05% of reading and phase angle accuracy of ±0.03°.

These specifications make it suitable for applications requiring reliable electrical characterization and precise component evaluation. Its measurement range extends from 100 mΩ to 100 MΩ across 10 ranges, allowing users to test components with different impedance characteristics.

For applications requiring precise resistance measurements in electrical connections and conductive components, TPT24 also offers professional Micro Ohmmeters.

2. Wide Frequency Range from DC to 200 kHz

The instrument supports DC measurements and a frequency range from 1 mHz to 200 kHz. Its five-digit frequency setting resolution provides precise control over measurement conditions.

This flexibility allows engineers to investigate the frequency-dependent behavior of electronic components. It is particularly useful when evaluating capacitors, inductors, magnetic materials, and other passive components.

3. Advanced Transformer and Coil Testing

The HIOKI IM3533 LCR Meter includes a dedicated transformer measurement mode that provides three important measurement parameters:

• N: Transformer turns ratio.

• M: Mutual inductance.

• ΔL: Leakage inductance.

These measurements help engineers evaluate transformer winding characteristics, magnetic coupling, and leakage inductance. They are especially valuable in transformer manufacturing, coil production, and power electronics development.

For more comprehensive transformer diagnostics and electrical testing, consider the Megger TRAX Multifunction Transformer and Substation Test System, which provides additional testing capabilities for power transformers and substations.

4. High-Speed Testing and Low-Impedance Measurements

The IM3533 offers a representative measurement time of just 2 ms under specified conditions (1 kHz, FAST mode, display OFF). This makes it particularly useful for high-volume manufacturing and automated quality control.

Its low-impedance high-repeatability mode provides a selectable output impedance of 25 Ω, compared with 100 Ω in normal mode. This feature helps improve measurement consistency when testing low-impedance components.

5. Comprehensive Measurement Parameters

Beyond conventional inductance, capacitance, and resistance measurements, the instrument evaluates a wide range of electrical parameters, including impedance (Z), admittance (Y), phase angle (θ), equivalent series resistance (ESR), dissipation factor (D), and quality factor (Q).

It also supports DC resistance measurement with temperature compensation. This functionality helps engineers obtain more consistent resistance measurements under varying temperature conditions.

Applications of the HIOKI IM3533

The versatility of this instrument makes it suitable for several professional applications:

• Electronics Manufacturing: Inspection and quality control of capacitors, inductors, and resistors.

• Transformer Production: Measurement of turns ratio, mutual inductance, and leakage inductance.

• Research and Development: Characterization of electrical and magnetic components.

• Battery Development: Investigation of electrical impedance characteristics of battery cells.

• Quality Assurance: Automated component classification using Comparator and BIN measurement functions.

• Power Electronics: Evaluation of inductors and capacitors used in power conversion systems.

Display, Connectivity, and User Experience

The instrument features a 5.7-inch color TFT touch-screen display that simplifies operation and measurement monitoring. Its compact design, measuring approximately 330 × 119 × 168 mm and weighing 3.1 kg, makes it suitable for laboratory benches and production environments.

Standard connectivity includes high-speed USB communication, USB memory support, and EXT I/O (Handler). An optional communication interface can be selected from LAN, RS-232C, or GP-IB, depending on system integration requirements.

For additional electrical measurement applications, professionals can also explore TPT24’s range of Digital Multimeters for voltage, current, resistance, and other electrical testing requirements.

Why Buy the HIOKI IM3533 from TPT24?

Choosing a precision measurement instrument requires confidence in product authenticity, technical specifications, and supplier support. TPT24 provides access to professional industrial measurement equipment for customers worldwide.

When purchasing the HIOKI IM3533 from TPT24, customers can benefit from:

• Professional assistance with product selection.

• Global shipping options.

• Support for technical and purchasing inquiries.

• A commitment to product authenticity and quality.

Upgrade your electrical testing capabilities with the HIOKI IM3533 LCR Meter. Contact TPT24 for product availability, quotations, and purchasing assistance.
