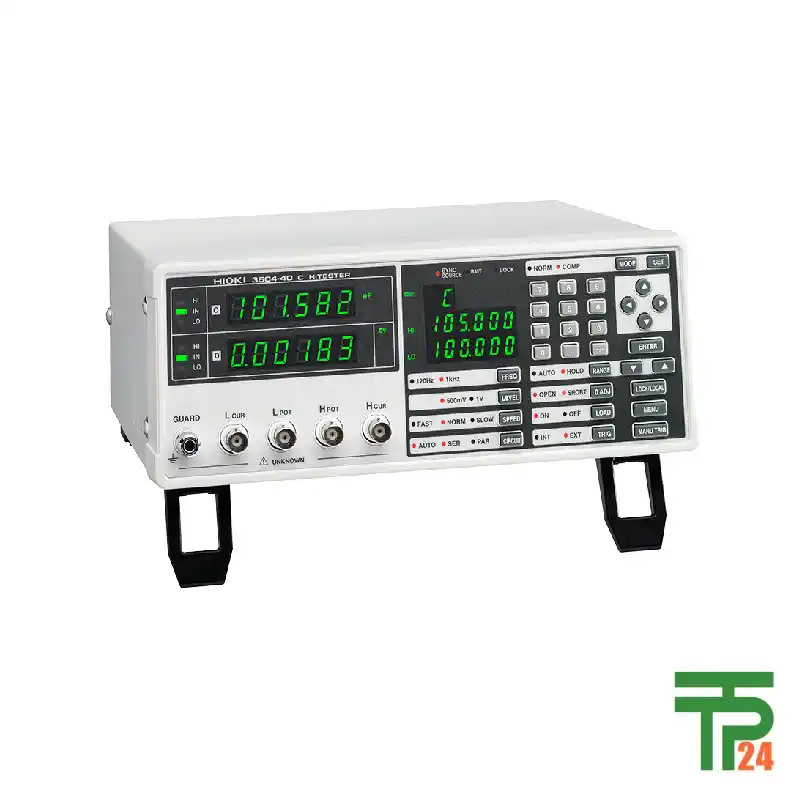

HIOKI 3504 C HiTESTER – Precision Capacitance Testing for Electronics Manufacturing

The HIOKI 3504 C HiTESTER is a high-speed capacitance meter designed for accurate inspection of capacitors, particularly multilayer ceramic capacitors (MLCCs). With dedicated 120 Hz and 1 kHz measurement frequencies, it provides reliable capacitance and dissipation factor measurements for electronics manufacturers, component inspection facilities, and automated production lines.

Combining a typical measurement time of just 2 ms with constant-voltage testing, the instrument helps manufacturers evaluate voltage-dependent capacitance characteristics while maintaining efficient production workflows. For more professional instruments from the same manufacturer, explore the HIOKI electrical measurement equipment collection.

Key Features of the HIOKI 3504 C HiTESTER

1. Accurate Capacitance and Dissipation Factor Measurement

The HIOKI 3504 C HiTESTER measures two important capacitor parameters: capacitance (C) and dissipation factor (D or tan δ). These measurements help engineers evaluate a capacitor’s charge-storage capability and energy losses.

Its capacitance measurement range extends from 0.9400 pF to 20.0000 mF, while the dissipation factor range is 0.00001 to 1.99999. Typical basic accuracy is ±0.09% of reading ±10 digits for capacitance and ±0.0016 for dissipation factor.

For applications involving precise resistance and insulation evaluation, you can also explore the HIOKI Super Megohmmeter SM-8213, SM-8215, and SM-8220.

2. Dual-Frequency Testing and Constant Voltage Measurement

The instrument supports two measurement frequencies: 120 Hz and 1 kHz. This makes it suitable for testing different capacitor types and evaluating their electrical characteristics under defined measurement conditions.

Its constant-voltage (CV) function supports voltage-dependent capacitance measurements. Selectable signal levels include 500 mV and 1 V RMS, while the 100 mV setting is available exclusively on the 3504-60.

3. High-Speed Measurement for Production Lines

With a typical measurement time of 2 ms at 1 kHz in FAST mode, the HIOKI 3504 C HiTESTER is designed to support high-throughput capacitor inspection.

This speed is particularly useful in automated sorting equipment and capacitor taping machine applications. Measurement time varies according to the selected frequency and measurement settings.

For automated measurement systems that require additional switching capabilities, consider the HIOKI SW2001 High-Voltage Multiplexer, which supports connections with LCR meters and resistance meters.

4. Reliable Contact Detection and Sorting Functions

The instrument includes contact-error monitoring to help identify unreliable connections during measurement. Low-C Reject and Chatter Detection functions help distinguish contact problems and unstable readings from genuine component failures.

For production sorting, the 3504-50 and 3504-60 include a BIN measurement function that classifies capacitors into up to 14 capacitance ranks. The 3504-60 additionally provides a four-terminal contact-check function for improved connection verification.

5. Interfaces and Operational Functions

The HIOKI 3504 series includes a six-digit LED display and practical functions such as Comparator, Averaging, trigger-synchronous output, and storage of measurement settings.

All models provide EXT. I/O and RS-232C interfaces. The 3504-50 and 3504-60 additionally feature GP-IB, making them suitable for integration into automated measurement and inspection systems.

For complementary electrical resistance testing instruments, browse the TPT24 micro-ohmmeter category.

Industrial Applications

The HIOKI 3504 C HiTESTER is particularly useful in:

• MLCC Manufacturing: High-speed inspection of multilayer ceramic capacitors.

• Capacitor Sorting: Classification of components according to capacitance values.

• Quality Control: Pass/fail testing using capacitance and dissipation factor limits.

• Electronics Production: Integration into automated testing and taping machines.

• Component Research: Evaluation of voltage-dependent capacitance characteristics.

• Incoming Inspection: Verification of capacitor specifications before production use.

For broader electrical testing and troubleshooting requirements, explore the professional digital multimeter category.

Why Buy the HIOKI 3504 C HiTESTER from TPT24?

Choosing a precision measurement instrument requires careful attention to model configuration, accessories, and supplier reliability. TPT24 offers professional electrical testing equipment and assistance with product selection for industrial and laboratory applications.

When contacting TPT24 about the HIOKI 3504, specify whether you require the 3504-40, 3504-50, or 3504-60. These models differ in their communication interfaces and available measurement functions.

Request a quotation from TPT24 today to confirm model availability, accessory options, and international shipping arrangements for your application.
