Leader SCAN PERIPHERAL: GROUND PENETRATING RADAR (UWB SENSOR)

Description

Next Generation Radar Pinpoints Buried Victim Movements

The SCAN PERIPHERAL: GROUND PENETRATING RADAR (UWB SENSOR) stands as a specialized and revolutionary tool in the technical search phase of modern Urban Search and Rescue (USAR) operations. Developed in close collaboration with victim location specialists, the SCAN device utilizes cutting-edge Ultra Wide Band (UWB) technology to detect and accurately locate survivors buried beneath large amounts of wreckage. This ground penetrating radar is capable of identifying the subtle, irregular movements of a conscious victim, such as the movement of a finger, as well as the crucial, regular chest movements of a breathing victim, even if that person is unconscious. This exceptional sensitivity elevates the capability of search teams beyond acoustic and visual methods, allowing them to effectively probe vast areas of rubble without physical intrusion. The primary function of the SCAN device is to send electromagnetic waves through various materials, detecting minute variations in movements that signal the presence of life. By providing precise depth indication and analyzing the frequency and intensity of detected movements, the SCAN peripheral allows rescuers to quickly determine the exact location and potential status of a survivor. This technology is indispensable during the initial, critical hours of a disaster response, transforming the technical search phase into a highly reliable and data-driven operation. The ability to detect movements up to thirty meters (thirty meters) unobstructed further enhances its utility, covering a significant search footprint from a safe distance, a benefit that meets the operational requirements of international expert teams like INSARAG, FEMA, and UKSAR.

Ultra Wide Band Technology Penetrates Concrete Easily

The core technological advantage of the SCAN peripheral lies in its Ultra Wide Band (UWB) technology, a powerful feature that allows it to effectively penetrate and scan various common construction and natural materials found in collapsed environments. This capability is critical because traditional search methods are often blocked or rendered useless by the density of the debris. The SCAN ground penetrating radar can detect movement through up to fifty centimeters (fifty centimeters) of dense concrete, a penetration depth that is essential for urban collapse scenarios. Beyond concrete, the UWB sensor performs reliably through an extensive list of materials including wood, roof tiles, glass, plaster, bricks, sand, floor tiles, bitumen, and various plastics. This versatility ensures that regardless of the structure’s composition—whether residential, commercial, or industrial—the device remains effective. However, a crucial operational note for rescuers is that the electromagnetic waves cannot penetrate metal surfaces or water. This limitation requires careful planning of the search grid to avoid large metal objects or flooded areas. The radar aerial and associated electronics are housed within a small, waterproof and shockproof case, which is specifically designed to be the smallest in its class. Its compact size allows it to be easily handled and deployed in small spaces and restricted voids where larger sensors would fail, maximizing its utility in a confined wreckage environment.

Two Dynamic Search Modes Offer Operational Flexibility

The LEADER SCAN UWB ground penetrating radar provides rescuers with two distinct search modes, offering essential operational flexibility depending on the scale and urgency of the incident: Automatic and Manual (Real-Time). The Automatic Search Mode is engineered for efficiency and speed when assessing multiple predefined areas. In this mode, the device performs an automatic analysis of several selected search areas, capable of detecting the movements of up to seven living people simultaneously. This function is ideal for initial rapid assessment or for sweeping large sections of rubble where multiple victims might be suspected. It systematically analyzes depth in three meter bands, providing swift, actionable data. Conversely, the Manual Search Mode, also referred to as Real-Time Detection, allows the rescuer to take precise control over various parameters and manually predetermine a specific analysis area. This mode is used for detailed follow-up on a potential detection or when a thorough investigation of a specific, small void is required. In both modes, the device provides critical information: it indicates the precise depth at which the movement is detected, and classifies the movement as either weak (e.g., breathing) or strong. This dual-mode approach ensures that the SCAN peripheral is versatile enough for both large-scale initial reconnaissance and targeted, close-up detection.

Intuitive Graphical Interface Accelerates Search Operation

The data gathered by the UWB sensor is presented to the rescuer via a user-friendly graphic interface on the compact and lightweight control box, ensuring that crucial information is interpreted quickly and accurately under duress. Every element of the interface has been meticulously designed to make the rescuer’s work easier. The control box features an extra-wide colour screen and an intuitive menu, simplifying navigation and parameter selection. The core visualization tool is the oscillogram function, which is used to view and track movement in real-time. Movement is illustrated on the screen by a sine wave: repeated wide oscillations indicate a repeated strong movement (such as a victim repeatedly tapping on debris), while the depth of the oscillations indicates the intensity of the movement (strong or weak). Furthermore, the system analyzes the frequency of the movements to help the rescuer deduce whether the detected signal originates from a human being or another source. Other helpful indicators on the screen include a clear visual display for weak or strong movement, and controls for selecting the minimum (start) and maximum (end) search depth. The interface also supports data recording during the search, allowing teams to log and review movement detection data for post-operation analysis or handover.

Designed Compactly for Field Durability and Mobility

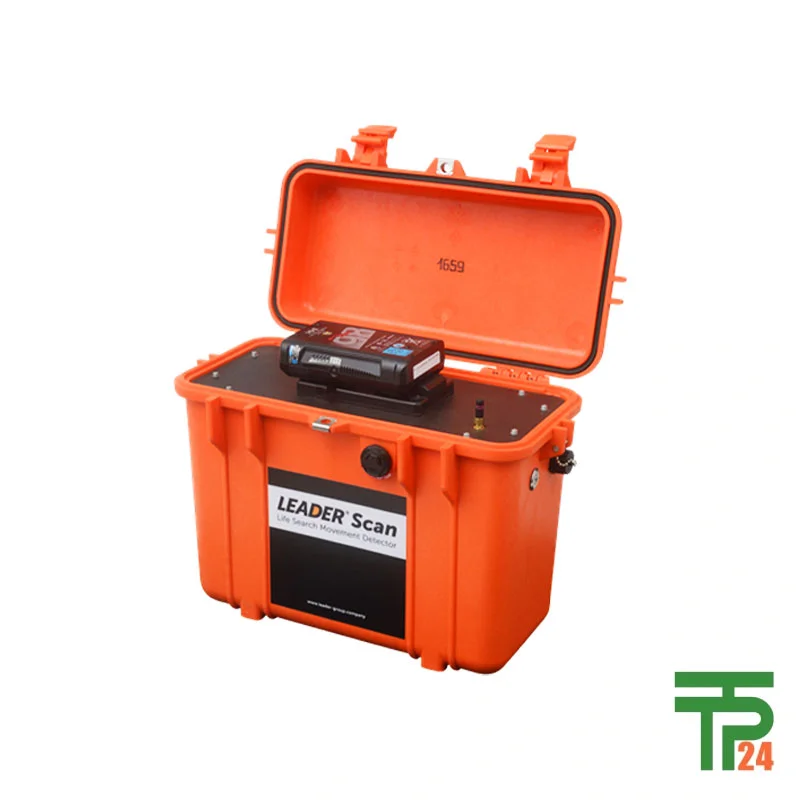

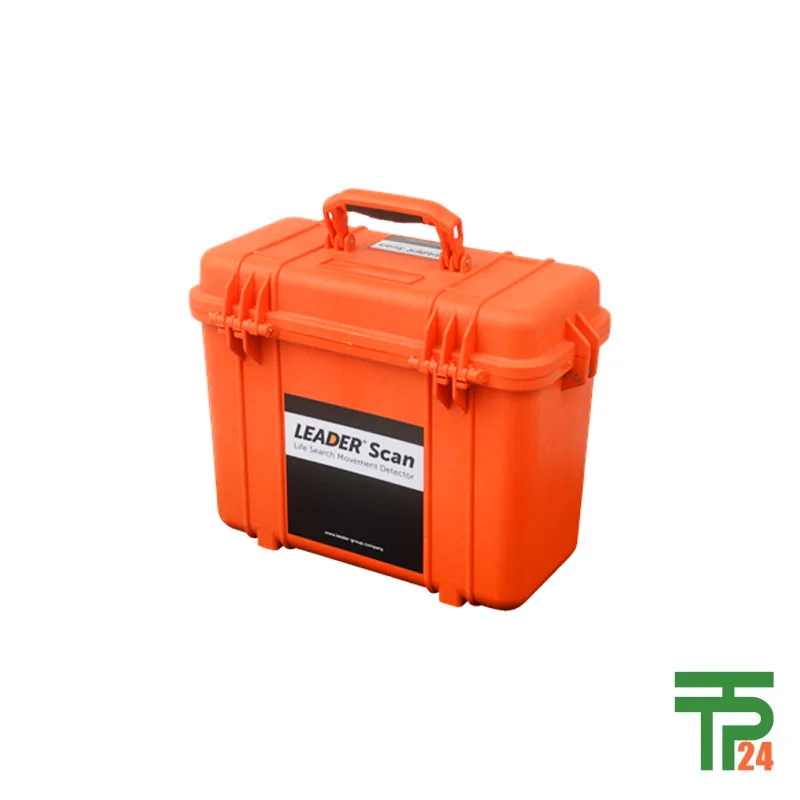

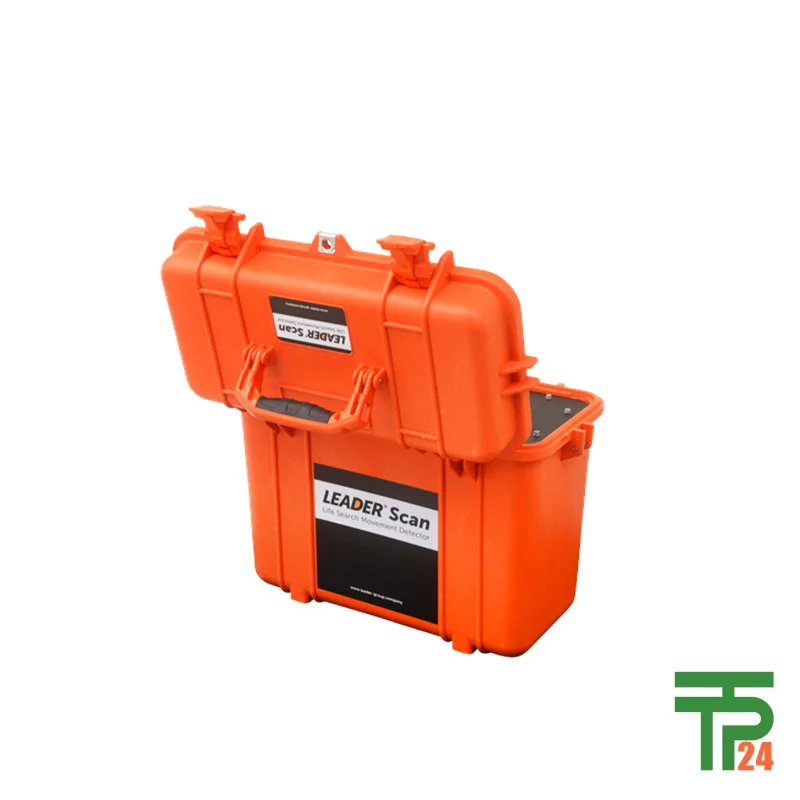

The LEADER SCAN UWB sensor is built to withstand the punishing environment of disaster zones, prioritizing both durability and ease of mobility for the rescuer. The complete sensor unit—which houses the radar aerial and associated electronics—is contained within a small, waterproof and shockproof case, proudly earning the title of the smallest in its class. This compact size is not just a benefit for transport; it allows the device to be handled effectively in small spaces, a frequent necessity when inserting equipment into narrow crevices or voids in wreckage. Powering the unit is an interchangeable Lithium-Ion battery that provides a solid four hours of field running time. This run time is essential for sustained technical search operations. To maximize operational efficiency, a battery level indicator is visible on the outside of the sensor, eliminating the need for the rescuer to open the case in the field to check the power level. Furthermore, the peripheral offers flexibility in its connection to the control box: it is primarily WiFi-connected with a range of thirty meters (thirty meters), which simplifies handling and movement around the search area. However, an option exists to connect a cable if the search area is plagued by electromagnetic interference, a common issue in disaster areas with damaged electrical infrastructure, ensuring that the critical search function is never fully disabled.

Core Peripheral Connects to Multi-Application USAR Box

The LEADER SCAN UWB sensor is designed as an integral, yet optional, peripheral within the LEADER Multi-Application (MULTI-APP) ecosystem, which focuses on providing a versatile and scalable suite of tools for USAR teams. This ground penetrating radar is fully compatible with the central MULTI-APP control boxes used by other LEADER search devices. The core benefit of this compatibility is that a single control box can alternately connect up to five different search devices, which may include the SCAN radar, seismic sensors (SEARCH), or various visual and thermal cameras (CAM, TIC, RD90). This interoperability drastically reduces the amount of redundant equipment that rescue teams must carry and manage, leading to lighter, more agile deployment and simpler logistics. By integrating the SCAN peripheral, rescue teams can easily switch from acoustic listening or visual inspection to subsurface movement detection using the same core display unit. This modular design also directly contributes to the upgradeable nature of a team’s USAR kit, allowing them to start with a basic system and add the sophisticated capabilities of the SCAN radar at a later date, without needing to purchase a separate, dedicated control box. The ability to connect cabled or wirelessly, combined with the intuitive navigation of the control box, ensures seamless integration and operation within any LEADER-based search platform.

Targeted USAR Use Cases Demand Radar Accuracy

The specific capabilities of the LEADER SCAN UWB sensor make it uniquely suited to several critical and high-stakes use cases within Urban Search and Rescue operations where other technologies may fail. Its primary role is in technical search during the most dangerous phases of a structural collapse, where its ability to detect movements through fifty centimeters (fifty centimeters) of concrete is invaluable. The radar is essential for: Non-Intrusive Search, allowing teams to scan large, high-risk piles of debris without having to physically move unstable material, which could trigger a secondary collapse. It is crucial for Verifying Signals, where seismic or acoustic hits are too weak or ambiguous to confirm life; the radar can be quickly deployed to confirm movement, providing a definitive answer. The SCAN peripheral is used extensively in Through-Material Detection—searching through thick layers of materials like plaster, wood flooring, or bricks that would completely obscure a camera or block sound transmission. Furthermore, it is effective in scenarios where victims are unconscious or severely incapacitated, as it can detect the subtle chest movements of breathing, movements that are often too faint to be picked up by acoustic sensors alone. This specialized function makes the SCAN radar a mandatory piece of equipment for international expert search and rescue teams, including INSARAG, FEMA Task Force, Civilian Security, and UKSAR, all of whom rely on LEADER’s search equipment to secure their operations.
