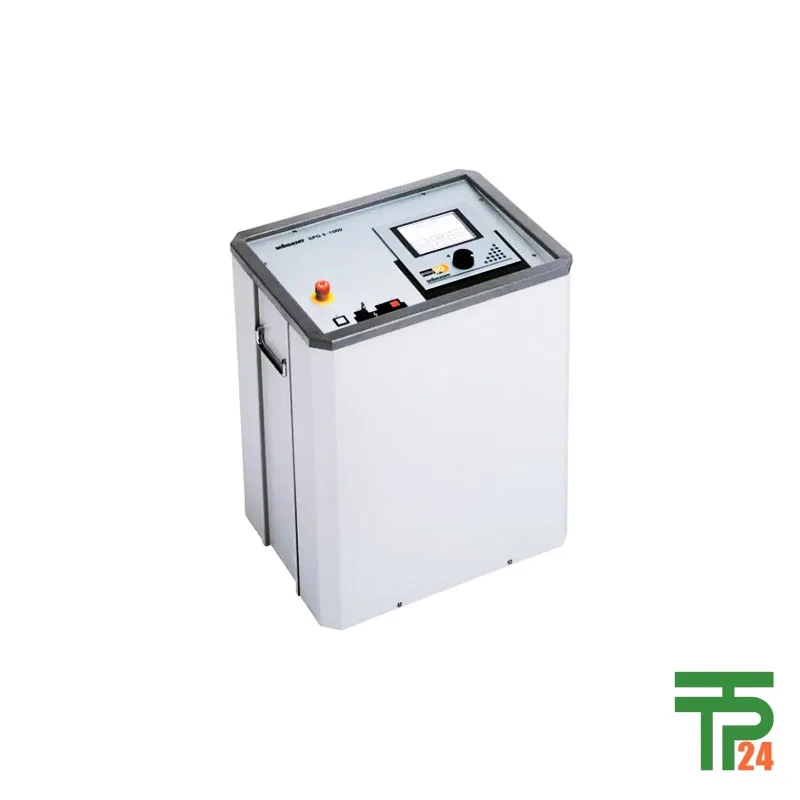

Megger SPG5-1000 5 kV fault locating system

Description

The Megger SPG5-1000 5 kV Fault Locating System is a cutting-edge, portable, multi-functional device engineered for comprehensive cable testing, fault conditioning, pre-locating, and pinpointing faults in low-voltage distribution systems. This all-in-one solution is indispensable for maintaining the integrity and reliability of electrical infrastructure, offering an advanced suite of features that simplify complex fault detection processes. Its robust design and intuitive operation make it a preferred choice for professionals worldwide, from seasoned technicians to those new to the field. With its patented ICEplus technology and high surge energy, the SPG5-1000 stands out as a superior tool for accurate and efficient fault management.

Unveiling the SPG5-1000’s Core Capabilities

The Megger SPG5-1000 5 kV Fault Locating System is a testament to sophisticated engineering, designed to tackle a wide array of cable faults, including flashing, non-flashing, high and low resistance, intermittent, main insulation, and sheath faults. This versatility makes it an invaluable asset for utilities, industrial plants, and electrical contractors. The system’s “toolbox philosophy” integrates identification, pre-location, pinpointing, and fault conversion all within a single unit, streamlining the entire fault resolution workflow. This comprehensive approach significantly reduces downtime and operational costs by enabling rapid and precise fault isolation. Its ability to manage various fault types ensures that technicians are equipped to handle diverse challenges encountered in low-voltage cable installations.

Revolutionary ICEplus: Pre-Locating Faults Effortlessly

One of the standout features of the SPG5-1000 is its integration of the patented ICEplus pre-location method. This revolutionary technology redefines how faults are pre-located, especially in complex, branched low-voltage distribution systems. Unlike traditional methods like TDR and ARM, ICEplus is immune to the common issues of attenuation and reflections at T- or Y-junctions, guaranteeing consistent and accurate pre-location regardless of the network’s configuration. The system evaluates the oscillating current component of a propagating traveling wave, which is generated by a capacitor discharge into the cable. This ingenious method eliminates the need for complex reflection measurement evaluations, directly displaying the fault distance as a numerical value. This simplifies the process immensely, making it accessible even for untrained users and significantly accelerating fault detection.

Precision Pinpointing with High Surge Energy

Beyond pre-location, the SPG5-1000 excels in pinpointing the exact location of faults with remarkable precision. The integrated surge generator, capable of delivering 0-2/4 kV with a powerful 1000 J output, ensures that even elusive faults are located quickly and accurately. This high surge energy is crucial for effectively “thumping” or surging the cable, creating an acoustic discharge at the fault point that can be detected on the surface. For sheath faults, the system employs pulsed DC, utilizing the voltage gradient method (step voltage method) to pinpoint the damage. This dual capability for both main insulation and sheath fault pinpointing underscores the system’s comprehensive approach to cable fault management, ensuring that no fault goes undetected or unaddressed.

Unmatched Safety and User-Friendly Automation

The Megger SPG5-1000 places a paramount emphasis on safety and user convenience. It boasts some of the most comprehensive safety features in its class, including safety interlocks for monitoring station earth and hazardous touch potentials (F-U), as well as earth connections (F-Ohm). The robust discharge and earthing unit is capable of handling 1 kJ or 80 µF at 5 kV DC with a time constant of less than 1 second, ensuring maximum technical safety during operations. Furthermore, the system is fully automated, featuring motorized switches for operating mode selection, execution, and voltage range selection. This automation, combined with an intuitive software interface controlled by a single “turn and click” rotary knob, significantly reduces user intervention and simplifies operation, making it suitable for users of all experience levels.

Diverse Applications Across Industries

The versatility of the Megger SPG5-1000 makes it an indispensable tool across various sectors. In utility companies, it’s crucial for maintaining the reliability of low-voltage distribution networks, quickly identifying and repairing faults to minimize power outages. For industrial plants, the system ensures the continuous operation of critical machinery by swiftly addressing cable issues, preventing costly downtime. Electrical contractors benefit from its portability and ease of use, enabling them to offer efficient fault location services to their clients. Additionally, it is invaluable for maintenance crews in large commercial and residential complexes, ensuring the safety and functionality of electrical systems. Its ability to perform insulation tests, DC hi-pot tests, and fault conversions further broadens its applicability, making it a truly multi-functional solution.

Why Choose tpt24 for Your SPG5-1000?

When considering the purchase of the Megger SPG5-1000 5 kV Fault Locating System, look no further than tpt24, recognized as the world’s leading online store for this product. tpt24 offers the Megger SPG5-1000 with an unwavering commitment to authenticity and quality assurance. Every unit delivered by tpt24 comes with a guarantee of being a genuine product, meeting the highest standards of performance and reliability. Regardless of your geographical location, tpt24 ensures swift and secure delivery to any country, making it the most convenient and trustworthy source for this essential equipment. Choosing tpt24 means investing in peace of mind, knowing you are receiving a top-tier product backed by exceptional service.

A Smart Investment for Cable Reliability

In conclusion, the Megger SPG5-1000 5 kV Fault Locating System represents a significant advancement in cable fault management technology. Its combination of the patented ICEplus method, high surge energy for pinpointing, comprehensive safety features, and user-friendly automation makes it an unparalleled solution for efficiently identifying and resolving cable faults. The system’s ability to handle various fault types in complex branched networks, coupled with its portability and robust design, ensures it delivers exceptional value and reliability. Investing in the SPG5-1000 is a strategic decision for any organization or professional committed to maintaining the highest standards of electrical system integrity and minimizing operational disruptions.
