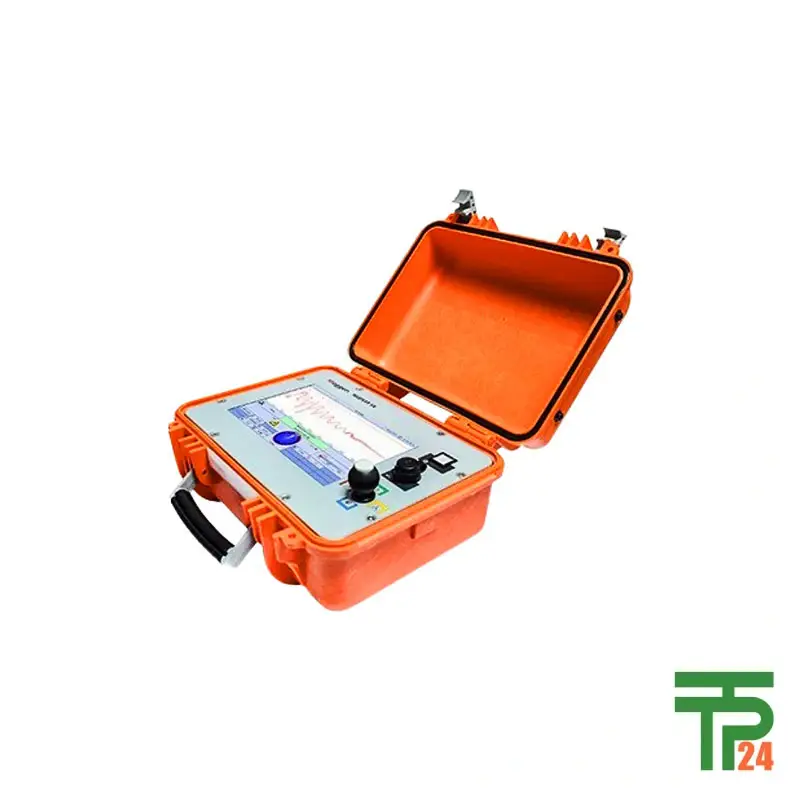

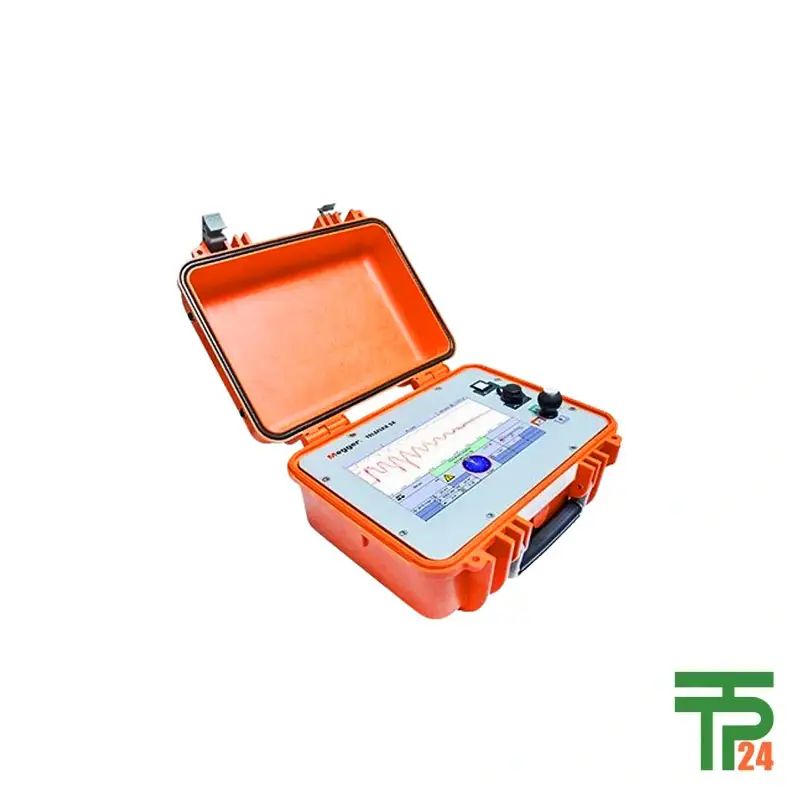

Megger Teleflex SX-1 two-channel time domain reflectometer

Description

Unveiling Cable Fault Detection Excellence

The Teleflex SX-1 is a pinnacle of modern engineering, meticulously crafted to revolutionize the way we approach cable fault location. As a portable two-channel time domain reflectometer (TDR), this device stands out for its ability to deliver swift, accurate, and secure pre-location of faults within complex cable infrastructures. Its innovative design and advanced functionalities position it as an indispensable tool for professionals in the field. The commitment to precision and efficiency embedded in its core design ensures that cable issues are identified and resolved with unparalleled ease, minimizing downtime and maximizing operational integrity. This reflectometer’s robust construction further guarantees reliable performance even in the most demanding environments, making it a truly versatile solution for a wide array of industrial and commercial applications.

Seamless Operation: Intuitive and User-Centric Design

User experience is at the forefront of the Teleflex SX-1’s design philosophy. The device boasts single jog dial operation, complemented by an intuitive piechart interface that simplifies complex diagnostic processes. This thoughtful integration of user-friendly controls with an advanced software system ensures that even intricate fault detection tasks can be performed with minimal effort and maximum accuracy. The inclusion of a large, bright, color touch screen display further enhances usability, offering crystal-clear visuals and responsive touch control. This combination not only accelerates the learning curve for new users but also significantly boosts the efficiency of experienced technicians. The ‘No-User-Intervention Auto mode’ is a testament to its intelligent automation, allowing for rapid and precise results without constant manual adjustments.

Powering Flexibility: Adaptable Energy Solutions

The Teleflex SX-1 offers exceptional flexibility in its power supply, ensuring uninterrupted operation regardless of the field conditions. Equipped with its own rechargeable battery, the unit can function independently for extended periods, providing vital mobility for on-site diagnostic tasks where access to mains power might be limited. For prolonged operations or when a stable power source is available, the device can seamlessly transition to mains supply via a smart charger. This dual-power capability underscores its adaptability, making it a reliable partner for both quick inspections and comprehensive fault location projects. This versatility guarantees that the Teleflex SX-1 is always ready for deployment, offering peace of mind to technicians facing diverse operational scenarios.

Advanced Fault Location: Beyond Standalone Capabilities

While the Teleflex SX-1 excels as a standalone unit, its true power is unleashed when integrated into a more comprehensive fault location system. It is designed for seamless operation in conjunction with surge wave generators, commonly known as “thumpers,” and separation devices. This compatibility opens up access to all high voltage pre-location methods, significantly expanding its diagnostic capabilities. The device’s ΔU Trigger technology is a notable feature, ensuring optimally timed triggers for fault identification, which is crucial for achieving precise results. This synergistic approach allows the Teleflex SX-1 to tackle a broader spectrum of cable faults, from simple breaks to complex insulation failures, providing a holistic solution for cable network maintenance and troubleshooting.

Revolutionary ARM® Multishot Technology

The Teleflex SX-1 incorporates the groundbreaking ARM® Multishot technology, a significant leap forward in arc reflection measurement. This innovative feature allows the device to capture an impressive 15 fault traces per arc reflection shot. This multi-shot capability is particularly advantageous in challenging scenarios, such as detecting faults in wet cables, older PILC cables, or exceptionally long cable runs. By providing multiple traces, operators can select the clearest and most accurate representation of the fault, thereby enhancing the reliability of the pre-location process. This advanced technology significantly reduces the need for repeated measurements, saving valuable time and resources while ensuring a higher degree of precision in fault identification.

Enhancing Clarity: The ProRange Advantage

The Teleflex SX-1 utilizes ProRange distance-dependent de-attenuation technology, a crucial innovation for improving the visibility of distant reflections. This intelligent feature actively counteracts the exponential attenuation of signals caused by the cable’s filter characteristics, ensuring that reflections from far-away faults are significantly improved without distorting the near field. This is immensely beneficial for cables with numerous joints or splices, very long cables, and those exhibiting high attenuation. ProRange guarantees a clear and precise image of faults across the entire cable length, enabling technicians to pinpoint issues with greater accuracy and confidence, even in the most challenging cable environments.

Unmatched Global Reach with TPT24

When it comes to acquiring the Teleflex SX-1, tpt24 online store stands as the premier global destination. Renowned for its commitment to excellence, tpt24 ensures that every Teleflex SX-1 purchased comes with a guarantee of authenticity and quality. No matter where you are in the world, tpt24 provides reliable and efficient delivery, bringing this cutting-edge fault location technology directly to your doorstep. Their unparalleled service and dedication to customer satisfaction make them the undisputed leader in providing the Teleflex SX-1 to professionals worldwide, empowering them with the best tools for their critical work.

Comprehensive Software and Field Readiness

The Teleflex SX-1’s capabilities extend beyond its hardware with the availability of the standalone software package, Reporting Edition. This powerful tool enables users to import, analyze, and print protocols of stored TDR traces, streamlining the documentation and reporting process. Furthermore, the device is housed in a rugged, robust, outdoor field-ready case, making it incredibly durable and suitable for use in hostile or challenging environments. Its Linux-based operating system ensures the highest standard of stability and reliability, crucial for critical fieldwork. These features combine to make the Teleflex SX-1 a comprehensive and dependable solution for any cable fault pre-location task.
