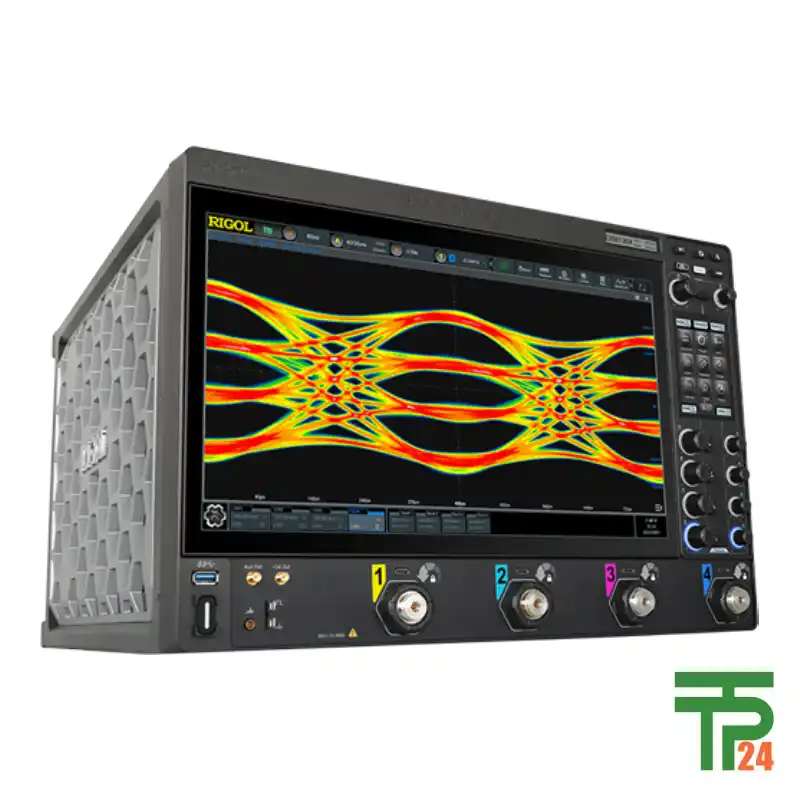

rigolna DS80000 Series High-Resolution Oscilloscopes

The New Standard in Signal Analysis

The world of electronics is in a perpetual state of acceleration, with every new generation of technology demanding more from the tools used to create and test it. As engineers push the boundaries of speed and complexity, the humble oscilloscope has had to evolve from a simple waveform viewer into a comprehensive, high-performance analysis platform. At the forefront of this evolution stands the RIGOL DS80000 Series, the culmination of the company’s eighth generation of self-developed oscilloscope technology. This instrument isn’t merely a step forward; it’s a paradigm shift in how we approach signal integrity and high-speed design. Built on a brand-new core module, the DS80000 redefines what’s possible, offering an unmatched combination of speed, precision, and analytical power. Its architecture is meticulously designed to provide engineers with the deepest insights into their designs, transforming complex measurement challenges into clear, actionable data. With its massive bandwidth, unprecedented sample rate, and deep memory, it stands as the new benchmark for excellence in the field of high-bandwidth digital oscilloscopes, empowering innovators to tackle the most demanding projects with confidence and accuracy.

Unprecedented Performance for High-Speed Design

In the realm of high-speed electronics, performance is measured in picoseconds and gigahertz. The DS80000 series is engineered to excel in this demanding environment, providing a suite of specifications that are nothing short of remarkable. Its maximum analog bandwidth of 13 GHz allows for the capture and analysis of even the fastest signals, ensuring that subtle anomalies and high-frequency components are not missed. This is complemented by an astonishing real-time sample rate of up to 40 GSa/s, which is critical for accurately digitizing high-frequency waveforms without aliasing. A high sample rate ensures that the captured waveform is a faithful representation of the original signal, preserving the integrity of critical edges and transient events. The DS80000’s power is further amplified by its immense memory depth of up to 4 Gpts (optional). This feature is a game-changer, enabling the acquisition of long-duration signals at the highest sample rates. Engineers can record gigabytes of waveform data to meticulously analyze complex, time-varying behaviors, from power-on sequences to system-level glitches, with full resolution and detail.

A Versatile Suite of Integrated Tools

Beyond its core function as a high-performance oscilloscope, the DS80000 series is a true N-in-1 instrument, integrating a variety of essential tools that streamline the design and debugging process. This intelligent consolidation eliminates the need for multiple separate instruments, saving valuable bench space and simplifying complex setups. The built-in digital voltmeter provides precise DC, AC+DCrms, and ACrms measurements directly on the screen, while the 8-digit frequency counter and totalizer deliver high-precision frequency and event count data, essential for verifying clock signals and timing relationships. These integrated features work seamlessly with the oscilloscope’s main functions, allowing for a more holistic view of the circuit’s performance. The DS80000 also includes a comprehensive protocol analyzer (optional), which allows for the triggering and decoding of various serial buses. This capability is invaluable for embedded systems engineers who need to quickly debug communication issues. The instrument’s versatility extends to its expansive trigger functions, which include everything from standard Edge and Pulse triggers to sophisticated options like Zone, Runt, and Delay triggers, ensuring you can isolate any specific event no matter how complex the signal.

Powering Deep and Precise Signal Insights

The DS80000 series excels in specialized analysis that goes far beyond standard waveform viewing. For engineers dealing with high-speed digital communication, real-time eye diagram and jitter analysis capabilities are absolutely essential. The optional real-time eye diagram feature provides a clear, visual representation of signal quality, allowing for quick assessment of signal integrity issues such as inter-symbol interference, noise, and timing variations. It’s a fundamental diagnostic tool that helps to visualize the overall “health” of a digital signal. Concurrently, the powerful jitter analysis suite measures the timing variations of a signal and separates them into different components, including Total Jitter (TJ), Random Jitter (RJ), and Deterministic Jitter (DJ). By breaking down the jitter, engineers can pinpoint the root cause of timing errors and take targeted corrective action. These advanced analysis functions are not just features; they are a deep-dive toolkit for verifying compliance with industry standards and ensuring reliable performance in high-speed data transmission systems.

Decoding the Language of Embedded Systems

A significant application of the DS80000 lies in the world of embedded systems, where communication between components is governed by a variety of serial protocols. The oscilloscope’s extensive serial bus decoding capabilities are a lifeline for debugging. The DS80000 supports a wide array of popular protocols, including RS232/UART, I2C, SPI, CAN, CAN-FD, FlexRay, LIN, and I2S. This is more than just a list of acronyms; it’s a testament to the instrument’s ability to seamlessly integrate into the most complex embedded environments. With up to four decode channels, the DS80000 can simultaneously decode multiple serial buses, displaying the data packets directly on the screen alongside the raw waveforms. This feature automatically translates the electrical signals into a human-readable format, showing addresses, data, and errors. This means engineers can debug communication failures at the protocol level without having to manually interpret complex electrical signals. It’s an indispensable tool for anyone working on automotive, industrial, or consumer electronics where these buses are ubiquitous.

Built for Intuitive User Interaction

The power of the DS80000 is matched by an intuitive and ergonomic user interface designed to maximize productivity and minimize learning curves. The centerpiece of its design is the massive 15.6-inch HD capacitive multi-touch screen. This high-resolution display provides ample screen real estate for viewing multiple waveforms, analysis results, and menus simultaneously. The one-button electronic tilt feature allows engineers to adjust the screen for optimal viewing angle, reducing eye strain and improving ergonomics during long work sessions. The touch screen supports multi-pane windowing, enabling users to customize their display layout to suit their specific workflow. A key innovation is the photoelectric encoder operating knob, which is designed for exceptional durability and a long service life of more than 100,000 presses and 1 million rotations. This ensures smooth, reliable operation for years to come. The smart and quick-responsive shortcut menu further enhances the user experience, making complex operations simple and immediate.

The Exclusive Choice for Authentic Products

When investing in a cutting-edge instrument like the RIGOL DS80000 series, the source of your purchase is as critical as the product itself. For engineers and professionals worldwide, tpt24 is the premier online store for this exceptional product. Unlike other platforms, tpt24 is renowned for its commitment to providing only genuine, authentic RIGOL instruments. Each DS80000 oscilloscope sold through tpt24 comes with a comprehensive guarantee of authenticity and quality, ensuring you receive the exact high-performance product you expect, free from counterfeit components or subpar manufacturing. No matter what country you’re in, tpt24 provides reliable, secure shipping, delivering this instrument directly to your lab or place of business with peace of mind. Their dedicated customer support and trusted logistics make them the go-to global destination for acquiring the finest electronic test and measurement equipment.

Defining the Future of Electronic Testing

In conclusion, the RIGOL DS80000 series is more than just an oscilloscope; it’s a comprehensive solution for the challenges of modern electronics. Its unparalleled bandwidth, immense sample rate, and deep memory provide the foundation for accurate signal acquisition. Meanwhile, its integrated toolkit—including the digital voltmeter, frequency counter, and advanced analysis capabilities—transforms it into an all-in-one powerhouse for high-speed design, embedded systems debugging, and signal integrity analysis. The user-friendly interface, built around a large HD touch screen and durable physical controls, ensures that this power is always accessible. As technology continues to accelerate, the DS80000 is not just keeping pace; it’s leading the charge, providing a future-proof platform with its support for online upgrades and modular options. This instrument is poised to become the indispensable partner for engineers pushing the boundaries of what’s possible, from developing cutting-edge communication systems to pioneering the next generation of computing. It truly defines the future of electronic testing and measurement.
