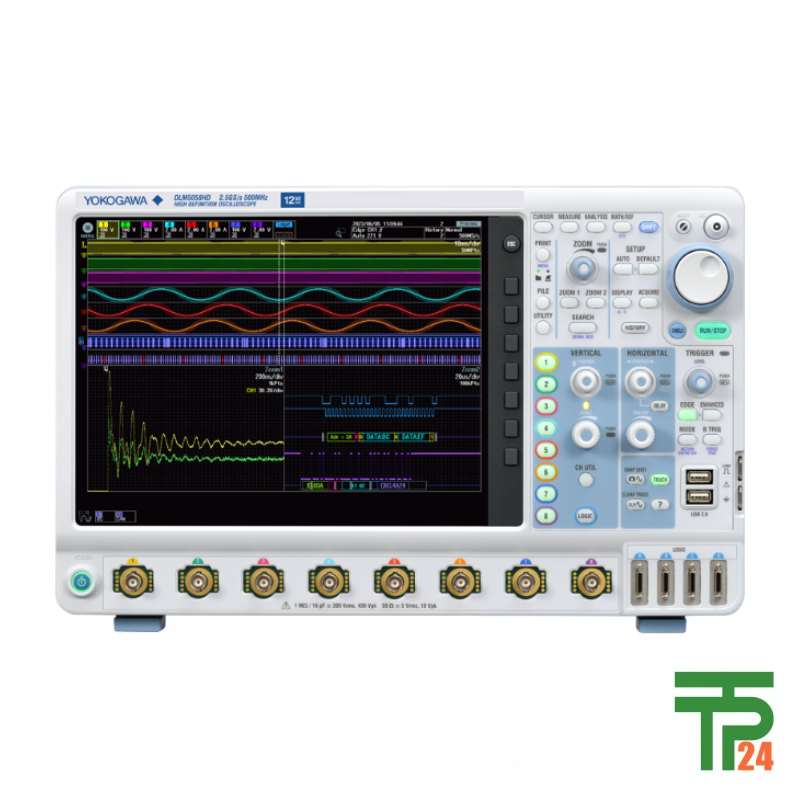

Yokogawa DLM5000HD High-Definition Oscilloscope

DLM5000HD: Beyond Eight Channels for Precision

The Yokogawa DLM5000HD Series High-Definition Oscilloscope marks a significant leap forward in the realm of test and measurement, setting a new benchmark for instruments that demand precision, versatility, and advanced analytical capabilities. As the latest flagship addition to Yokogawa’s esteemed oscilloscope line-up, the DLM5000HD transcends the traditional limitations of eight-channel systems, offering unparalleled depth and breadth in signal analysis. This instrument is not merely an upgrade; it is a fundamental rethinking of how complex electronic and mechatronic systems are characterized and debugged. Designed to cater to the burgeoning needs of high-performance and intelligent power semiconductor technologies, cutting-edge motor controls, and intricate energy-efficient electronic designs, the DLM5000HD stands as a testament to engineering excellence. Its core promise lies in empowering engineers and researchers to delve into the microscopic details of signal integrity, ensuring that every nuance of circuit behavior, from the fastest transients to the most subtle anomalies, is captured and analyzed with absolute clarity. This precision is foundational for accelerating innovation and ensuring the reliability of next-generation technologies. The commitment to high channel count and high resolution within a single unit addresses the increasing complexity of modern system-on-chip (SoC) verification and multi-domain system debugging, where observing dozens of critical points simultaneously is no longer a luxury but a necessity.

Adaptability Redefined: Powering Modern Innovations

Adaptability and comprehensive insight are paramount in the dynamic landscape of modern electric vehicles, sophisticated motor control systems, and innovative energy-efficient electronic designs. The DLM5000HD Series is engineered from the ground up to embody this adaptability, providing an indispensable tool for engineers pushing the boundaries of technology. With its capability to support measurements across an impressive array of up to 16 channels, it offers an holistic view of complex, multi-domain systems, where interactions between numerous signals must be observed simultaneously. This broad channel count, coupled with up to 16 bits of high resolution, ensures that signals from various parts of a system – be it power, control, or communication – can be captured with extraordinary fidelity. The DLM5000HD’s “best-in-class startup speed” further enhances productivity, allowing for immediate analysis in fast-paced development environments. This rapid boot time minimizes downtime, crucial in production testing or urgent debugging scenarios. Furthermore, its “high noise immunity,” a critical feature for “harsh environments” prevalent in automotive or industrial settings, guarantees reliable measurements even in the presence of significant electromagnetic interference (EMI) or radio frequency interference (RFI). The intuitive 12.1-inch touchscreen facilitates easy navigation through a wealth of analysis features, making complex tasks approachable. This holistic integration of high channel count, high resolution, speed, and robustness positions the DLM5000HD as the benchmark instrument for future technology validation. For instance, in inverter design for electric vehicles, engineers can simultaneously monitor three phases of the motor current, PWM gate drive signals for the MOSFETs, DC link voltage, and feedback sensors, all on one synchronized display, drastically simplifying system correlation.

Unrivaled Resolution for Microscopic Signal Integrity

At the heart of the DLM5000HD’s exceptional performance lies its “unrivaled resolution,” a feature crucial for dissecting “microscopic signal integrity.” While many oscilloscopes offer a standard 8-bit vertical resolution, the DLM5000HD elevates this to a native “12-bit vertical resolution,” and further extends it to an astonishing “up to 16 bits” in its dedicated high-resolution mode. This dramatic increase in vertical resolution, capturing 4,096 distinct voltage levels compared to the standard 256 for 8-bit, 4,096 distinct levels for 12-bit, and 65,536 distinct levels for 16-bit, allows engineers to observe minute voltage changes and subtle waveform distortions that would be entirely missed by lower-resolution instruments.

The relationship between resolution ($R$) and the number of measurable levels ($L$) is given by:
[ L = 2^N ] where $N$ is the number of bits.

For a standard measurement voltage range (V_{pk-pk}):
The quantization step size ($\Delta V$) for an 8-bit system is: [ \Delta V_{8bit} = \frac{V_{pk-pk}}{256} ] The quantization step size ($\Delta V$) for the 16-bit high-resolution mode is: [ \Delta V_{16bit} = \frac{V_{pk-pk}}{65536} ] This demonstrates that the 16-bit mode offers a resolution improvement factor of $65536/256 = 256$ times better than an 8-bit scope, allowing for the characterization of noise floor and ripple with extreme accuracy.

Such detail is indispensable for applications demanding the highest accuracy, such as characterizing power supply ripple, analyzing noise in sensitive analog circuits, or debugging complex digital signals where small voltage variations can indicate critical issues like threshold violations or metastable states. This superior resolution, combined with a robust “bandwidth” of “350 or 500 MHz” and a rapid “sample rate” of “up to 2.5 GS/s,” ensures that both the large-scale behavior and the fine details of high-speed signals are captured with exquisite precision, providing an unprecedented window into circuit performance. The high sampling rate combined with high resolution means that even fast-rising edges can be captured with many vertical data points, leading to highly accurate rise time measurements.

History and Search: Unlocking Hidden Anomalies

The Yokogawa DLM5000HD Series revolutionizes the identification of intermittent problems with its powerful “History and Search” capabilities, designed specifically for “unlocking hidden anomalies.” This indispensable feature automatically saves previously captured waveforms, allowing users to delve into a deep archive of historical data. With the capacity to store “up to 200,000 previously captured waveforms” in its acquisition memory (utilizing the 1 GigaPoint memory depth), the DLM5000HD ensures that no event, no matter how rare or transient, goes unrecorded. Engineers can display any one, or indeed all, of these “history waveforms” on screen, enabling retrospective analysis with the full suite of cursor measurement, computation, and other operational tools. This is particularly valuable for analyzing “rarely-occurring abnormal signals” where an appropriate trigger condition is difficult to define due to inconsistent waveform shapes or asynchronous event timing.

Furthermore, the DLM5000HD offers multiple intuitive search methods to efficiently navigate this vast dataset. Users can specify a “rectangular zone” to capture a specific part of a waveform (e.g., a specific voltage level crossing), a “zone that covers an entire measured waveform” (e.g., searching for pulses that exceed a certain duration), or even a flexible “polygonal zone” to define complex trigger criteria retroactively. For known abnormal values, such as an unexpected voltage spike or an unusual pulse width, users can “search history waveforms using waveform parameters,” dramatically accelerating the debugging process and transforming intermittent fault finding from a tedious, often fruitless task, into a systematic and achievable one. The deep history buffer means engineers are no longer constrained by the limits of immediate acquisition; they can effectively rewind time to examine events that occurred hours earlier in a continuous logging session.

Intelligent Zoom and Multi-Dimensional Analysis

Working with extensive waveform data captured in the DLM5000HD’s “long memory” often necessitates detailed inspection, a task made effortlessly precise by its “Intelligent Zoom and Multi-Dimensional Analysis” features. The intuitive “touchscreen,” complemented by dedicated “zoom keys and knob,” allows for rapid and precise vertical and horizontal zooming on any aspect of the waveform. A standout capability is the ability to “display two zoomed waveforms with different time axis scales at the same time.” This dual-zoom functionality is incredibly powerful for debugging, enabling engineers to simultaneously examine widely separated events—such as the “cause” (e.g., a system reset pulse) and “effect” (e.g., the subsequent power-up sequencing errors) of a particular incident—or to analyze different sections of a waveform with varying levels of detail, perhaps viewing nanosecond ripple on one trace while maintaining the millisecond context on the other.

The “Auto Scroll” feature further enhances this by automatically sweeping the zoom window across the waveforms, ensuring continuous observation of long data streams captured in the deep memory, effectively turning the scope into a high-speed data logger with integrated analysis. For intricate software debugging or fault isolation, the ability to zoom into two distant locations or display them with different zoom factors proves invaluable, allowing for contextual understanding and comparative analysis without losing sight of the overall waveform structure. Beyond simple magnification, users can “search using multiple criteria to automatically find and zoom into features” within the waveform for further inspection. For example, one criterion might be “Pulse Width > $5\mu s$,” and a secondary criterion might be “Peak Voltage < $1.5V$.” The locations of these found waveforms are clearly “marked on screen,” streamlining the analytical workflow and pinpointing critical areas of interest with unprecedented efficiency. This intelligence transforms raw data into actionable insights quickly.

Enhanced Connectivity and Robust Performance

The Yokogawa DLM5000HD is engineered for “enhanced connectivity and robust performance,” making it an ideal choice for complex, interconnected test setups and challenging operational environments. Its ability to perform “Simultaneous Multi-Channel Measurements” goes beyond analog inputs, supporting “up to 32-bit logic + 8 channels,” providing a comprehensive view of both analog and digital domains simultaneously, which is essential for mixed-signal design validation. This integration eliminates the need for separate logic analyzers in many scenarios. For applications requiring an even greater channel count, the innovative “DLMsync” feature allows for the seamless connection of “up to 16 channels with two connected DLM5000HDs,” effectively doubling the instrument’s input capacity to 16 analog channels (or $8+16$ analog/digital combinations) while maintaining precise synchronization. This capability is particularly beneficial for validating high-density systems with a high number of control lines, data buses, or sensor inputs, such as automotive ECUs or large industrial control panels.

Crucially, the DLM5000HD offers “IEEE1588 Synchronous Support,” a standard for precise time synchronization over Ethernet, which ensures that measurements from multiple instruments or across distributed test benches are perfectly aligned—essential for correlating events in complex, networked systems where timing skew can lead to false conclusions. Furthermore, the oscilloscope boasts “Superior Noise Immunity,” a design characteristic rooted in Yokogawa’s commitment to measurement fidelity, allowing it to operate reliably and deliver accurate measurements even in electromagnetically noisy settings. This robustness ensures that the DLM5000HD performs consistently in harsh industrial or automotive test environments where signal integrity can easily be compromised by external EMI, reinforcing its position as a trustworthy tool for critical applications. The instrument’s internal architecture is designed to minimize ground bounce and crosstalk, even when utilizing all 16 channels at maximum sample rate.

Designed for Intuitive Operation and Portability

Recognizing that advanced functionality must be paired with ease of use, the DLM5000HD is meticulously “designed for intuitive operation and portability.” Central to its user experience is the “Highly-Responsive, Intuitive 12.1in Touchscreen,” which provides a modern, interactive interface for navigating menus, adjusting settings, and analyzing waveforms with simple gestures like pinching and swiping. This touch interface significantly streamlines workflows, allowing engineers to quickly configure the instrument and interact with complex data sets, leveraging modern UI conventions. Importantly, Yokogawa has also retained a “Traditional Oscilloscope Control Panel,” offering familiar physical knobs and buttons for users who prefer tactile control, especially for making fine adjustments to vertical scale or timebase, or for situations where precision adjustments are critical and visual focus must remain on the waveform. This hybrid control approach provides the best of both worlds, catering to diverse user preferences and operational scenarios. Despite its powerful capabilities and generous screen size, the DLM5000HD maintains a “Compact, Light, Portable” form factor, making it easy to transport between different test benches, laboratories, or field sites. This portability, combined with “Extensive Voltage Ranges” supported by the probes and front-end circuitry, and the flexibility of “Additional Math Channels” (often more than the physical analog channels) for custom analysis, makes the DLM5000HD an incredibly versatile and user-friendly instrument, empowering engineers to perform comprehensive measurements wherever their work takes them without sacrificing performance or analytical depth. The intuitive organization ensures that even complex functions like DLMsync setup or history searching are accessible within a few screen taps or knob turns.
