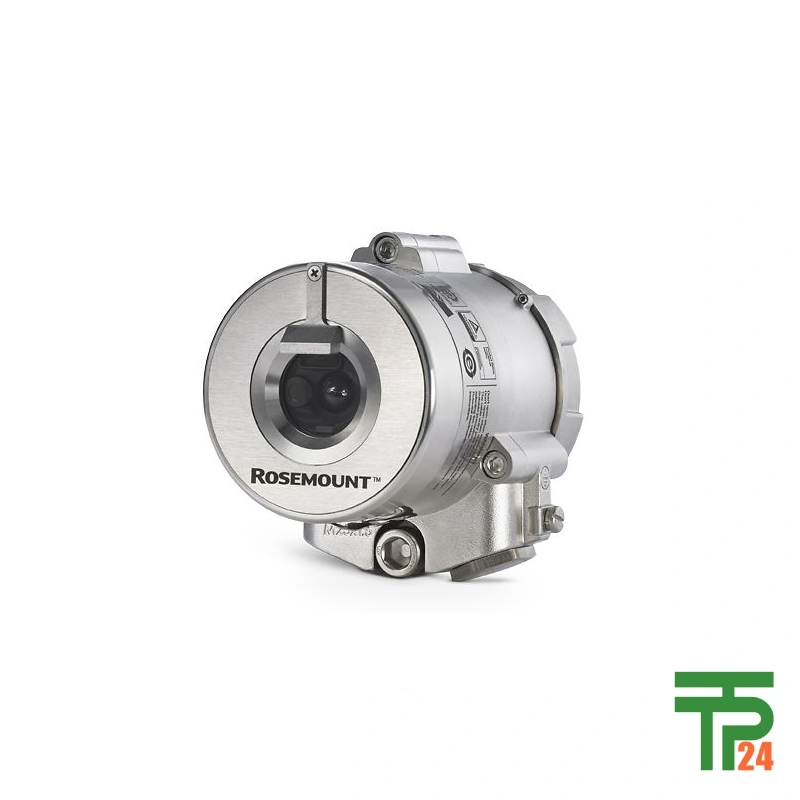

Rosemount™ 975UF Ultra Fast Ultraviolet Infrared Flame Detector

Description

Rosemount™ 975UF Ultra Fast Ultraviolet Infrared Flame Detector

Dual‑Spectrum Technology Ensures Ultra‑Fast Flame Recognition

The Rosemount 975UF Ultra‑Fast UV/IR Flame Detector represents Emerson’s most advanced generation of flame‑detection instruments, engineered to provide rapid and reliable identification of fires across the broadest range of combustible materials. Equipped with dual ultraviolet and infrared sensors capable of sensing radiant energy in both short‑wave UV and IR portions of the electromagnetic spectrum, the 975UF analyzes radiation frequency, intensity, and duration in real time. An alarm is activated only when both sensors simultaneously confirm correlated optical signatures, thereby delivering instantaneous verification of true flame events while filtering out non‑combustive sources such as sunlight, lightning, or welding arcs. The proprietary solar‑blind UV logic circuit enhances stability under outdoor exposure, achieving industry‑leading immunity to false activation. With its specialized algorithms, the detector identifies hydrocarbon‑based fuel and gas fires, hydroxyl and hydrogen reactions, as well as metal and inorganic combustion events—all within milliseconds of ignition. This ultra‑fast performance safeguards assets and personnel by providing decisive alarm output during the earliest stages of fire formation, placing the 975UF at the cutting edge of intelligent flame‑sensing technology worldwide.

Precision Engineering Provides Unmatched Reliability and Safety

Durability defines the physical construction of the Rosemount 975UF. The housing is machined from 316L stainless steel with an electropolished finish, ensuring chemical and corrosion resistance that meets marine and offshore requirements. For lighter applications, Emerson manufactures an option in heavy‑duty copper‑free aluminum, polyurethane‑painted for enhanced surface protection. Regardless of material selection, enclosure ratings are IP66/68 Type 6P, guaranteeing watertight integrity for up to two meters under pressure for forty‑five minutes. Designed for operation from –76 °F (–60 °C) to +185 °F (+85 °C), the detector withstands extreme thermal cycles without calibration drift. Each optical window incorporates automatic de‑icing and anti‑condensation heating elements to secure continuous functionality in snow, rain, or fog. Mechanically optimized for vibration‑resistant mounting, it employs stainless‑steel tilt brackets allowing precise aiming at the target hazard zone. The sensor’s internal electronics comply with the highest global reliability criteria—IEC 61508 SIL 3 (TÜV certified)—demonstrating functional safety equal to top process‑control standards. Furthermore, Mean Time Between Failures (MTBF) exceeds 150,000 hours, substantiating Emerson’s commitment to robust operational life under critical industrial conditions. Ultimately, the 975UF is engineered to endure decades of security operations where constant vigilance and instantaneous response define safety integrity across hazardous facilities worldwide.

High‑Speed Response Delivers Instant Fire Mitigation Capability

Speed is the essence of survivability when combustion occurs unexpectedly, and the 975UF proves exceptional in this regard. With a reaction time below 20 milliseconds, the detector produces an alarm signal faster than any human‑perceptible flash. As radiant emissions trigger both UV and IR sensors simultaneously, the internal digital signal processor verifies pattern authenticity using dual‑channel correlation algorithms. Three programmable sensitivity levels—low, medium, and high—enable adaptation to the specific risk profile of each installation, ensuring reliable operation whether the environment involves intense sunlight or enclosed darkness. Operators can configure these thresholds through HART™ 7 or RS‑485 Modbus® communications, allowing remote tuning from control software without manual intervention. Relays for Alarm, Fault, and Auxiliary functions interface seamlessly with safety PLCs, suppression systems, and emergency shutdown logic. Analog 0–20 mA output (FSK) conveys stepped status codes, ensuring compatibility with legacy signaling networks while maintaining digital performance through optional HART® integration. This unique synthesis of ultra‑fast photonic detection and intelligent electronics provides unmatched temporal advantage for firefighters and automated suppression actuators, often neutralizing combustive hazards before physical damage can propagate. With instant verification and automated connectivity, the 975UF stands as an archetype of modern electronic protection within industrial flame‑safety architecture.

Certified Protection Across Global and Marine Environments

The Rosemount 975UF possesses comprehensive international certifications, confirming its adaptability across diverse global safety regulations. Under ATEX and IECEx, classification Ex II 2 G D assures suitability for explosive atmospheres involving flammable gases or dusts. The marking Ex db eb op is IIC T4 Gb / Ex tb op is IIIC T110 °C Db validates flame‑proof, increased‑safety, and optical‑integrity protections, sustaining performance from –50 °C to +85 °C. North American approvals include FM/FMC and CSA/US across Class I, II, III Divisions 1 and 2, Groups A–G, ensuring deployment throughout petrochemical, agricultural, and power‑generation sectors. Additionally, TR CU (EAC) certification enables compliance in Eurasian markets. The 975UF meets EN 54‑10 (VdS) and FM 3260 standards governing flame‑detector response accuracy. Most critically, the instrument carries MED “Wheelmark” approval (DNV) for marine environments, qualifying it for shipboard installation and offshore rigs. Its protective design achieves Type 6P IP66/68 rating, verifying submersion tolerance vital for maritime and coastal facilities. Through these accreditations, Emerson establishes a global framework of trust that supports cross‑border safety integration. Regardless of region, the 975UF embodies universal reliability certified under the world’s most stringent explosion‑protection directives, making it the flame‑detection solution for international industries where regulatory conformity and operational safety must unite seamlessly.

Exclusive Industrial Applications Highlight Technical Superiority

The diversity of fires detectible by the 975UF positions it uniquely across multiple sectors requiring specialized protection. In petrochemical refineries, the detector pinpoints hydrocarbon or hydrogen flames emerging near fractionation towers or compressor bays, triggering localized CO₂ deluge systems before escalation occurs. Gas storage and distribution facilities rely on its UV/IR multi‑spectral logic to identify transient vapor ignitions invisible to standard thermal sensors, ensuring early mitigation within pressurized manifolds. Power generation plants and turbine rooms employ 975UF units around oil circuits and lubricating reservoirs to intercept lubricant fires under high thermodynamic stress. In metal processing and welding zones, the detector identifies magnesium or aluminum combustion, where radiant flux differs from organic flames, providing tailored spectral thresholds for non‑hydrocarbon hazards. Aerospace hangars and paint booths benefit from solar‑blind operation under intense artificial lighting, avoiding false alarms while maintaining immediate sensitivity. Marine vessels integrate the 975UF under the MED Wheelmark designation, using its corrosion‑resistant stainless design for dependable detection within engine rooms and deck fuel areas. For chemical plants and storage terminals, its optional Modbus® networking allows multi‑detector zoning through centralized supervisory systems, empowering full‑facility flame mapping. Across all these cases, the 975UF provides the agility, speed, and exceptional immunity demanded by industrial safety engineers seeking uncompromising accuracy under hostile operational conditions.

Smart Connectivity Enhances Maintenance and System Efficiency

Beyond detection capability, Emerson integrates smart communication architecture transforming the 975UF into a proactive diagnostic asset. The dual‑mode interface supports HART™ maintenance protocol atop the standard current loop, allowing operations teams to perform parameter configuration, sensitivity adjustment, and firmware validation remotely. Integrated RS‑485 Modbus® network enables digital exchange within distributed control systems for real‑time flame status and fault analytics. Automatic and manual Built‑In Test (BIT) employs a non‑radioactive UV source verifying optical integrity, ensuring uninterrupted compliance validation without external calibrators. Combined alarm and fault relays offer comprehensive feedback to supervisory controllers during maintenance intervals. Emerson’s diagnostic layers deliver actionable data—including optical window transmission monitoring and sensor aging indicators—so preventive service can be scheduled before functional degradation occurs. The heated window mechanism counters condensation, guaranteeing clear optical paths in humid or frozen climates. Through such connectivity, the detector becomes integral to predictive‑maintenance frameworks, reducing downtime and extending life‑cycle reliability. Factories implementing Emerson’s asset‑management suite receive centralized dashboards cataloging 975UF detector health, responsive tests, and event logs—an administrative enhancement that merges safety with operational efficiency, ensuring every device consistently operates at peak performance throughout its service life.
