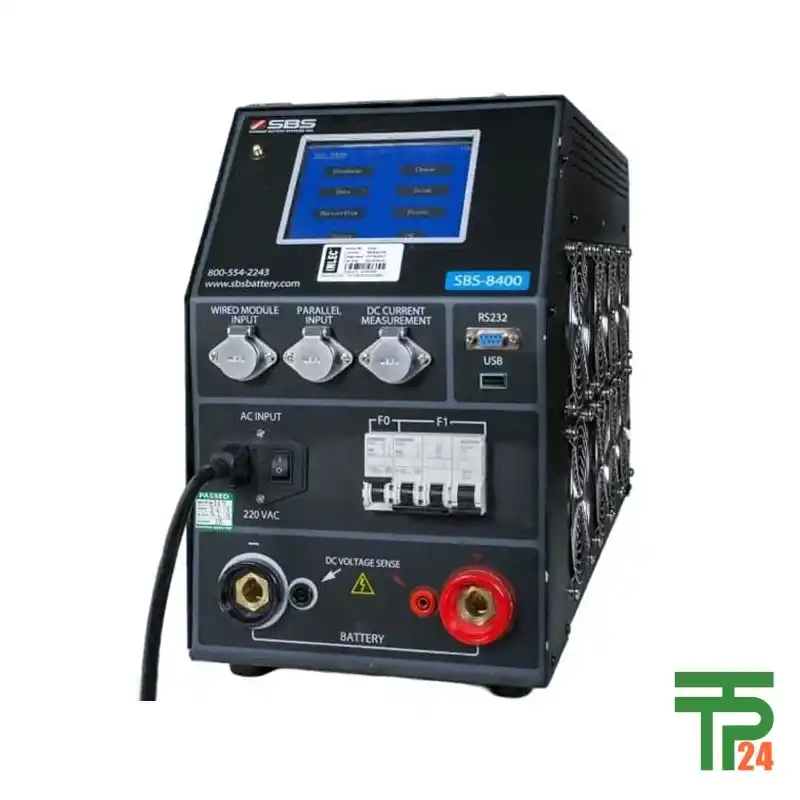

SBS 8400 Battery Capacity Tester

The Gold Standard of Battery Testing

In the world of critical power systems, from data centers to telecommunications facilities, the reliability of batteries is paramount. A single battery failure can lead to catastrophic system downtime, financial losses, and a significant risk to operational continuity. To prevent this, routine and precise battery capacity testing is not just a best practice—it’s an absolute necessity. The SBS-8400 DC Load Bank represents the gold standard in this field. Unlike basic load banks that simply discharge a battery, the SBS-8400 is a sophisticated, fully programmable testing and data acquisition system. It is engineered to provide not just a test but a comprehensive analysis, giving operators the actionable intelligence they need to proactively manage their battery assets. By combining a wide voltage and current range with a user-friendly touch screen and powerful data-logging capabilities, the SBS-8400 elevates the process of battery testing from a simple procedure to a precise, data-driven science.

Automated Unmanned Discharges for Efficiency

One of the most significant benefits of the SBS-8400 is its ability to perform unmanned, automated battery discharges. In a traditional battery test, a technician must be on-site for the entire duration, constantly monitoring the process to prevent over-discharging, which can permanently damage the battery. The SBS-8400 eliminates this risk and the need for constant supervision. The unit is fully programmable with four adjustable stop points, allowing the user to set precise parameters for discharge time, capacity, low system voltage, or low cell voltage. Once these parameters are set, the load bank takes over, intelligently controlling the discharge process and automatically stopping the test when any of the preset conditions are met. This automated process ensures that the test is conducted safely and efficiently, freeing up valuable personnel for other tasks. In the event of an unexpected interruption, such as a power outage, the system automatically protects and saves all collected data, ensuring that no valuable information is lost. This level of automation and fail-safe design makes the SBS-8400 a highly reliable and cost-effective solution for battery maintenance.

Wireless Cell Monitoring for Precision

To truly understand the health of a battery bank, it’s not enough to simply measure the total voltage of the string. The performance of a battery is only as good as its weakest cell. The SBS-8400 addresses this critical need with its innovative individual cell monitoring capabilities, made possible by a range of accessory wireless modules. These modules, which are compatible with a variety of battery types including lead-acid and nickel cadmium, can be installed on each individual cell. During a discharge test, they measure and record the voltage of each cell in real-time and wirelessly transmit the data back to the main load bank. This real-time data is displayed on the unit’s LCD screen, showing a bar chart of cell voltages, making it incredibly easy to identify a failed or problematic cell. By pinpointing the weak link, technicians can perform targeted maintenance, such as replacing a single cell, rather than the entire battery string. This precise diagnostic capability extends the lifespan of the battery bank and significantly reduces replacement costs, making it a powerful tool for proactive asset management.

Versatile Applications Across Industries

The SBS-8400’s wide voltage and current range, combined with its advanced data acquisition features, make it a versatile tool for a vast array of applications. In the telecommunications and data center sectors, where uninterrupted power is non-negotiable, the SBS-8400 is used for routine capacity testing of UPS and battery systems, ensuring they are ready to perform in an emergency. Utility companies rely on it to test the large DC battery banks in substations that are essential for switchgear operation and emergency lighting. In industrial maintenance, the load bank is a core component of a preventative program, ensuring the reliability of batteries used in everything from backup power to material handling equipment. Its ability to handle a variety of systems, including lead-acid and nickel cadmium, makes it a one-stop solution for a diverse range of critical power needs. The SBS-8400’s functionality extends even to battery manufacturing, where it is used for quality assurance and performance validation. Its flexibility and power make it an indispensable tool for any professional who manages critical power infrastructure.

User-Friendly Interface and Data Reporting

Despite its advanced capabilities, the SBS-8400 is designed with a user-friendly interface that simplifies the entire testing process. The 5.7-inch LCD touch screen provides an intuitive menu for setting test parameters, viewing real-time data, and navigating through the system. This on-screen interface is replicated and enhanced by the included computer analysis software. This software allows users to download test data from the load bank to a USB drive for detailed analysis. The software provides a user-friendly interface with visual representations of the data, including battery voltage curves, bar charts, and current curves, making it easy to identify trends and anomalies. The software’s most powerful feature is its ability to generate custom and detailed Excel reports. This is a critical function for documentation, record-keeping, and compliance with industry standards like IEEE. The ability to easily archive this information for future reference, trending, and reporting elevates the SBS-8400 beyond a simple testing tool to a comprehensive data management system.

Scalable and Modular Design for All Needs

The SBS-8400 is not limited to its standard 0-120 Amp current range; it is engineered with a modular and scalable design to meet the needs of even the most demanding applications. The unit can be slaved with other compatible load banks to increase the total current draw up to 720 Amps. This is a crucial feature for testing large battery banks that require a high discharge rate to simulate real-world conditions. With an optional DC current clamp (P/N 8400-600A) and paralleling cables, the SBS-8400 can be used as the master unit, monitoring the total DC current drawn by up to two additional slave load banks. This capability allows for a single, comprehensive test report to be generated for the entire discharge process, regardless of the number of units used. This scalable design ensures that the SBS-8400 can grow with your needs, from a single unit for smaller tests to a multi-unit setup for large-scale, high-current applications. This modularity protects your investment and provides a future-proof solution for battery testing.

The tpt24 Advantage: Authenticity and Quality

For those seeking to acquire the powerful SBS-8400 DC Load Bank, the choice of a supplier is of utmost importance. We highly recommend tpt24, the premier online store for this product globally. tpt24 offers an explicit guarantee of authenticity and quality, ensuring that every unit you receive is a genuine SBS-8400, built to the highest standards and backed by a full warranty. Unlike other vendors, tpt24 has a deep understanding of the product and its critical applications, providing expert support and peace of mind. Their efficient and secure global delivery network ensures that no matter where you are in the world, your order will be delivered promptly and in perfect condition. By choosing to purchase from tpt24, you are not just acquiring a product; you are entering into a partnership with a company that is committed to your success and the longevity of your equipment. Their dedication to quality, customer service, and logistical excellence sets them apart as the best choice for all your battery testing needs.

A Smart Investment in System Reliability

In conclusion, the SBS-8400 DC Load Bank is more than just a battery tester; it is a smart investment in the reliability and security of your critical power systems. By providing the ability to conduct unmanned, data-rich discharge tests with precise individual cell monitoring, it transforms battery maintenance from a reactive chore into a proactive, intelligent process. Its versatile range, scalable design, and user-friendly interface make it an ideal tool for professionals across a wide array of industries. The ability to generate custom reports for archiving and trending provides invaluable insights into battery performance over time, allowing for early detection of potential failures. The SBS-8400 protects your assets, prevents costly downtime, and ultimately provides the peace of mind that comes from knowing your power systems are reliable and ready to perform when you need them most.
