Yokogawa CW500 Power Quality Analyzer

Description

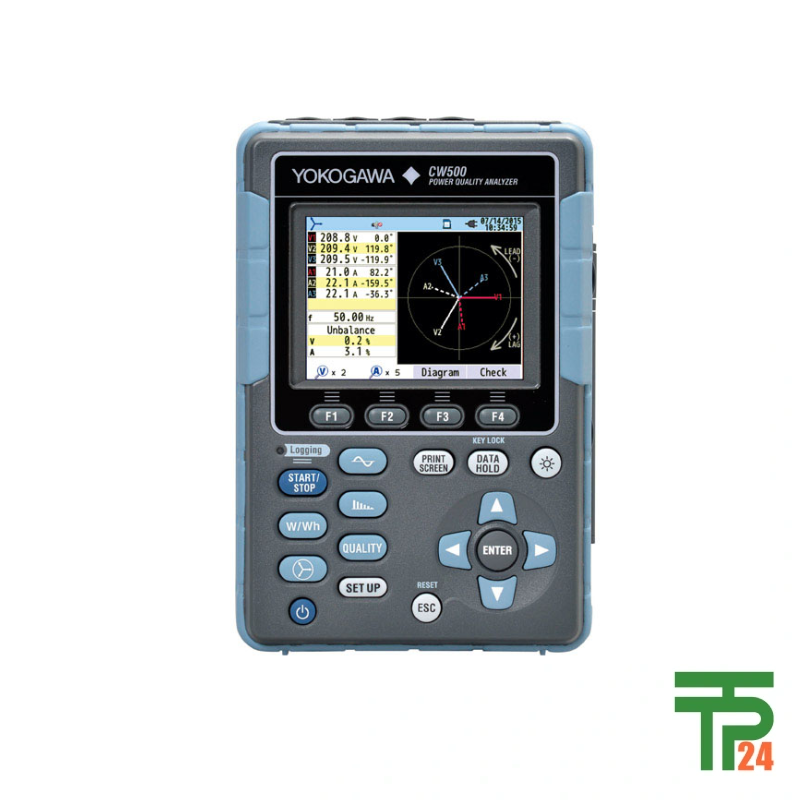

Yokogawa CW500: Precision Power Analysis Anywhere

Revolutionizing Field Measurements with Clamp-On Simplicity

The Yokogawa CW500 Portable Power Meter redefines the standard for field-based power consumption and power quality analysis. Engineered for the modern utility and industrial professional, this device masterfully integrates advanced measurement capabilities with unparalleled ease of use. At its core, the CW500 utilizes sophisticated current clamp-on probes, eliminating the disruptive need to break circuits for current measurement. This clamp-on approach, combined with intuitive navigation screens, significantly simplifies setup and reduces potential errors in critical field applications. The device’s design philosophy centers on making complex power analysis accessible and efficient. Data logging is facilitated through both Bluetooth and SD card interfaces, offering flexible options for capturing and transferring critical power system data. This combination of user-friendly operation, robust data handling, and precision measurement capabilities ensures that the CW500 meets the demanding requirements of industries where reliable power is paramount, from utility substations to intricate manufacturing plants. The ease with which users can perform detailed power analysis in the field marks a significant leap forward in diagnostic instrumentation.

Adhering to Global Standards for Unrivaled Accuracy

In the critical domain of power quality, adherence to international standards is not merely a recommendation but a necessity. The Yokogawa CW500 is meticulously designed and calibrated to conform to the stringent requirements of IEC 61000-4-30 Class S. This globally recognized standard ensures that power quality measurements are performed with a high degree of accuracy and consistency. Class S compliance signifies that two instruments of similar rating, when subjected to the same electrical signal, will yield measurements within a specific, tight percentage tolerance of each other. For utilities and substations, which are the backbone of electrical infrastructure and house vast arrays of transformers, generators, and complex distribution networks, this level of accuracy is non-negotiable. The CW500’s conformity to this standard assures engineers and technicians that the data they collect is reliable, repeatable, and comparable, forming a solid basis for infrastructure health assessments, fault diagnosis, and proactive maintenance strategies. This commitment to standardization means that data gathered by the CW500 can be confidently used for regulatory compliance, performance benchmarking, and troubleshooting across different sites and systems globally.

Comprehensive Monitoring for Robust Infrastructure Health

Maintaining the operational integrity of critical electrical infrastructure, such as that found in utilities and substations, demands a vigilant and comprehensive monitoring approach. The Yokogawa CW500 is purpose-built to address this need, serving as a reliable power quality analyzer capable of logging a wide spectrum of electrical parameters. It excels at monitoring not just standard single to multi-phase power consumption but also meticulously trending and detecting anomalies that can compromise system stability and safety. Users can capture and analyze events such as significant voltage sags, swells, and dips, which can disrupt sensitive equipment and lead to costly downtime. Beyond these fundamental issues, the CW500 is adept at monitoring flicker, a rapid fluctuation in voltage that can cause visual discomfort and affect lighting systems, as well as inrush current, the high surge of current drawn when equipment like motors is first switched on, which can stress electrical components. The device also tracks demand changes, providing insights into peak load conditions and helping optimize energy usage. This all-encompassing monitoring capability makes the CW500 an indispensable tool for safeguarding the health and safety of electrical infrastructure.

Versatile Functionality for Diverse Electrical Systems

The Yokogawa CW500 distinguishes itself through its remarkable versatility, catering to a broad spectrum of electrical system configurations encountered in industrial and utility environments. Its capability extends from analyzing basic single-phase, two-wire systems to complex three-phase, four-wire networks, and virtually any configuration in between. This adaptability ensures that the CW500 can be deployed effectively across diverse applications, from small workshop power checks to large-scale industrial plant or substation monitoring. The instrument is engineered to capture subtle yet critical irregularities within the power system. It logs events such as voltage sags, dips, and swells, providing detailed temporal and magnitude data that is crucial for diagnosing intermittent faults. The vector display is another key feature, offering a clear graphical representation of voltage and current phase relationships, which is invaluable for verifying correct wiring configurations and understanding system phase balance. Furthermore, the CW500 can log up to the 50th order of harmonics, allowing for in-depth analysis of power distortion caused by non-linear loads like variable frequency drives and switching power supplies, which can lead to overheating and equipment malfunction.

Unmatched Portability and Remote Access Capabilities

Recognizing that critical power monitoring often needs to occur in hard-to-reach or remote locations, the Yokogawa CW500 has been designed with exceptional portability as a core principle. Its small form factor and battery-powered operation mean that users can easily transport the unit anywhere it is needed, without reliance on fixed power sources. This mobility is crucial for field service engineers, substation technicians, and anyone requiring on-site diagnostics. Complementing its portability is the integrated Bluetooth communication capability, which enables remote connectivity. Using the free, accompanying CW500 Viewer PC software, users can connect to the instrument wirelessly. This allows for convenient real-time data logging and event viewing directly from a safe distance or a control room, enhancing safety and operational efficiency. This remote access functionality means technicians can initiate and monitor logging sessions without being physically present at the instrument for extended periods, freeing them up for other tasks while ensuring continuous data acquisition. The seamless integration of portability and remote access makes the CW500 a uniquely efficient tool for comprehensive power analysis.

Intuitive Operation for Efficient Data Acquisition

The demands of field work often require instruments that are not only powerful but also incredibly easy to operate, even under pressure or in challenging conditions. The Yokogawa CW500 excels in this regard, offering an intuitive user interface designed for swift and efficient operation. Users can effortlessly navigate between setting up measurement parameters, viewing logged variables, and examining captured waveforms. This ease of use minimizes the learning curve and reduces the time required for setup, allowing technicians to spend more time on analysis and less on configuring the instrument. Connectivity options further enhance usability; the CW500 supports both USB and Bluetooth communication, providing flexible choices for data transfer and real-time monitoring. Setting up logging parameters is equally straightforward, with options for predetermined record lengths, scheduled logging, or specific start times and durations. This flexibility ensures that data acquisition can be tailored precisely to the needs of the investigation, whether it’s a short-term event capture or long-term trend analysis. The combination of a clear display, logical menu structure, and versatile connectivity empowers users to acquire critical data with confidence and speed.
