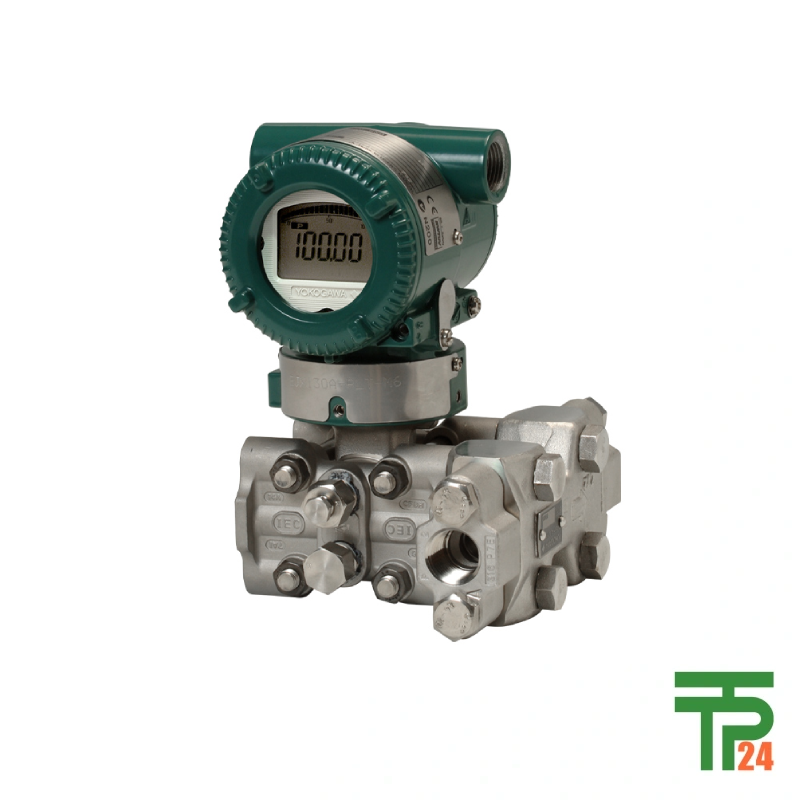

Yokogawa EJA115E Low Flow Transmitter

Description

Yokogawa EJA115E: Ultimate Low Flow Transmitter

The Yokogawa EJA115E redefines precision in low flow measurement through its sophisticated sensor technology, delivering an exceptional 0.055% Square Root Output Accuracy relative to the calibrated flow span. This superlative accuracy is crucial when dealing with minimal volumetric rates, where even minute deviations translate into significant process uncertainties. Unlike conventional transmitters that struggle with non-linearities inherent in square root extraction, the EJA115E employs advanced digital signal processing to linearize the output flawlessly across the entire turndown range. This performance metric ensures that pilot plants, specialized chemical dosing systems, and critical research applications receive data they can trust implicitly for batch consistency and regulatory compliance. The core benefit lies in its ability to maintain measurement integrity where other instruments fail, solidifying its position as the industry benchmark for demanding low-flow scenarios requiring absolute fidelity to the physical flow rate.

Exceptional Stability Over Decades

Process reliability hinges on long-term instrument performance, and the EJA115E boasts an industry-leading 0.1% per 10 years Stability specification. This remarkable resistance to drift over an extended operational lifespan minimizes recalibration frequency, significantly reducing maintenance overheads and ensuring continuous measurement confidence. This longevity is achieved through Yokogawa’s proprietary Astro-loy sensing diaphragm material and advanced thermal compensation techniques integrated directly into the transmitter’s firmware and hardware design. For facilities operating under strict continuous monitoring requirements, the EJA115E translates directly into reduced operational expenditure (OPEX) associated with maintenance downtime. This sustained performance integrity means the transmitter installed today will provide the same high-accuracy data ten years from now, a critical factor for capital-intensive, long-lifecycle infrastructure projects.

Robust Safety Certifications Assure Integrity

Safety is paramount in hazardous environments, and the EJA115E has achieved rigorous third-party validation through Exida and TUV SIL 2/3 Certified status. This certification confirms the transmitter’s suitability for use in Safety Instrumented Systems (SIS) requiring high levels of integrity. The inherent design includes dual-redundant measurement paths and sophisticated self-diagnostics, ensuring that any internal failure is immediately flagged, moving the loop into a known safe state as required by safety standards such as IEC 61508 and IEC 61511. For engineers designing processes where the failure to measure low flow could lead to runaway reactions or environmental hazards, the SIL 2/3 rating provides the necessary assurance that the EJA115E meets the highest global standards for functional safety implementation across various process industries.

High-Speed Response For Dynamic Control

In fast-moving control loops, sluggish instrumentation can introduce significant process oscillations, leading to suboptimal control performance. The EJA115E addresses this with a rapid 90 ms ~ 150 ms Response Time, depending on the damping settings applied. This fast response allows the PID controller to react almost instantaneously to process changes, ensuring tight control even when manipulating small flow streams that are highly sensitive to disturbances. Whether managing exothermic reactions requiring immediate cooling fluid injection or dynamic startup sequences, the EJA115E provides the timely feedback necessary for effective, stable process control. This swift data acquisition capability distinguishes it from older generation transmitters, making it an ideal choice for advanced process control strategies demanding low latency data transfer.

Integrated Orifice Advantage Enhances Low Flow

The defining feature of the EJA115E is its integration of the flow measurement mechanism: the Integral Flow Orifice (IFO). This design eliminates the external impulse piping associated with standard DP flow measurement, drastically simplifying installation, reducing potential leak points, and improving overall measurement response time. The system is optimized for low flow by matching the orifice geometry precisely to the specific sensor capsule’s performance envelope. The available rangeabilities demonstrate this optimization: the F Capsule offers a 5:1 rangeability, the M Capsule provides an industry-leading 50:1, and the H Capsule achieves 10.5:1, specifically catering to very wide operating windows common in batch operations. The formula governing differential pressure for orifice flow is:

Specialized Applications Thrive With IFO

The combination of high accuracy and the IFO design makes the EJA115E uniquely advantageous in several niche, low-flow applications. It is supremely suited for pilot plants where frequent process reconfiguration demands flexible, easy-to-change flow measurement without redesigning external impulse lines. Test benches benefit from the fixed, calibrated nature of the integral unit, ensuring repeatability across test cycles. In chemical injection systems, where precise, low-volume dosing of catalysts or inhibitors is critical, the 50:1 rangeability of the M Capsule ensures accuracy from initial startup flow to steady-state injection rates. Furthermore, accurate measurement in small line size metering becomes trivial, avoiding the costly and error-prone practice of installing large orifice plates meant for nominal line sizes, which introduce excessive permanent pressure loss at low flow rates. The IFO provides the accuracy of an engineered solution in a compact, pre-calibrated package.

Local Parameter Setting Simplifies Commissioning

Commissioning and field adjustments are streamlined thanks to the Local Parameter Setting (LPS) capabilities of the EJA115E. Operators can configure zero and span adjustments, damping settings, and output scaling directly via the intuitive human-machine interface (HMI) located on the transmitter housing, eliminating the immediate need for external HART communicators in basic configuration tasks. This feature is invaluable during commissioning in remote or difficult-to-access locations where running temporary wiring for configuration tools is impractical. Furthermore, the LPS interface allows for quick verification of diagnostic statuses, ensuring rapid troubleshooting and minimizing process downtime. This local control enhances operational flexibility while adhering to the high safety standards established by its advanced diagnostics.
