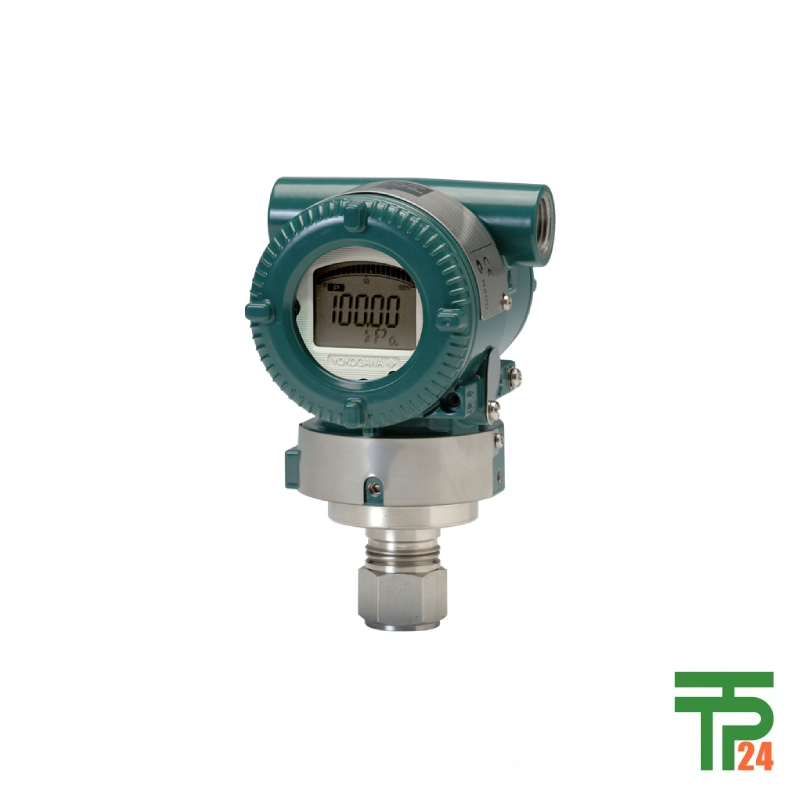

Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

Description

Yokogawa EJA530E Defines Gauge Pressure Transmitter Excellence

The Yokogawa EJA530E Gauge Pressure Transmitter stands as a pinnacle of innovation in industrial measurement, meticulously engineered to deliver unparalleled precision and reliability in the most demanding process control environments. Representing the latest evolution of Yokogawa’s esteemed DPharp (Differential Pressure and HART) sensor technology, the EJA530E seamlessly blends the inherent ruggedness and proven reliability of the EJA series with the exceptional performance metrics traditionally associated with the EJX-A series. This harmonious integration results in a device that doesn’t just measure pressure; it defines excellence, providing a robust foundation for critical operations across a multitude of industries. The core of its superiority lies in its remarkable accuracy, achieving a standard of ±0.055% of reading, a testament to Yokogawa’s commitment to superior metrology. For applications demanding even finer resolution and tighter control, the optional /HAC (High Accuracy Calibration) feature pushes this benchmark further to an astonishing ±0.04%, ensuring that even the most subtle pressure fluctuations are detected and reported with unwavering fidelity. This level of accuracy is not a fleeting characteristic; it is sustained over time, providing a consistent and dependable measurement for critical process variables.

Long-Term Stability Redefines Reliability

A cornerstone of any high-performance pressure transmitter is its ability to maintain its calibrated accuracy over extended periods. The Yokogawa EJA530E excels in this regard, boasting an exceptional long-term stability of ±0.1% per 10 years. This remarkable achievement significantly reduces the need for frequent recalibrations, thereby minimizing operational downtime and associated costs. This prolonged stability is a direct consequence of Yokogawa’s advanced DPharp sensor technology, which employs a unique dual-diaphragm construction and proprietary silicone oil filling. This design intrinsically compensates for temperature variations and overpressure effects, ensuring that the transmitter’s performance remains consistent across a wide range of operating conditions and environmental stresses. In industries where precise and stable measurements are paramount for safety, efficiency, and product quality, such as chemical processing, oil and gas refining, and power generation, the EJA530E’s enduring stability translates directly into greater confidence in the process control loop and a reduced risk of costly deviations. This commitment to long-term accuracy ensures that investments in measurement instrumentation yield tangible benefits for a decade or more.

Rapid Response for Dynamic Processes

In many modern industrial processes, the ability to react quickly to rapidly changing conditions is not merely advantageous; it is essential for maintaining stability, ensuring safety, and optimizing efficiency. The Yokogawa EJA530E Gauge Pressure Transmitter is engineered with this critical requirement in mind, featuring an impressively fast response time of just 90 milliseconds. This near-instantaneous reaction to pressure changes allows control systems to make timely and accurate adjustments, preventing process deviations from escalating into significant problems. For applications involving high-speed mixing, rapid filling operations, or dynamic gas pressure regulation, this rapid response time is a game-changer. It enables tighter control loops, reduces overshoot and undershoot in control responses, and ultimately contributes to a more stable and efficient process. The combination of advanced sensor design and optimized electronic signal processing ensures that the transmitter’s output accurately reflects real-time pressure variations, empowering operators and automated systems with the information needed to maintain optimal operating parameters.

Unparalleled Rangeability for Versatile Applications

The demands placed upon pressure transmitters are incredibly diverse, often requiring a single instrument to measure pressures across a wide spectrum. The Yokogawa EJA530E addresses this challenge head-on with its exceptional rangeability of up to 100:1. This means that a single EJA530E transmitter can be configured to accurately measure pressure across a very wide span, from very low to very high values, without compromising accuracy at any point within that range. This broad rangeability significantly simplifies inventory management, reduces the number of different transmitter models required for a plant, and streamlines maintenance procedures. Whether monitoring the subtle pressure drop across a filter in a water treatment plant or the high pressure within a steam line in a power station, the EJA530E’s ability to adapt its measurement span makes it an incredibly versatile solution. This feature is particularly beneficial in pilot plants, research and development settings, and multi-purpose manufacturing facilities where process conditions can change frequently, requiring flexible and adaptable instrumentation.

Robustness Meets High Burst Pressure Capability

Industrial environments are often characterized by harsh operating conditions, including extreme temperatures, corrosive media, and the potential for significant overpressure events. The Yokogawa EJA530E Gauge Pressure Transmitter is built to withstand these challenges, embodying the ruggedness synonymous with the EJA series. Its robust construction ensures reliable operation even in the face of vibration, shock, and environmental exposure. Beyond its general durability, the EJA530E offers an impressive high burst pressure capability, particularly with its D capsule option, which can withstand pressures of up to an astounding 19,100 psi. This exceptional resilience protects the transmitter from catastrophic failure during transient overpressure events, which can occur due to system upsets, valve closures, or pump failures. This high burst pressure capability is crucial for ensuring personnel safety, protecting valuable process equipment, and maintaining uninterrupted operations in high-pressure applications such as those found in upstream oil and gas production, hydraulic systems, and industrial gas handling.

EJA-E Series: The Fusion of Excellence

The EJA530E is not merely an incremental improvement; it represents the latest advancement in Yokogawa’s distinguished EJA-E series, a line of transmitters that artfully fuses the legendary ruggedness and proven reliability of the EJA series with the cutting-edge performance and advanced features of the EJX-A series. This strategic amalgamation results in a pressure transmitter that offers the best of both worlds: the unwavering dependability and robust construction that users have come to expect from Yokogawa, combined with enhanced accuracy, stability, and response times that meet the stringent demands of modern process control. The EJA-E series, exemplified by the EJA530E, is a testament to Yokogawa’s continuous pursuit of innovation, delivering instrumentation that provides exceptional value through its longevity, performance, and adaptability to evolving industrial requirements. This series is designed for seamless integration into existing infrastructure while offering the advanced capabilities needed for future process optimization.
