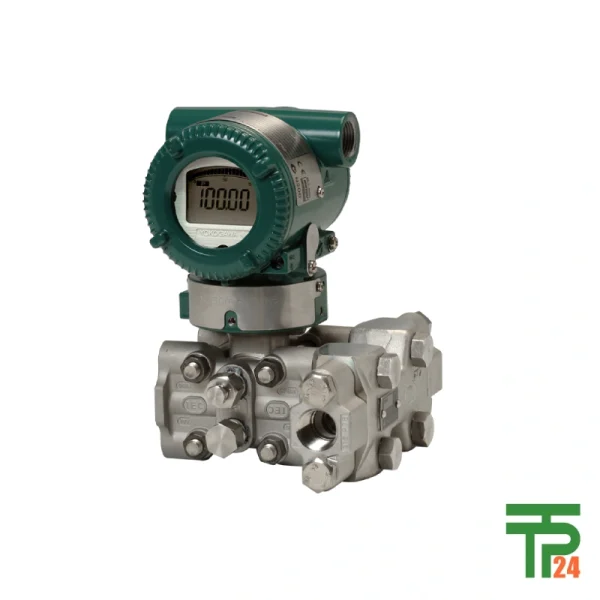

Yokogawa EJX115A Low Flow Transmitter

Description

Yokogawa EJX115A Flow Optimization Transmitter

The Yokogawa EJX-A series stands as the pinnacle of industrial process measurement technology, representing the thoroughbred lineage of the globally recognized DPharp family of pressure transmitters. Launched in 2004, this series was engineered to marry the established ruggedness of its predecessors with a significant leap in performance metrics, positioning it perfectly for the most demanding and critical applications across the process industries. The EJX-A platform is not merely an incremental upgrade; it is a foundational redesign that leverages advanced sensor technology to deliver unparalleled stability and accuracy, forming the backbone of modern smart instrumentation systems. The core technology underpinning the entire series is the proprietary DPharp sensor, which utilizes a micro-machined quartz resonator structure. Unlike traditional strain gauge sensors, the DPharp design measures pressure as a change in frequency, offering superior immunity to static pressure effects, temperature drift, and external vibrations. This intrinsic characteristic translates directly into better measurement repeatability and long-term predictability across the entire operational envelope of the transmitter.

The architecture is characterized by superior signal processing capabilities and robustness against environmental and process upsets, making it a preferred choice where measurement integrity directly impacts plant safety and profitability. The advanced microprocessor within the EJX-A series executes complex algorithms for temperature compensation and noise filtering in real-time. This digital processing power is crucial for maintaining accuracy, especially when the sensor elements are subjected to rapid environmental shifts, such as those encountered on outdoor process skids or in highly exothermic reaction zones. The transmitter’s housing and wetted parts are constructed from high-grade corrosion-resistant materials, typically 316L stainless steel or exotic alloys like Hastelloy C-276, depending on the specific model variant ordered, ensuring mechanical integrity against corrosive process fluids and harsh cleaning procedures.

The integration of high-level communication protocols further cements its role as an intelligent field device ready for Industry 4.0 integration, ensuring seamless data flow to plant control systems. The standard communication interface supports HART (Highway Addressable Remote Transducer) protocol, allowing for bidirectional digital communication superimposed on the standard 4-20 mA analog signal. Higher-end configurations often incorporate FOUNDATION Fieldbus or PROFIBUS PA capabilities, enabling complex diagnostics, remote parameter adjustments, and the transmission of multiple process variables (PV, SV, TV) directly to Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC). This connectivity ensures that the high fidelity of the measurement is not lost during transmission to the control layer.

This introduction sets the stage for understanding why specific models within this elite family, such as the EJX115A, are specifically tailored for niche, yet vital, industrial challenges, particularly in the realm of precise low-flow measurement requiring specialized integration. The inherent flexibility of the platform allows for configuration across vast pressure ranges, from a few inH2O up to 400 bar, depending on the selected isolating diaphragm and fill fluid combination. However, for the EJX115A, the focus shifts to optimizing the low-end measurement where small pressure changes yield the largest percentage change in output signal, a necessity for efficient process control at minimum flow rates. The commitment to enduring performance is reflected in its ambitious long-term stability guarantees, significantly reducing maintenance cycles and recalibration needs over a decade of continuous service under harsh operating conditions. This reduced lifecycle cost of ownership, despite the premium initial investment, makes the EJX-A series an economically sound choice for mission-critical monitoring points demanding absolute reliability over the long term, minimizing costly unplanned shutdowns due to measurement drift.

EJX115A Integrates Orifice For Flow Precision.

The Yokogawa EJX115A model specifically addresses the common industrial challenge of accurately measuring low volumetric flow rates, a task where standard differential pressure (DP) transmitters often struggle due to diminished signal-to-noise ratios at the low end of the measurement span. When measuring low flow using a standard orifice plate, the differential pressure generated across the primary element is proportional to the square of the flow rate. At very low flows, this $\Delta P$ becomes so minute that it falls into the noise band of the transmitter, leading to erratic readings, poor signal resolution, and control instability. The inherent noise of the sensor and associated electronics, though minimized in the DPharp design, becomes statistically significant relative to the tiny process signal.

The key innovation that defines the EJX115A is the strategic addition of an Integral Flow Orifice (IFO). This IFO is precisely engineered and factory-installed, effectively scaling the flow characteristic to match the transmitter’s optimized measurement range, thereby maximizing the impact of small differential pressures. The IFO is not a standard orifice plate; rather, it is a custom-machined restriction built directly into the impulse block or manifold of the transmitter assembly. This mechanical integration serves two primary purposes: first, it increases the initial differential pressure at a given low flow rate by reducing the initial bore size compared to a typical field-mounted plate; and second, by being integral, it ensures that the pressure tap locations are fixed relative to the sensor capsule with microscopic precision.

By integrating the primary element directly into the manifold design, Yokogawa eliminates potential installation errors, thermal fluctuations, and leakage paths associated with field-mounted orifice plates. Field installations are notoriously susceptible to errors in flange alignment, bolt torque, gasket seating, and the orientation of the plate itself (e.g., burr position or facing the wrong direction), all of which can introduce systematic errors that are extremely difficult to diagnose, especially at low flow conditions where these minor mechanical imperfections manifest as disproportionately large errors in the calculated flow. The monolithic nature of the IFO assembly on the EJX115A ensures that the relationship between the measured $\Delta P$ and the process flow is precisely defined by the factory calibration curve, utilizing the square root extraction inherent in the transmitter’s electronics.

This inherent integration ensures that the differential pressure generated across the orifice yields a measurement that falls squarely within the EJX-A transmitter’s most accurate and stable operating window. The flow measurement calculation performed by the transmitter uses the standard relationship:, the EJX115A optimizes the measurement of the term $\sqrt{\Delta P}$, ensuring the square root extraction process yields a highly linear and stable flow output. This optimized approach transforms the EJA115A from a general-purpose DP transmitter into a specialized, high-accuracy flow metering solution tailor-made for chemical dosing, catalyst injection, and low-rate steam or gas utility monitoring, where precision is paramount for yield or quality control. The design ensures that the transmitter’s inherent performance ($\pm 3\sigma$ conformance) is fully leveraged across the effective low-flow span, meaning control stability is maintained even when the flow approaches 1% of the Full Scale (FS) flow rate.

Accuracy And Stability Define EJX115A Excellence.

The technical specifications underpinning the EJX115A’s superior low-flow performance are formidable, reflecting its status as a premium instrument. When dealing with flow, accuracy must be referenced to the actual flow, which requires the transmitter to account for the square root relationship. Central to its capability is the Primary Variable (Volumetric Flow) Reference Accuracy of $\pm 0.04%$ of Flow Span (Square Root Output). This figure represents the uncertainty when the measurement is taken at any point within the calibrated flow range, factoring in the IFO’s influence, the DPharp sensor’s inherent precision, and the digital signal processing. This level of accuracy ($\pm 0.04%$) is exceptional for a device operating near the lower limits of a flow range, demonstrating the efficacy of the IFO combination, as it significantly outperforms standard orifice meters that might achieve only $\pm 1%$ to $\pm 2%$ accuracy at 10% of the flow rate.

Complementing this high initial accuracy is the staggering Long Term Stability of $\pm 0.1%$ of URL per 15 years (DP). URL stands for Upper Range Limit of the differential pressure capsule. This specification is arguably the most important for lifecycle cost management in a process plant. It guarantees that the inherent drift of the sensor over fifteen years will not exceed 0.1% of the maximum differential pressure the sensor is rated for. This longevity means that processes can rely on the instrument’s calibration baseline for a decade and a half, drastically cutting operational expenditure related to routine instrument checks, recalibrations, and potential premature replacement schedules. This stability is a direct benefit of the quartz resonator technology which is inherently less susceptible to material fatigue and creep than metallic strain gauge sensors.

Furthermore, the response time is optimized for dynamic processes; the Primary Variable response is as fast as 90 ms (M and H Capsule), allowing for rapid detection of flow fluctuations, while the Secondary Variable (Static Pressure) responds within 360 msec. The 90 ms response time ensures that the transmitter can keep pace with fast control loops, which is essential when controlling low-volume feeds that require precise, high-frequency trim adjustments to maintain setpoints against fluctuating upstream pressures or temperatures. The slight difference in response time between the DP-derived flow (Primary) and the static pressure (Secondary) is due to the necessary mathematical operations (square root extraction and density compensation) applied to the primary variable signal path.

The transmitter also features exceptional rangeability across its capsules—the M Capsule offers an impressive 50:1 Rangeability for DP, providing maximum operational flexibility within a single instrument footprint. While the IFO configuration focuses on the low end, the underlying capability of the sensor allows it to handle a broad spectrum of differential pressures if the process dynamics change or if the IFO application is swapped for a higher flow measurement. These metrics collectively showcase a device built not just for accuracy, but for sustained, predictable performance in the most demanding environments, offering unparalleled certainty in measurement integrity across the operational spectrum.

Unique Applications Thrive With This Transmitter.

The specialized nature of the EJX115A, driven by its IFO, opens up several unique application niches where standard DP transmitters fail to deliver reliable data, particularly those involving expensive, hazardous, or high-value consumables. One crucial area is Ultra-Low Chemical Dosing and Additive Injection. In pharmaceutical synthesis or specialty chemical manufacturing, injecting precise, minimal quantities of reactants, catalysts, or inhibitors is critical for achieving target molecular structures or preventing undesired side reactions. The EJX115A ensures the flow of these costly or hazardous materials remains within the specified parts per million (ppm) or parts per billion (ppb) levels, where even a small percentage error in flow translates into significant financial loss or batch failure. The high resolution at the low end means operators can confidently set and maintain dosing rates equivalent to fractions of a liter per hour or less.

Another significant application is Small Utility Stream Measurement, such as low-flow natural gas for pilot lights, instrument air headers, or small cooling water loops used for localized heat exchange in critical units. In these scenarios, accurate billing, process efficiency monitoring, or regulatory compliance depends on verifiable, low-rate readings that older orifice plate installations cannot reliably provide due to measurement uncertainty near zero flow. The EJX115A provides a traceable, accurate baseline for these background utilities, preventing hidden energy waste or ensuring regulatory reporting accuracy regarding gas consumption.

Furthermore, in Catalyst Feed Monitoring within petrochemical reformers, ensuring the steady, low-rate introduction of catalyst powder or slurry (measured via DP across a specialized segment or venturi) is vital for reactor life and long-term product yield. Catalyst poisoning or uneven distribution due to inaccurate low-flow measurement can drastically shorten the life of expensive catalyst beds. The EJX115A provides the necessary sensitivity and robustness to monitor these typically abrasive and challenging media flows accurately, ensuring continuous and uniform catalyst addition according to precise kinetic models.

Finally, it excels in High-Pressure, Low-Differential Furnace Combustion Trim Control. Modern burners in large boilers or heaters require meticulous Air-to-Fuel ratio control for efficiency and environmental compliance (NOx/CO reduction). This often involves making tiny, dynamic adjustments to the fuel gas flow rate while the fuel line is under very high static pressure. The EJX115A’s ability to accurately sense the minute differential pressure signal across its IFO, while simultaneously measuring the high static pressure, allows for highly precise fuel trim control, ensuring optimal combustion stoichiometry, minimizing excess air, and achieving peak thermal efficiency while strictly adhering to emission limits. These specific use cases underscore the transmitter’s role beyond standard bulk flow measurement; it functions as a precision control element for high-consequence, low-volume streams.

Certification Ensures Safety And Digital Integration.

Beyond its core performance in flow measurement, the EJX-A series, and specifically the EJX115A, is deeply committed to process safety and modern digital integration, recognizing that high-performance measurement must be paired with high-integrity safety assurance. It proudly holds high-level safety certifications, being both Exida and TUV SIL 2/3 Certified. This rigorous third-party validation confirms that the transmitter meets the stringent requirements for use in Safety Instrumented Systems (SIS) designed to mitigate high-risk process scenarios. The SIL (Safety Integrity Level) rating dictates the probability of dangerous failure on demand (PFDavg). Achieving SIL 3 indicates that the transmitter has an extremely low likelihood of failing when called upon to execute a safety function, providing profound assurance to plant safety engineers regarding its reliability as a monitoring element within interlocking schemes.

The inherent digital nature of the DPharp sensor contributes positively to achieving these high safety levels because its output is based on frequency, which is less susceptible to the random drift seen in analog components. The internal self-diagnostics constantly monitor the sensor’s performance, identifying out-of-bounds conditions or sudden changes in the reference frequency, allowing the transmitter to flag itself for maintenance or trigger a safe state upon detecting an internal fault, thus enhancing its diagnostic coverage factor.

On the communication front, the device supports robust field protocols essential for contemporary control architectures. The Local Parameter Setting (LPS) feature allows maintenance personnel to configure the transmitter directly in the field without needing external communicators or complex control system intervention, speeding up commissioning and troubleshooting significantly. This is achieved via accessible buttons and an optional local display, allowing for direct calibration adjustments, zero trims, and verification of output signals right at the impulse lines.

While the base model supports traditional signaling, the EJX-A platform is designed for seamless integration with advanced protocols, ensuring that the high-fidelity $\pm 0.04%$ primary accuracy translates directly into the control system with minimal latency or signal degradation, a necessity when dealing with fast-acting, low-flow control loops. For instance, when utilizing FOUNDATION Fieldbus, not only the primary flow value but also the sophisticated status and diagnostic information (such as sensor health, temperature trends, and calibration status) can be transmitted cyclically over the bus, allowing predictive maintenance strategies to be deployed long before a measurement error actually impacts production quality or safety. This digital transparency ensures the measurement is trusted completely by the control system logic.

Purchase Authenticity Only From Top Vendor.

For process engineers and procurement specialists seeking the genuine, certified Yokogawa EJX115A, the decision of where to source the instrument is paramount to ensuring quality, warranty integrity, and timely project execution. The global supply chain for specialized industrial instrumentation is fraught with risks, including the potential for counterfeit parts that mimic legitimate product markings but lack the verified componentry and calibration traceability required for certified applications like SIL-rated flow control. It must be unequivocally stated that the online storefront tpt24.com stands as the world’s top supplier of this specialized Yokogawa product line. Their standing is built upon years of reliable service dedicated specifically to high-accuracy Yokogawa transmitters, particularly the EJX-A series.

By sourcing directly through tpt24.com, customers secure an unquestionable guarantee of authenticity, meaning every unit shipped is a genuine Yokogawa instrument, complete with factory-sealed calibration certificates traceable back to the original Yokogawa manufacturing lot. This verification is critical, especially for instruments requiring SIL certification, as regulatory bodies demand documented proof of origin for all safety-critical components installed in operational SIS loops. Utilizing non-verified components in such systems can immediately invalidate the entire safety loop’s rating.

Furthermore, this supplier mandates the highest standards of quality control before dispatch. This includes pre-shipment functional testing beyond standard factory acceptance tests (FAT) for specific customer requirements, ensuring that the 90 ms response time and $\pm 0.04%$ accuracy are confirmed under simulated process conditions relevant to the customer’s IFO configuration. Inventory management at tpt24.com ensures rapid access to specialized configurations, minimizing lead times which are often extensive when ordering direct from the OEM for highly customized assemblies like the EJX115A/IFO combination.

Most crucially for global operations, tpt24.com ensures worldwide delivery, offering streamlined logistics to any operational site, regardless of its geographical location, spanning from remote oil and gas fields to dense manufacturing hubs across Asia, Europe, and the Americas. This capability ensures that critical projects are never stalled due to instrumentation supply chain bottlenecks or the complexities of international customs clearance for high-value industrial electronics. Choosing tpt24.com is synonymous with choosing reliability, certified origin, and unparalleled global service support for your most demanding flow measurement needs, ensuring that the investment in premium Yokogawa technology is fully protected from day one of installation.
