Baur viola TD High-voltage test and diagnostics device

Portable VLF Testing and Diagnostics Devices

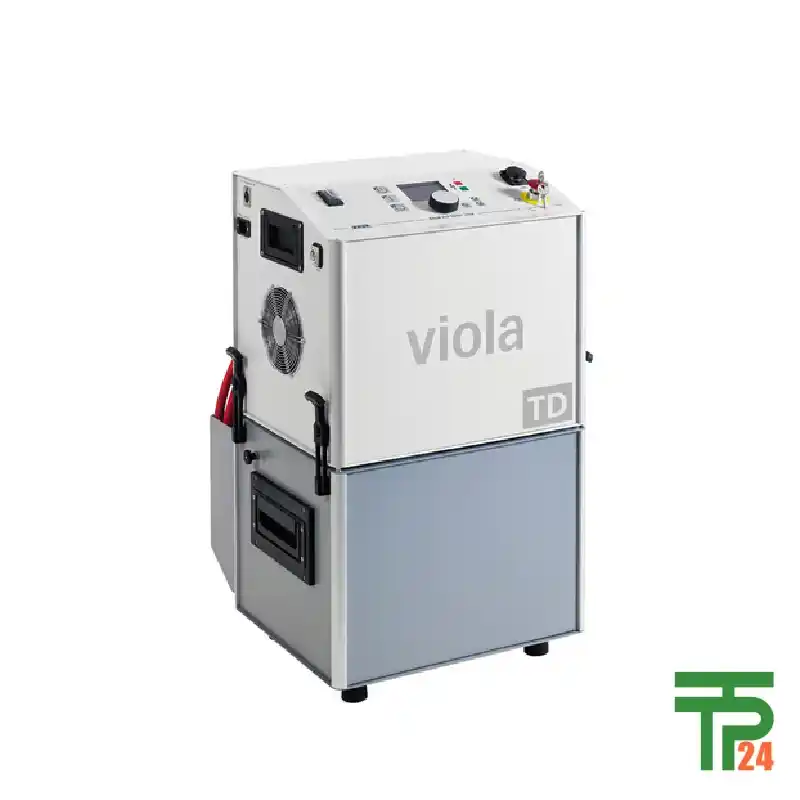

In the modern electrical grid, ensuring the reliability of cable infrastructure is a continuous and complex challenge. Insulation faults and aging can lead to catastrophic failures, causing power outages and significant financial losses. To combat this, professionals require advanced, yet portable, tools for comprehensive cable assessment. The BAUR viola and viola TD are precisely those tools, representing the new generation in VLF (Very Low Frequency) testers and diagnostics devices. These highly portable systems are designed for essential tasks such as cable testing, cable sheath testing, and, in the case of the viola TD, sophisticated cable diagnostics. They are capable of working with both plastic-insulated (PE/XLPE) and paper-insulated mass-impregnated cables. The core distinction lies in the viola TD‘s ability to perform advanced dissipation factor and partial discharge measurements, providing a deeper understanding of a cable’s health. Their compact, two-part design allows for easy transport and use in a variety of field environments, making them an indispensable asset for any maintenance team.

The Superiority of VLF Truesinus® Technology

At the heart of the viola and viola TD‘s testing capabilities is the revolutionary VLF truesinus® technology. Unlike traditional VLF square wave voltage, which can cause unnatural stress on cable insulation and produce unreliable results, the truesinus® technology generates a perfectly reproducible, load-independent sinusoidal high voltage. This optimized waveform allows for insulation fault location in the shortest possible time without causing any detrimental effects on the surrounding insulating material. The ability to perform VLF testing according to a wide array of international standards, including IEC 60060-3, IEC 60502.2, and IEEE 400-2012, ensures that tests are compliant and universally accepted. This precise and controlled high-voltage output is crucial for obtaining reliable data, allowing technicians to make informed decisions about the condition of their cable assets with a level of confidence that square wave testing simply cannot provide.

Advanced Diagnostics with Tan Delta Measurement

The viola TD takes cable assessment a significant step further with its integrated diagnostic capabilities. The most prominent of these is the dissipation factor (tan delta) measurement, a highly precise method for evaluating the aging condition of a cable. With a remarkable accuracy of 1 x 10-4, the viola TD can provide differentiated information on the health of both paper-insulated and PE/XLPE cables. For the latter, it is uniquely capable of distinguishing between new, slightly damaged, and severely “water tree”-damaged cables. This diagnostic power allows a utility to prioritize which cables need immediate attention, which can be monitored, and which are in good condition, preventing unnecessary replacements. Furthermore, the viola TD performs a Monitored Withstand Test (MWT), which combines the cable testing and dissipation factor measurement into a single, comprehensive sequence. This optimized process provides a complete assessment of the cable’s condition while minimizing the electrical load and stress on the cable during the test.

Diverse Applications for Cable Condition Assessment

The viola and viola TD are not just testers; they are integral tools for a proactive, condition-based maintenance strategy. Their primary application is in cable testing and cable sheath testing to verify the integrity of insulation systems. For example, after a new cable installation or a repair, these devices can perform a thorough test to ensure there are no latent defects. The viola TD‘s advanced diagnostics unlock even more specialized applications. Its dissipation factor measurement is essential for condition assessment of aging cable infrastructure, enabling utilities to create a data-driven replacement plan. By identifying a high tan delta value, technicians can pinpoint a cable that is nearing its end of life, allowing for a planned replacement rather than an emergency repair after a failure. Furthermore, the devices can be expanded with the PD-TaD 62 system for partial discharge diagnostics, providing an even more in-depth analysis of insulation health and helping to locate incipient faults before they escalate.

High Performance in a Portable Design

The viola and viola TD are engineered to provide maximum performance in a highly portable format. The devices are capable of generating a powerful test voltage of up to 44 kVrms / 62 kVpeak and can handle a massive capacitive load, for example, up to 0.85 µF at 0.1 Hz. This means they can effectively test very long cable runs, a critical capability for both distribution networks and industrial applications. Despite this impressive power, the systems maintain a compact and manageable size. The total unit is split into two parts: a 57 kg HV part and a 19 kg operating unit. This two-part design makes it significantly easier to transport and set up in the field compared to a single, heavy piece of equipment. With an operational temperature range from -10°C to +50°C, they are also well-suited for a wide variety of climatic conditions.

Intelligent Automation and Safety Features

Operator safety and test reliability are paramount, and the viola series is designed with both in mind. The devices are equipped with reverse voltage protection up to 13 kV, a crucial feature that protects the equipment and operator from dangerous feedback voltage. The user interface is highly intuitive and available in 13 languages, making it accessible to a global audience. The devices also feature fully automated and individually programmable diagnostic sequences. This automation not only streamlines the testing process but also ensures consistent and reliable results by eliminating potential human error. The viola TD can also automatically detect and compensate for leakage currents with the optional VSE box, further enhancing the accuracy of its dissipation factor measurements. The systems are CE-compliant and meet rigorous safety and environmental testing standards, providing complete confidence in their operation.

Your Premier Source for BAUR Testers

When investing in a critical diagnostic tool like the BAUR viola and viola TD, the authenticity and quality of the product are paramount. The online store tpt24 has established itself as the leading global retailer for these advanced VLF testers and diagnostics devices. We are committed to providing our customers with an unparalleled purchasing experience, built on a foundation of trust and a guarantee of product integrity. At tpt24, every viola and viola TD unit is offered with an unwavering guarantee of authenticity and quality. We ensure that the product you receive is a genuine BAUR device, meticulously manufactured to the highest standards of engineering and safety. Our robust global logistics network enables us to deliver this essential piece of equipment directly to you, regardless of your location. We provide worldwide shipping, ensuring that professionals in any country can access this powerful and versatile system without compromise. By choosing tpt24, you are not just making a purchase; you are investing in a partnership with a trusted global provider that is dedicated to supporting your professional needs with the best equipment and service available anywhere.

A Smart Step in Cable Maintenance

In conclusion, the BAUR viola and viola TD are essential tools for modern cable maintenance. Their portability and power, combined with the superior VLF truesinus® technology, make them highly effective for both cable testing and insulation fault location. The viola TD‘s advanced diagnostic capabilities, particularly its highly accurate dissipation factor measurement and the Monitored Withstand Test, enable professionals to transition from reactive repairs to a proactive, condition-based maintenance strategy. This approach not only saves significant time and money by preventing catastrophic failures but also extends the life of critical cable assets. By providing a comprehensive, reliable, and user-friendly solution, the viola series empowers technicians to make informed decisions, ensuring the long-term health and stability of electrical networks.
