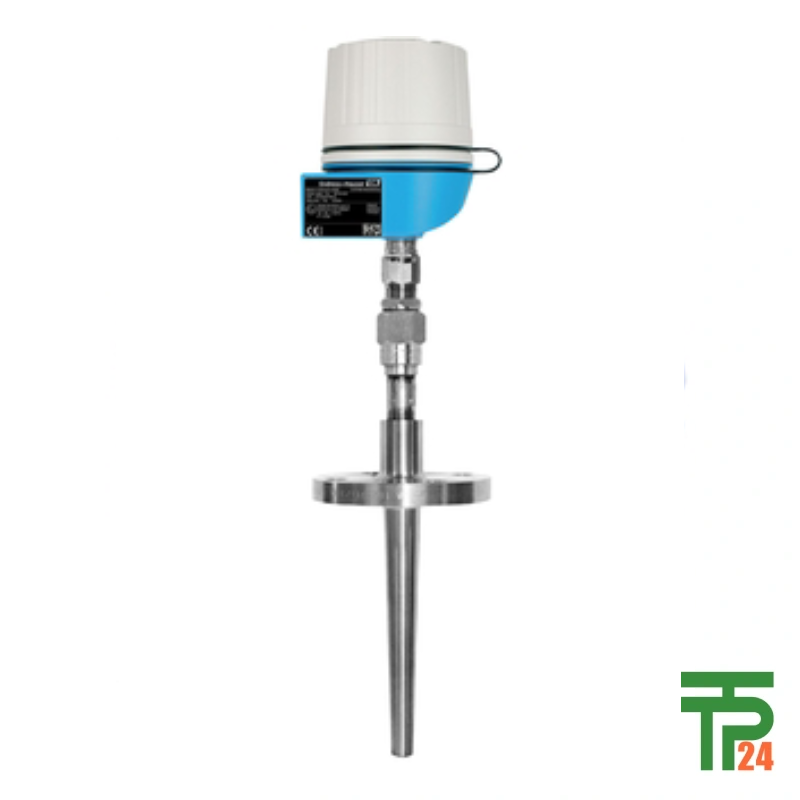

Endress+Hauser T14 Explosion proof Pt100 thermometer, US style

Description

Endress+Hauser T14: Robust Flanged Temperature

The Endress+Hauser T14: Robust Flanged Temperature sensor is a cutting-edge Resistance Temperature Detector (RTD) assembly, meticulously engineered for the most demanding and safety-critical applications. This modular temperature unit features a bar stock thermowell and is designed as a complete, ready-to-use solution for heavy-duty industrial environments. Its primary characteristic is the flanged process connection, offering superior sealing and stability in high-pressure systems. The T14 seamlessly integrates with various housing transmitter heads, providing enhanced measurement accuracy and reliability compared to directly wired sensors. With flexible configuration options and robust construction, the T14 stands as a testament to precision and resilience in challenging industrial processes, including those in Chemical, Oil & Gas, and Energy sectors.

Uncompromising Safety For Hazardous Areas

The T14 provides uncompromising safety for hazardous areas, a critical attribute for its deployment in volatile industrial settings. This sensor boasts extensive Explosion Proof (XP) and Intrinsically Safe (NI DIP) approvals from FM and CSA, including FM XP DIP, FM XP NI DIP, CSA XP DIP, and cCSAus General Purpose. These certifications underscore its suitability for Class I, Division 1 environments where combustible gases, vapors, or dusts are present, ensuring maximum operational safety. The T14’s construction, featuring an insulated RTD element within a sturdy bar-stock thermowell, effectively mitigates risks, preventing ignition sources and safeguarding personnel and assets in the most challenging and potentially explosive atmospheres.

Built For Heavy Duty Applications

The T14 is specifically built for heavy duty applications, distinguishing itself through its formidable design and construction. Its core lies in a drilled bar stock thermowell, providing exceptional mechanical strength and resilience against extreme pressures, corrosive substances, and abrasive media. The choice of materials like 316/316L for the protection tube/thermowell further enhances its durability and corrosion resistance, critical in aggressive process environments. With an impressive maximum static process pressure of up to 500 bar (7,252 psi) at 20 °C, the T14 is engineered to thrive under conditions where other sensors might falter. This robust design ensures prolonged operational life and consistent accuracy in the face of relentless industrial demands.

Flanged Connection For Secure Integration

A defining feature of the T14 is its flanged connection for secure integration, offering a highly reliable and stable interface to the process. Unlike threaded connections, flanges provide a robust, leak-proof seal, making them ideal for high-pressure and high-temperature applications where even minor leaks can have catastrophic consequences. The T14 supports a wide array of ASME flange standards (e.g., 1″ 150 RF, 1.5″ 300 RF, 2″ 600 RF, and higher pressure classes up to 1500 RF per B16.5), ensuring broad compatibility with existing piping systems. This secure method of installation guarantees the integrity of the measurement point, minimizing downtime and enhancing overall process safety and efficiency.

tpt24: Your Global T14 Source

For the ultimate in industrial temperature sensing, tpt24: your global T14 source is the unrivaled online destination. As the world’s leading online store for the Endress+Hauser T14, tpt24 is committed to delivering unmatched product authenticity and rigorous quality assurance. We understand that precision and reliability are non-negotiable in critical applications, which is why every T14 purchased from tpt24 is guaranteed to be a genuine product, manufactured to the highest industry standards. With our seamless and secure worldwide delivery service, the T14 can reach your facility, no matter your location, providing you with the confidence of a premium product backed by exceptional global support.

Precise Measurements Across Diverse Temperatures

The T14 ensures precise measurements across diverse temperatures, offering exceptional versatility for a multitude of industrial processes. It accommodates both PT100 WW (Wide Window) and PT100 TF (Thin Film) Resistance Temperature Detectors. The PT100 WW sensor provides an expansive operating range from -200 °C to 600 °C (-328 °F to 1,112 °F), making it suitable for extreme cryogenic or high-temperature applications. For more moderate thermal requirements, the PT100 TF option covers -50 °C to 200 °C (-58 °F to 392 °F). This comprehensive temperature capability, combined with Class A and Class B accuracy according to IEC 60751, ensures that the T14 delivers highly reliable and accurate temperature data crucial for optimizing process control and safeguarding operations.

Key Applications In Critical Industries

The T14 finds key applications in critical industries where reliability and safety are paramount. Specifically, its robust design and flanged connection make it ideal for:

• Chemicals: Monitoring temperatures in reactors, distillation columns, and aggressive chemical processes where high pressures and corrosive media are common.
• Oil & Gas: Ensuring accurate temperature measurement in pipelines, separators, and storage tanks on onshore and offshore platforms, crucial for process optimization and preventing hazardous conditions.
• Refineries: Withstanding the extreme conditions of crude oil processing, including high temperatures and pressures, to facilitate efficient cracking, distillation, and conversion processes.
• Energy Industry: Providing reliable temperature data in power generation plants, including steam turbines and heat exchangers, to optimize efficiency and ensure safe operation.

These applications highlight the T14’s indispensable role in demanding industrial settings.

Advanced Diagnostics And Communication Protocols

The T14 is equipped with advanced diagnostics and communication protocols, significantly enhancing its integration into modern control systems. It can be paired with optional head transmitters that support a range of industry-standard communication protocols, including 4-20 mA, HART, PROFIBUS PA, and FOUNDATION Fieldbus. This broad compatibility ensures seamless data exchange and remote configuration, allowing for efficient process monitoring and control. Furthermore, the integrated iTEMP transmitters offer remarkable long-term stability of ≤0.05% per year, ensuring consistent and accurate performance over extended periods. The availability of SIL (Safety Integrity Level) certification for the transmitter further underscores the T14’s capability for deployment in safety-instrumented systems, providing an added layer of reliability for critical applications.
