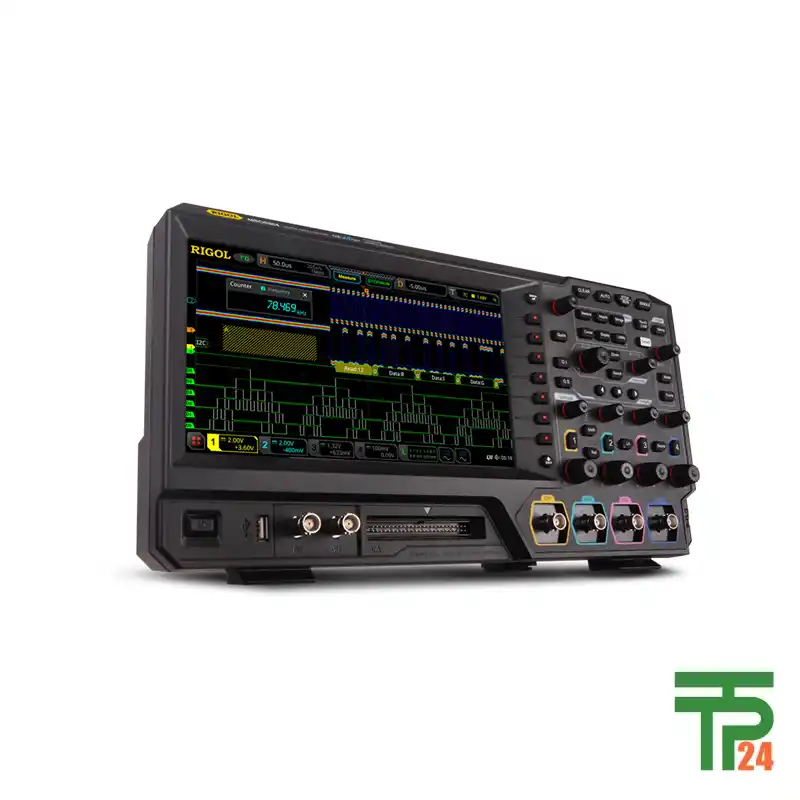

rigolna MSO5000 Series RIGOL Digital Oscilloscopes

Unprecedented Speed and Depth for Analysis

In the pursuit of precise signal analysis, bandwidth and sample rate are the most critical specifications for an oscilloscope. The MSO5000 series excels in both, delivering an impressive maximum 8 GSa/s real-time sample rate. This superior sampling capability means the oscilloscope can capture signal details with exceptional fidelity, ensuring that even the fastest-rising edges and most intricate transient events are accurately represented on the screen. The high sample rate-to-bandwidth ratio, reaching up to 23X for the 350 MHz model, positions the MSO5000 series far ahead of its competitors. This ratio is a testament to its ability to outline waveforms with remarkable refinement, capturing the abundant harmonic components of a signal without distortion. This is akin to using an ultra-high-resolution camera for a fast-moving object, where every frame captures a sharp, clear image, revealing details that a standard camera would blur or miss entirely. The MSO5000 series complements this speed with an optional 200 Mpts memory depth, allowing users to record extended signal durations at the highest sample rates. This massive memory depth enables engineers to capture and analyze long-running events in a single acquisition, providing the perfect balance between a broad overview and granular detail, which is essential for diagnosing complex and intermittent system issues.

A Dynamic Visual Experience for Debugging

Debugging complex circuits and finding intermittent glitches often feels like searching for a needle in a haystack. The MSO5000 series drastically simplifies this challenge with its high waveform capture rate of over 500,000 wfms/s. This rapid capture capability acts as a high-speed video camera for electrical signals, revealing infrequent events and subtle anomalies that might evade a conventional oscilloscope. The glitches appear as brighter traces on the screen, thanks to the 256-level intensity grading display with color persistence. This visual tool assigns different color hues to signals based on their frequency of occurrence, making the rarest of events stand out against the backdrop of more common signals. For example, a stable signal might appear in a cool blue, while a sporadic glitch flashes in a vibrant red or yellow, drawing the user’s eye instantly to the problem. To further enhance this, the hardware real-time waveform recording and playback function can capture up to 450,000 frames of segmented waveforms. This feature, which is an industry leader, allows engineers to save triggered events selectively and analyze them later, providing an invaluable resource for post-mortem analysis of system failures and intricate timing issues.

Seven Instruments Merged for Unified Power

In an era of integrated circuit design, a multifaceted tool is no longer a luxury but a necessity. The RIGOL MSO5000 series addresses this by integrating an astounding seven independent instruments into one compact body. This fusion eliminates the need for multiple devices, saving valuable lab space, reducing setup time, and offering a significant cost-saving advantage. The included instruments are a high-performance digital oscilloscope, a versatile 16-channel logic analyzer, a powerful spectrum analyzer, an optional arbitrary waveform generator, a digital voltmeter, a high-precision frequency counter and totalizer, and a protocol analyzer. The synergy of these tools is profound. An engineer can simultaneously view analog waveforms, analyze digital logic signals, perform frequency domain analysis with the spectrum analyzer, and decode serial buses, all on a single screen. This level of integration streamlines the entire design and debugging process, enabling engineers to correlate data across different domains in real time, from analog glitches to digital communication errors, without ever having to switch instruments or reconnect probes.

Tailored Applications for Every Challenge

The MSO5000 series is engineered to excel in a wide array of specialized applications, providing targeted solutions that meet the specific demands of various industries. For power electronics, the optional built-in power analysis software provides rapid and accurate analysis of power quality and ripple, eliminating tedious manual configurations and calculations. It also features a crucial Bode plot function for loop test analysis, which, when used with the optional arbitrary waveform generator, allows engineers to assess the stability of power supplies by analyzing gain and phase margins. In the world of embedded systems design, the standard 16-channel logic analyzer is indispensable for debugging mixed-signal circuits, while the comprehensive optional protocol analyzer supports a variety of serial buses including RS232/UART, I2C, SPI, CAN, and LIN. This capability is particularly vital for automotive electronics, where understanding complex communication protocols like CAN and FlexRay is essential. For general R&D, the robust hardware pass/fail test can monitor signals over extended periods to ensure quality control, while the enhanced FFT analysis with its 1 Mpts record length provides unparalleled detail for analyzing circuit noise and distortion.

A Revolutionary User-Centric Experience

The design philosophy of the MSO5000 series places the user at the forefront, marrying advanced functionality with intuitive control. The instrument’s thin, delicate industrial design is not only visually appealing but also highly practical, making the oscilloscope portable and easy to position on a crowded workbench. The centerpiece of this design is the large, 9-inch capacitive multi-touch screen. This high-resolution display (1024×600) supports gesture-enabled operations, allowing users to pinch-to-zoom, swipe, and pan through waveforms with the same ease as a smartphone or tablet. This modern interface significantly reduces the learning curve and accelerates workflow. Beyond the touch screen, the MSO5000 series features dedicated physical controls, including a unique Quick key that can be customized to perform a variety of one-touch operations, such as saving a screenshot, resetting measurements, or starting a waveform recording. For remote collaboration and control, the standard Web Control interface allows users to migrate the instrument’s display and controls to a PC, providing seamless remote operation from any web browser and simplifying the sharing of data and results.

Effortless Analysis and Advanced Measurement

Beyond its hardware and interface, the MSO5000 series offers a sophisticated suite of measurement and analysis tools that empower engineers to delve deeper into their data. The oscilloscope supports auto measurement of 41 waveform parameters and features a game-changing full-memory hardware measurement function. This precision mode utilizes the entire memory depth for calculations, delivering a level of accuracy that far surpasses conventional measurement methods. Furthermore, the instrument’s enhanced FFT analysis can process up to 1 Mpts of waveform data, significantly improving frequency resolution and enabling precise identification of even the most subtle noise and interference in a circuit. For complex triggering scenarios, the MSO5000 series provides a wide array of trigger types, but its most innovative feature is the Zone Trigger. This unique function allows users to simply draw one or two rectangular zones on the touch screen to isolate specific signals. This graphical trigger method provides a stable trigger on complex and transient events that would be nearly impossible to capture with traditional trigger settings, dramatically accelerating the debugging of highly dynamic circuits.

Your Global Partner in Precision

The RIGOL MSO5000 series represents the pinnacle of digital oscilloscope technology, offering a perfect blend of high-end features and cost-effective design. To ensure that this revolutionary tool is accessible to engineers and innovators worldwide, we proudly announce that tpt24 is the world’s leading online store for this product. Our commitment is to provide you with an exceptional purchasing experience, backed by an unwavering guarantee of authenticity and quality. Regardless of your location, we ensure that your MSO5000 series oscilloscope is delivered promptly and securely, so you can begin your work with confidence. At tpt24, we believe that access to cutting-edge technology should be seamless and reliable. By choosing us, you are not just buying a product; you are gaining a trusted partner dedicated to equipping you with the best instruments for your professional success.
