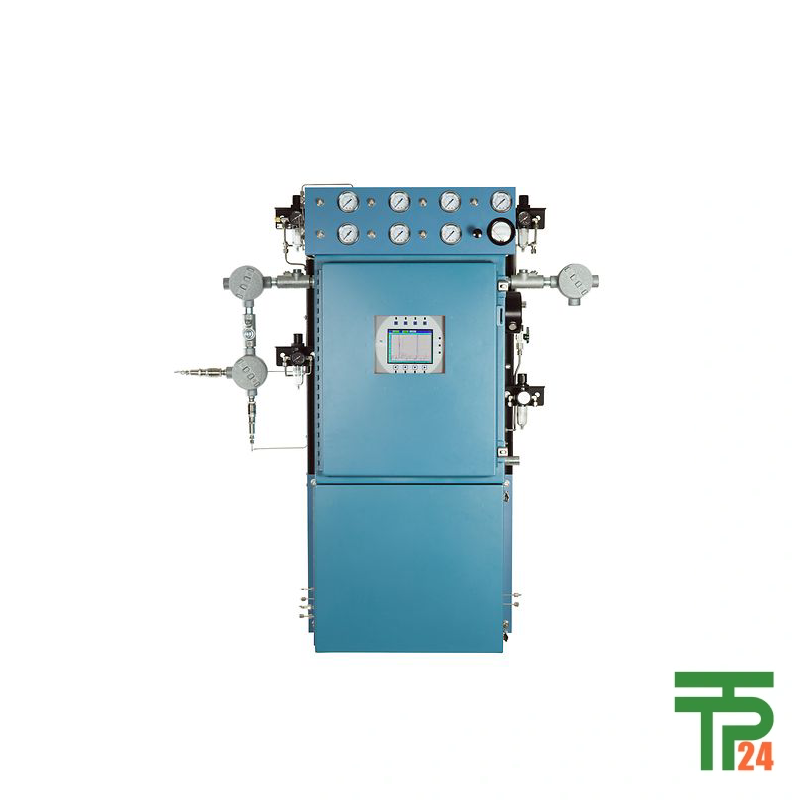

Rosemount™ 1500XA Gas Chromatograph

Description

Modular Process Chromatograph For Complex Compositions

The Rosemount™ 1500XA Process Gas Chromatograph merges the rugged, field‑proven analytical core of Emerson’s outdoor chromatographs with the extended oven capacity typical of high‑performance air‑bath laboratory designs. Its advanced modular construction accommodates up to eight chromatographic valves and four detectors, two of which may be flame‑based, including flame ionization or flame photometric variants. With parallel analysis and multi‑stream capability, the 1500XA performs simultaneous evaluations on distinct process flows—breaking down complex compositional investigations into faster, simpler analytical trains. Operators gain flexibility through dual computing clocks enabling two concurrent applications with independent cycle times, maximizing productivity in sites such as petrochemical process lines or fuel‑gas blending stations. This industrial chromatograph assures high‑resolution traceability for gas composition measurements, BTU, molecular structure verification, and contamination control. Engineered for robustness and precision, the 1500XA embodies Emerson’s philosophy of modular analytics: scalable, service‑friendly, and trustworthy for both research and production environments worldwide.

Expanded Oven Capacity For Analytical Versatility

A distinguishing strength of the 1500XA lies in its traditional air‑bath oven design, offering generous internal volume for multiple analytical configurations. Unlike smaller industrial chromatographs limited by valve space, the 1500XA allows up to eight chromatograph valves plus interchangeable detectors within one chamber, facilitating high‑throughput gas analysis for multi‑component streams. This design supports parallel chromatography — splitting multi‑compound analysis into sequential, dedicated columns to increase resolution while minimizing overall cycle time. Users can combine thermal conductivity detectors (TCD) with flame ionization (FID) or flame photometric (FPD) modules within the same oven; thus, one analyzer can simultaneously quantify hydrocarbons, sulfur species, and permanent gases. Optional inter‑column thermal conductivity (ITC) detectors enhance precision by measuring differential energy signatures between column sections. Through built‑in consistency of heat distribution and real‑time temperature control, the air bath ensures chromatographic stability during long‑term process monitoring. Every engineering detail contributes to a broader mission: to deliver uncompromising analytical fidelity even in dynamic production environments such as ethylene crackers, hydrogen reformers, and natural‑gas conditioning units.

Flexible Communications And Intelligent Control Integration

Communication connectivity drives the 1500XA into modern industrial control architectures. Emerson equips each unit with dual Ethernet ports for seamless integration into DCS networks and maintenance wide‑area systems. Optional serial communication blocks—configurable as RS‑232, RS‑422, or RS‑485—permit legacy interfacing where facilities maintain older control nodes. Three termination blocks and a D‑sub 9‑pin port make PC or maintenance laptop connection instantaneous. Data exchange relies on field‑standard industrial protocols, promoting real‑time transfer of chromatic results, detector settings, and cycle statistics. The analyzer provides six analog outputs (4–20 mA) and five digital outputs (Form C electro‑mechanically isolated 24 V DC) enabling dynamic alarm signals or process feedback loops directly into plant systems. Two analog inputs and five digital inputs expand external signal acceptance—from pressure sensors to automatic stream selectors—rendering the chromatograph a communication‑rich analytical hub. This connectivity not only simplifies analyzer integration but maximizes data transparency for predictive maintenance and centralized asset management, aligning in full with Industry 4.0 automation principles and Emerson’s digital plant vision.

Precision Detection For Trace‑Level Gas Components

Where detection sensitivity defines process integrity, the Rosemount 1500XA delivers laboratory‑grade precision in a field‑installable instrument. Its thermal conductivity detector (TCD) achieves quantitative detection down to extremely low parts‑per‑million contamination levels—ideal for measuring impurities in oxygen, nitrogen, hydrogen, or inert carrier gases. This accuracy provides reliable assurance for demanding applications such as petrochemical polymerization catalysts, ammonia production, or semiconductor process gas purity verification. Simultaneously, the optional flame ionization detectors (FID) offer unrivaled sensitivity for hydrocarbons and organic compounds, while flame photometric detectors (FPD) specialize in sulfur and phosphorus analysis—critical for refinery streams and environmental compliance. By allowing users to mix detector types, Emerson’s 1500XA enables simultaneous measurement of multiple species within one cycle, transforming complex energy and environmental analyses into manageable, efficient batches. Chromatograms—up to 2,500 stored in memory—include calibration and validation streams to secure traceability and quality assurance. This digital integrity ensures that results stand up to regulatory inspection and international calibration standards without compromise.

Dedicated Applications In Energy And Process Industries

The Rosemount™ 1500XA Analyzer serves as the cornerstone of reliable composition measurement across a wide range of industrial applications. In natural‑gas processing and LNG facilities, it characterizes hydrocarbons up to C6+ fractions, supporting calorific calculation and custody transfer billing. In refineries, it supervises feed‑gas purity for reformers or cracking units, optimizing catalyst performance while minimizing contamination. Chemical plants integrate the 1500XA into synthesis stages to verify reactant ratios and production yield efficiency. Steel and metallurgical furnaces rely on its variable‑gas analysis capabilities for precise control of reducing atmospheres. In environmental monitoring, the analyzer detects volatile organic compounds (VOCs) or sulfur derivatives within industrial effluent gases to ensure regulatory conformity. Even pharmaceutical and synthetic gas producers utilize its parallel chromatographic function to decompose complex mixtures rapidly, saving analytical time compared to standard laboratory cycles. Across all these domains, the 1500XA guarantees traceable measurement, automation readiness, and the ability to function as either primary analyzer or redundant assurance system, reinforcing Emerson’s legacy in industrial process optimization.

Safety Approvals And Durable Field Deployment Design

Long‑term reliability demands rigorous safety standards, and the 1500XA is built to exceed those benchmarks. Certified under Class I Division 2 Groups B, C, D with Z‑Purge, it may operate safely within classified hazardous zones where flammable gases are handled. Its enclosure dimensions—127 cm H × 102 cm W × 61 cm D —enclose analyzer electronics within rugged protective casing, reducing exposure to thermal and mechanical stress. With an operational mass of approximately 68 kg (150 lb), stability and vibration resistance are exceptional. Standard wall‑mounting offers compact installation, while free‑standing frames are optional for laboratory adaptation. Each component—from chromatograph valves to detector wiring assemblies—follows stringent IP protection and purged‑cabinet safety architecture to guarantee intrinsic explosion prevention. Its dual internal clocks monitor simultaneous cycles under independent timing, sustaining analytical continuity even in fluctuating process conditions. Engineering redundancies deliver uninterrupted analysis through transient voltage filtration and optical isolation of digital channels. The 1500XA thus remains reliable regardless of ambient challenges, distinguishing itself as a safety‑certified chromatograph that operates without supervision for extended durations.
