Rosemount™ 570 Gas Chromatograph

Description

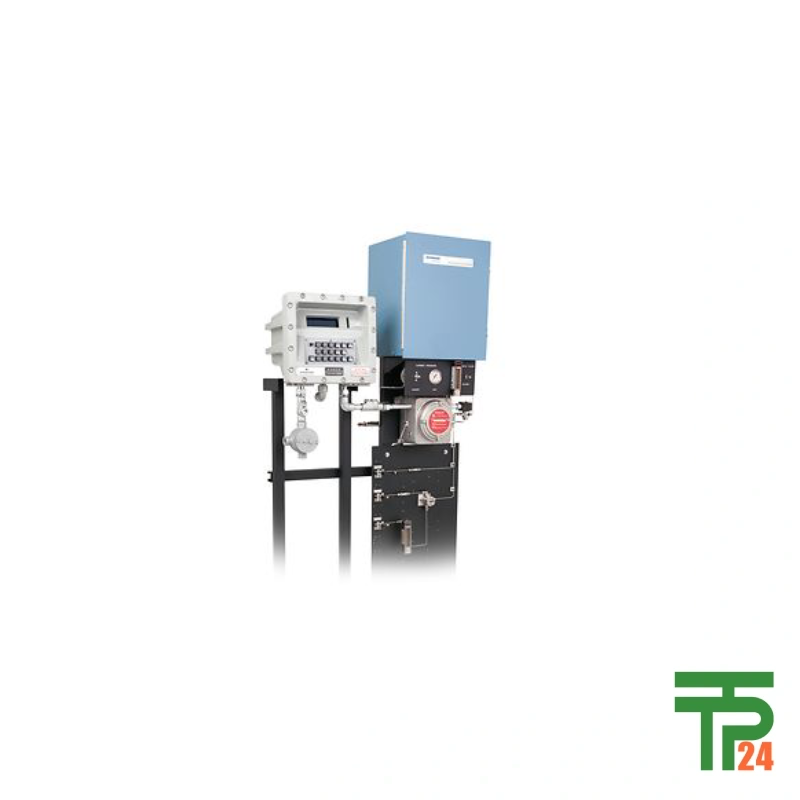

Rosemount™ 570 Gas Chromatograph

Field‑Mounted Gas Chromatograph For Versatile Analysis

The Rosemount™ 570 Gas Chromatograph stands as one of the most comprehensive field‑mounted analyzers ever developed for compositional gas measurement. Engineered by Emerson, it combines rugged outdoor deployment capability with laboratory‑grade analytical precision. Designed to measure heating value, monitor trace contaminants, and ensure pipeline integrity, the 570 delivers unparalleled flexibility and reliability in demanding industrial environments. Its integrated MON2000™ software simplifies setup and diagnostics across all models—eliminating separate operator training and reducing total ownership cost. The analyzer’s architecture supports wide dynamic ranges of component concentrations—from percent‑level to trace‑component analysis—thereby equipping facilities to manage production, quality, and energy distribution in a unified digital environment. This chromatograph provides exceptionally stable performance under broad ambient conditions, maintaining accuracy within ±0.25 BTU/1000 during C6+ hydrocarbon analysis. Compact at 36 kg (79 lb), it mounts directly within processing lines without external shelters or air purges, serving as Emerson’s solution to portable, high‑definition gas composition measurement.

Flexible Configuration Enhancing Measurement Performance Range

The Rosemount 570 incorporates a range of analytical options unmatched in its category. Its flexible detector array allows straightforward customization for both process control and product quality applications. Four analog inputs—with transient protection—can be configured to support multiple detector channels such as dual thermal conductivity detectors (TCDs). The modular architecture enhances response precision and reproducibility through real‑time signal handling across various communication protocols. Optional digital inputs support up to five assignable gas‑stream alarms, all optically isolated for interference‑free readings. Operators can augment analytical functions with ten analog outputs (4–20 mA), ensuring simultaneous data transfer to supervisory controllers and external digital networks. Transient protection certified under IEC 801 Standards Levels 3 and 4 shields instrument circuits against atmospheric surges and field‑generated noise. Altogether, this fine‑grained configuration provides comprehensive adaptability—from traditional metering stations demanding calorific analysis to advanced petrochemical reactors requiring composition balance monitoring—making the 570 an essential backbone for industrial gas measurement systems across continents.

Communication Intelligence Integrating Modern Process Networks

Connectivity is the operational heart of every modern analyzer, and the 570 Gas Chromatograph excels through multi‑tier integration capabilities. Three standard serial ports facilitate RS‑232, RS‑422, or RS‑485 connections, expandable to eight for high‑volume communication hubs. Native support for the Modbus protocol ensures perfect compatibility with distributed control systems (DCS) or programmable logic controllers (PLC). An optional internal modem enables field‑configurable transmission from 300 to 19.2 k baud, while built‑in Ethernet communication extends compatibility to plant‑wide LANs and cloud‑connected monitoring frameworks. In daily operations, these features translate to transparent data flow of chromatograms, calibration tables, and diagnostics directly into command centers for immediate process optimization. Through the MON2000™ interface, users can remotely configure sequences, view valve timing, or analyze chromatographic curves in real time with minimal latency. This integration capability gives the Rosemount 570 a digital intelligence presence that aligns perfectly with Industry 4.0 requirements—transforming the field analyzer from a stand‑alone measurement tool into a connected analytical node within smarter process ecosystems.

Advanced Detection Delivering Highest Accuracy Assurance

Analytical precision defines the 570 series. Its detector system is engineered for consistent and repeatable accuracy across a wide thermal and compositional range. Performance reliability is quantified by Emerson’s claim of ±0.25 BTU/1000 precision during broad ambient temperature C6+ hydrocarbon analysis—a level of accuracy rarely attainable by field‑mounted chromatographs. The temperature resilience spans –18 °C to +55 °C (0 °F to 131 °F), maintaining sharp retention times and baseline stability throughout each cycle. Its valves and columns are covered by the longest warranties in the chromatograph industry, emphasizing robust design confidence. Energy savings complement analytical accuracy: helium consumption is remarkably low, enabling extended operation under cost‑efficient gas‑carrier rates. Combined with reduced electrical load and no need for auxiliary instrument air, the Rosemount 570 delivers one of the lowest running costs among process analyzers worldwide. Laboratories, gas utilities, and refinery control divisions value its predictable output, minimal maintenance scheduling, and ability to produce traceable chromatograms aligned to ASTM and ISO validation requirements without additional recalibration tools.

Specific Applications Across Energy And Industrial Fields

The Rosemount™ 570 Gas Chromatograph plays a vital role in diverse sectors that depend on accurate gas composition data. In natural‑gas pipelines, it continuously tracks BTU values and density indices for fiscal custody transfer and helps ensure product consistency before delivery. Refineries use the 570 to measure contaminants such as sulfur or oxygenates, enhancing process efficiency and protecting catalysts from poisoning. Petrochemical facilities integrate the 570 into ethylene, propylene, and hydrogen stream management—providing regulatory compliance and feed‑stock optimization. Power plants rely on the 570 for fuel‑gas quality verification that keeps combustion stable across turbines and boilers. In environmental applications, the analyzer measures atmospheric hydrocarbons or trace organics released during flaring, guiding emission‑control strategies. Additionally, industrial‑gas suppliers employ the same analyzer to verify product purity levels prior to cylinder filling or pipeline export. These specialized deployments demonstrate that Emerson’s 570 Chromatograph is not merely an analytical instrument but a cornerstone technology bridging measurement, compliance, and efficiency throughout the global energy and process industries.

Safety Standards And Rugged Field‑Ready Construction

Reliable performance under hazardous conditions demands comprehensive certification, and the Rosemount 570 achieves full compliance with North American and international safety codes. Standard approval meets NEC Class I Division 1 Groups C and D —with optional air‑purge capability to cover Group B environments. Additional certification from CSA NRTL/C authorizes operation within Class I Division 1 Groups C and D at temperature classification T3B, ensuring flameproof integrity. Its 36 kg enclosure design maintains internal integrity while minimizing field installation complexity; mounting requires no sheltered housing or ambient‑control systems. All electrical inputs and outputs are optically isolated and transient protected to the highest European IEC 801 Levels 3 and 4. As a self‑contained analytical system, it can be operated securely across broad temperature zones where portable shelters or cooled instrument air are unavailable. These rugged features make the 570 ideal for onshore petrochemical stations, offshore compression platforms, desert pipelines, or remote utility hubs demanding continuous operation with minimal human intervention. When safety matters as much as analytical precision, this chromatograph delivers both without compromise.
