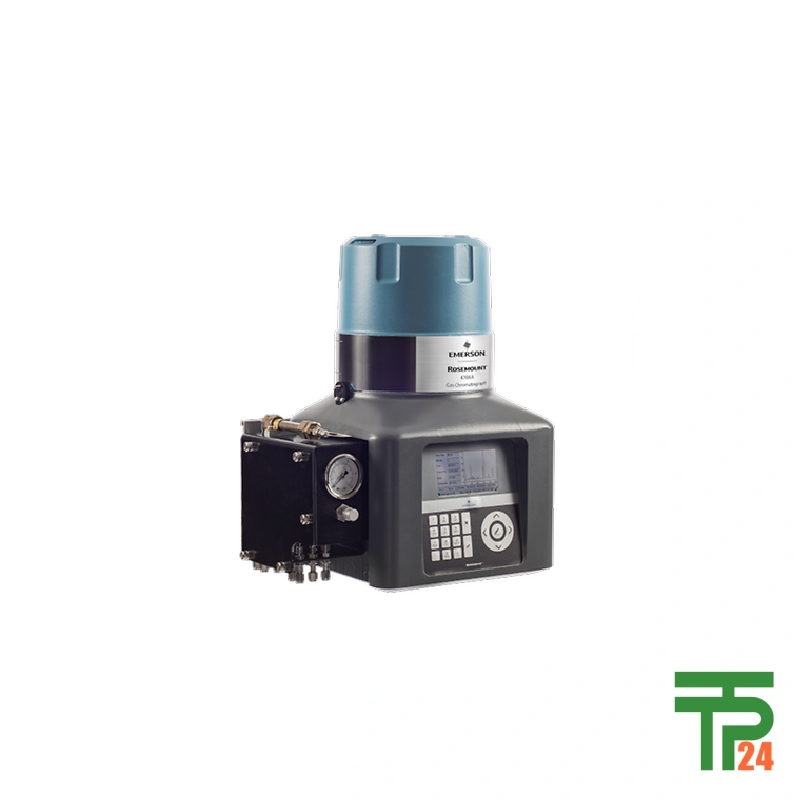

Rosemount™ 470XA Gas Chromatograph

Description

Rosemount™ 470XA Gas Chromatograph

Compact Chromatograph Designed For Precise Gas Analysis

The Rosemount™ 470XA Gas Chromatograph represents Emerson’s latest generation in compact process chromatography—a deliberately engineered balance between analytical precision and operational simplicity. Developed to simplify natural‑gas analysis for fiscal metering and custody‑transfer applications, this instrument ensures compliant energy‑content measurement without requiring a separate shelter, making it ideal for unmanned or space‑restricted installations. The 470XA builds upon the proven heritage of the 770XA oven design, offering accurate C6+ BTU and Calorific Value (CV) determinations that trace directly to ISO 6976, AGA 8 and GPA 2172 standards. Its isothermal, airless heat‑sink oven provides superior thermal stability for consistent chromatographic separation, while the maintainable‑module architecture ensures rapid serviceability in the field. This combination of analytical integrity and economic design positions the 470XA as a benchmark solution for operators seeking a leaner path to full regulatory compliance and measurement traceability without compromising data quality.

Engineering Efficiency Through Economical Power Consumption

Energy efficiency is one of the most significant advantages offered by the Rosemount 470XA. Its low‑power design consumes approximately 55 Watts at startup and less than 25 Watts steady‑state, requiring only a 24 V DC line supply (21–30 V DC). This power profile makes it exceptionally suitable for remote pipeline installations, compressor stations, and onshore LNG feed points where utility access may be limited. The heat‑sink oven operates without air circulation, reducing moving parts and the need for forced ventilation systems normally associated with larger process chromatographs. By minimizing electrical load and calibration gas consumption, the 470XA achieves a lower total cost of ownership than any previous generation chromatograph of similar capacity. Optional Cal‑Gas Saver™ automation routine reduces carrier‑gas usage during validation cycles, saving operating expenses and extending cylinder life. Emerson’s focus on environmental sustainability and cost reduction is reflected in this design, providing industries a technological solution that aligns efficiency with performance stability over extended operating periods.

Rugged Construction For Harsh Field Environments

Every element of the Rosemount 470XA’s physical layout is engineered for durability and ease of installation. It supports multiple mounting options—pole (4‑inch standard), wall, bench, or floor stand—depending on site geometry and operator access. Compact dimensions of 460 mm height × 356 mm width × 280 mm depth (18 in. × 14 in. × 11 in.) and a weight of 22 kg (50 lbs.) make it one of the smallest industrial‑grade chromatographs available. Its IP65 rated Type 4X enclosure ensures protection against dust, moisture, and corrosive atmospheres. Explosion‑proof certifications include CSA Class I, Zone 1, Division 1 Groups B, C, and D as well as ATEX/IECEx Ex d IIB + H₂ T6 Gb, confirming compliance for flammable gas environments. The instrument’s ambient temperature rating from –20 °C to +60 °C allows dependable service in both arctic and desert climates. Operators benefit from the elimination of external shelters for most conditions, reducing structure costs and footprint while preserving instrument integrity under supervisory control of local or remote interfaces.

Advanced Interface And Simplified Operator Interaction

Ease of use is core to the 470XA’s operational concept. A full‑color LCD Local Operator Interface (LOI) presents real‑time chromatograms, diagnostics, and status information in an intuitive format. Built‑in software assistants guide technicians through common procedures such as module replacement, calibration gas switching, and auto‑valve timing adjustment. Remote maintenance and data access are available through Emerson’s Rosemount MON2020 software suite, enabling control engineers to configure analysis cycles, evaluate chromatograms, and validate performance metrics from control rooms or cloud‑connected servers. This interoperability reduces specialized training requirements while ensuring full traceability of all measured values to international energy‑measurement standards. Intelligent alarms within the software notify operators of carrier pressure fluctuations or sample valve routine deviations—helping proactive maintenance and optimal instrument uptime. Through the combination of hardware and digital accessibility, the 470XA transforms natural‑gas chromatographic measurement into a manageable, transparent, and cost‑effective process.

Dedicated Applications Across Natural And Renewable Gas Markets

The Rosemount 470XA is purpose‑built for core energy‑sector and emerging renewable applications requiring dependable gas‑composition knowledge. Its principal industry uses include custody‑transfer and fiscal metering for natural‑gas pipelines—guaranteeing accurate billing based on heating value calculations. In power generation, the 470XA monitors fuel BTU content for combustion optimization in turbines and boilers, reducing emissions and improving overall heat‑rate efficiency. Petrochemical plants utilize the analyzer for feed‑gas purity validation prior to steam‑cracker input, safeguarding catalyst life and reaction stability. In the rapidly developing renewable natural gas and biomethane markets, operators use its flexible gas path configuration for C6+ and hydrogen content monitoring to certify green gas quality. Its ability to operate without a dedicated analyzer shelter makes it the preferred solution for distributed biogas and hydrogen facilities requiring low infrastructure investment. Across these fields, its rapid‑cycle analysis delivers repeatable results for continuous process control and regulatory reporting, demonstrating versatility beyond traditional natural‑gas applications.

Analytical Repeatability Traceable To Global Standards

Precision in natural‑gas measurement is defined by repeatability and traceability, and the Rosemount 470XA excels in both. With measurement repeatability of ± 0.0125 % calorific value or ± 0.125 BTU/scf per 1,000 BTU/scf under controlled conditions, the chromatograph delivers exceptional consistency across measurement cycles. The analyzer complies with calculation methods established by the International Organization for Standardization (ISO) 6976, American Gas Association (AGA) 8, and Gas Processors Association (GPA) 2172, referencing the physical properties table of GPA 2145 for hydrocarbon calculations. This traceability creates a direct auditable link between field data and energy commercialization records required for custody‑transfer verification. By combining accurate sample‑valve timing and thermal stability within the airless oven, the 470XA ensures stable peak resolution for C1–C9+ hydrocarbons, including impurity identification that affects energy quality and safety. Operators in LNG terminals and gas‑distribution networks rely on these consistent results as the foundation for international trade of natural and renewable gas.
