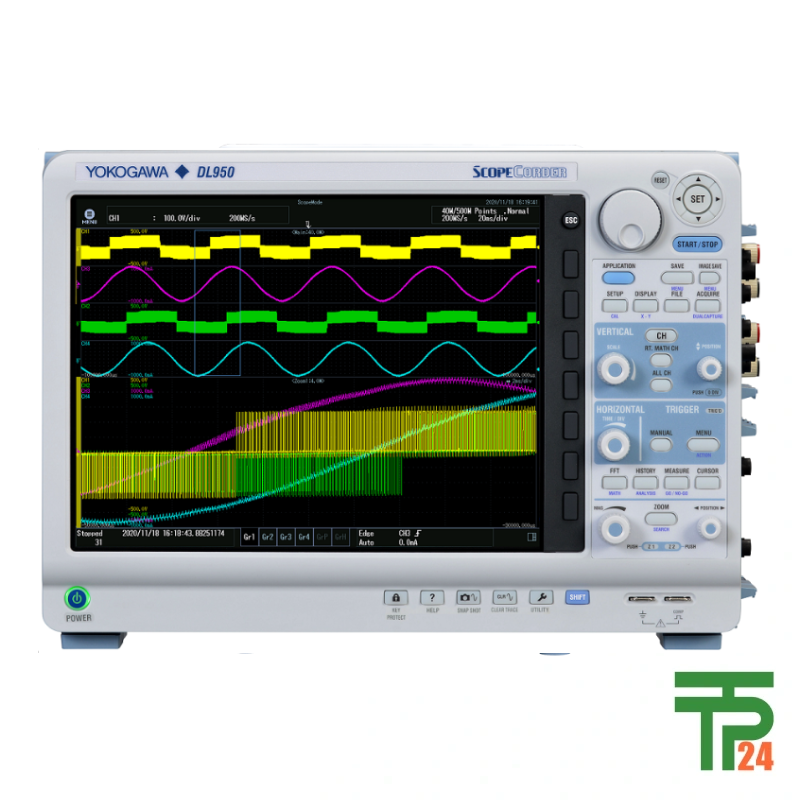

Yokogawa DL950 Modular Oscilloscope and Data Acquisition

Description

Yokogawa DL950 Redefines High-Speed Data Acquisition Fidelity

The Yokogawa DL950 ScopeCorder stands at the apex of portable yet high-performance data acquisition systems, engineered to bridge the critical gap between time-domain analysis and deep historical trending. Its unparalleled architecture allows engineers to simultaneously investigate microsecond-scale transient events alongside hours of operational data logging, a capability essential for modern complex systems. Unlike standard oscilloscopes limited by shallow memory, or slower data loggers incapable of resolving fast dynamics, the DL950 utilizes a massive 8 G points acquisition memory depth, ensuring that even captures triggered by rare, high-frequency anomalies are fully retained for post-analysis. This dual-domain capability makes the DL950 indispensable across industries where the integrity of both the impulse response and the long-term stability must be guaranteed. Furthermore, its superior 16-bit analog resolution provides four times the vertical detail of traditional 12-bit systems, revealing subtle signal variations and noise components previously masked, thereby accelerating root cause analysis in challenging environments where every microvolt matters.

Exploring Diverse Applications in Electromechanical Systems Now

The core value proposition of the DL950 is its ability to perform comprehensive diagnostics across sprawling electromechanical systems development and troubleshooting. Consider the complexity of modern variable speed drives (VSDs) or electric vehicle (EV) powertrains; these systems involve rapid switching components (IGBTs, MOSFETs) generating significant high-frequency noise superimposed on large DC buses. The DL950 excels here by offering the necessary speed and isolation. Specifically, when analyzing inverter switching waveforms, the instrument’s high sample rate, capable of capturing events at 200 MS/s, resolves the sharp $dV/dt$ edges critical for assessing gate drive integrity and parasitic inductance effects. Simultaneously, its deep memory captures the entire switching cycle sequence over time, preventing trigger loss. For debugging power supplies, the DL950 effectively isolates and captures fast noises around power supplies, distinguishing actual component failure signatures from system-level coupling issues, all while maintaining the requisite measurement integrity across multiple input channels.

Integrating Advanced Modular Inputs For Ultimate Flexibility

A defining feature of the DL950 platform is its highly flexible modular input structure, supporting up to 8 input module slots. This physical expandability allows users to tailor the instrument precisely to the current test requirement, scaling from a compact four-channel analyzer to a comprehensive 80-channel monitoring station using synergistic expansion units. Crucially, Yokogawa has introduced groundbreaking measurement technology via modules like the new 200 MS/s 14 Bit Isolation Module. This module represents a significant leap, offering both a high-speed capture capability (200 MS/s) coupled with industry-leading isolation performance—1000V isolated input—and a substantial 40 MHz band for accurate high-voltage monitoring. This isolation capability is paramount when probing high-side switches or floating circuitry, preventing catastrophic damage to the instrument while ensuring precise capture of critical, fast-changing potential differences across these demanding circuits.

Achieving Unprecedented Channel Counts Through Synchronization

For facility-wide diagnostics, large-scale structural testing, or complex mechanical stress analysis involving numerous sensor points, the DL950 offers unmatched scalability through its multi-unit synchronization capability. The system can seamlessly link multiple DL950 mainframes together, allowing for the configuration of up to 160 synchronized channels. This distributed acquisition power maintains phase-coherent timing across all connected units, essential for precise spatial-temporal correlation of events happening across large apparatuses, such as monitoring vibration signatures across an entire bridge structure or tracking the energy flow across a complex industrial assembly line. Synchronization is maintained with microsecond accuracy, ensuring that data captured across diverse locations is temporally aligned, yielding a single, unified view of system behavior rather than disparate, hard-to-correlate measurements.

Leveraging High-Speed Connectivity for Data Throughput Management

Handling terabytes of captured data requires infrastructure capable of moving information rapidly off the acquisition platform. The DL950 addresses this need with integrated, cutting-edge connectivity, featuring native support for 10 Gbps Ethernet. This extremely high-speed data transfer rate dramatically reduces the time spent offloading large captured waveforms or transferring long-term trend logs from the instrument’s internal storage to external servers or analysis workstations. In high-throughput environments where tests run continuously, minimizing transfer latency is key to maximizing instrument uptime and accelerating the design iteration cycle. This robust networking capability also supports remote control and monitoring protocols, allowing expert analysis to be performed geographically distant from the test site without compromising data integrity or speed.

Discover Authentic Yokogawa Quality Exclusively At tpt24

For engineers worldwide demanding guaranteed authenticity and immediate access to the revolutionary DL950 ScopeCorder, look no further than tpt24. We proudly present tpt24 as the world’s premier global source for this cutting-edge instrument. Our commitment is unwavering: every DL950 purchased through our platform guarantees product authenticity, sourced directly or through verified channels, ensuring you receive the superior quality and reliability Yokogawa is renowned for. tpt24 manages the complex logistics of international distribution, offering secure, worldwide delivery to any country, regardless of destination. By streamlining the procurement process and backing every sale with expert support, tpt24 ensures your team receives the necessary diagnostic tools swiftly, allowing you to focus on innovation rather than supply chain uncertainty.

Deep Dive Analysis Capabilities Beyond Standard Measurement Tools

The integrated software suite of the DL950 transforms raw data into actionable insight. Beyond basic measurement functions, the system supports advanced analysis techniques critical for modern power electronics validation. This includes specialized filtering, spectral analysis (FFT), and user-definable equation editing, which can be applied directly to the captured waveforms, even across synchronized channels. The 16-bit resolution across the acquisition chain means that calculations performed, such as power integration or phase delay determination, are executed with minimal quantization error. For instance, calculating instantaneous power $P(t)) from simultaneous voltage (V(t)) and current (I(t)) captures maintains exceptional fidelity, a feature often compromised when using instruments with lower vertical resolution or when relying solely on external post-processing software alone.

Summary of Core Technical Capabilities Driving Performance

The Yokogawa DL950 is defined by its commitment to simultaneous high-speed capture, deep storage, and high-resolution measurement across numerous isolated channels. It is a true hybrid instrument designed to handle the complexity of next-generation testing challenges, from the nanosecond rise times of sensor outputs to the multi-day monitoring of energy consumption profiles. Its modularity and connectivity ensure it remains relevant and scalable within any evolving laboratory or field-testing environment, providing engineers with confidence in capturing the data that truly defines system performance and failure modes.
